Optional Connector (Remote Engine Start) Connector View (Remote Starting System)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

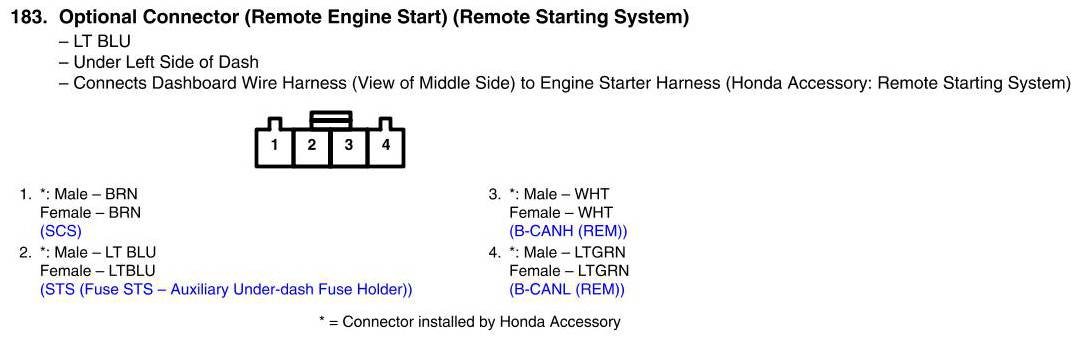

Optional Connector (Remote Engine Start) Connector View (Remote Starting System)
