Front Bulkhead Cover Replacement

Front Bulkhead Cover Replacement

NOTE:

- Take care not to scratch the front bumper or the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

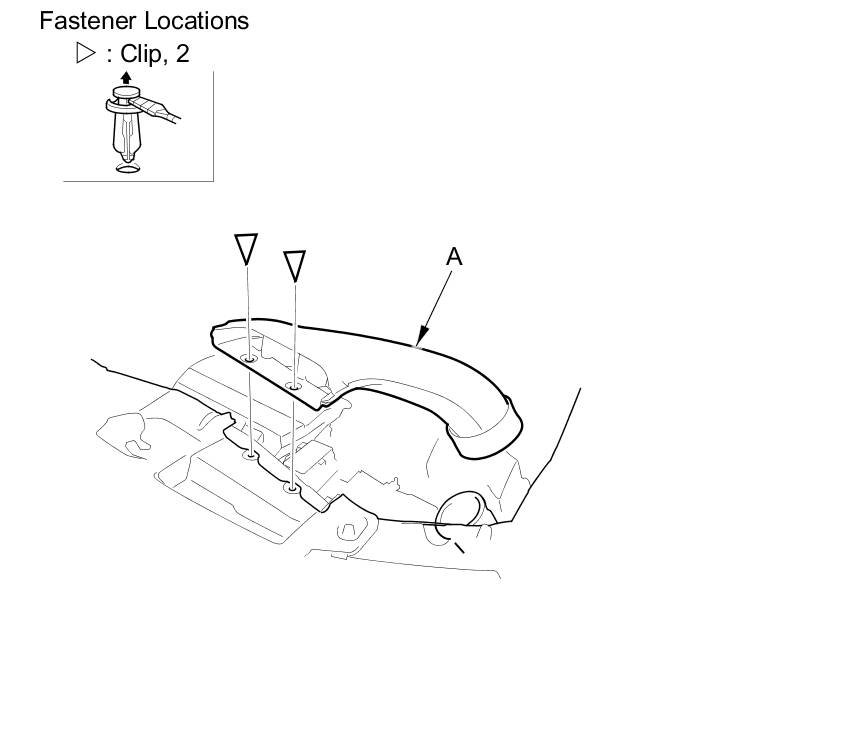

1. Remove the clips, then remove the air intake duct (A).

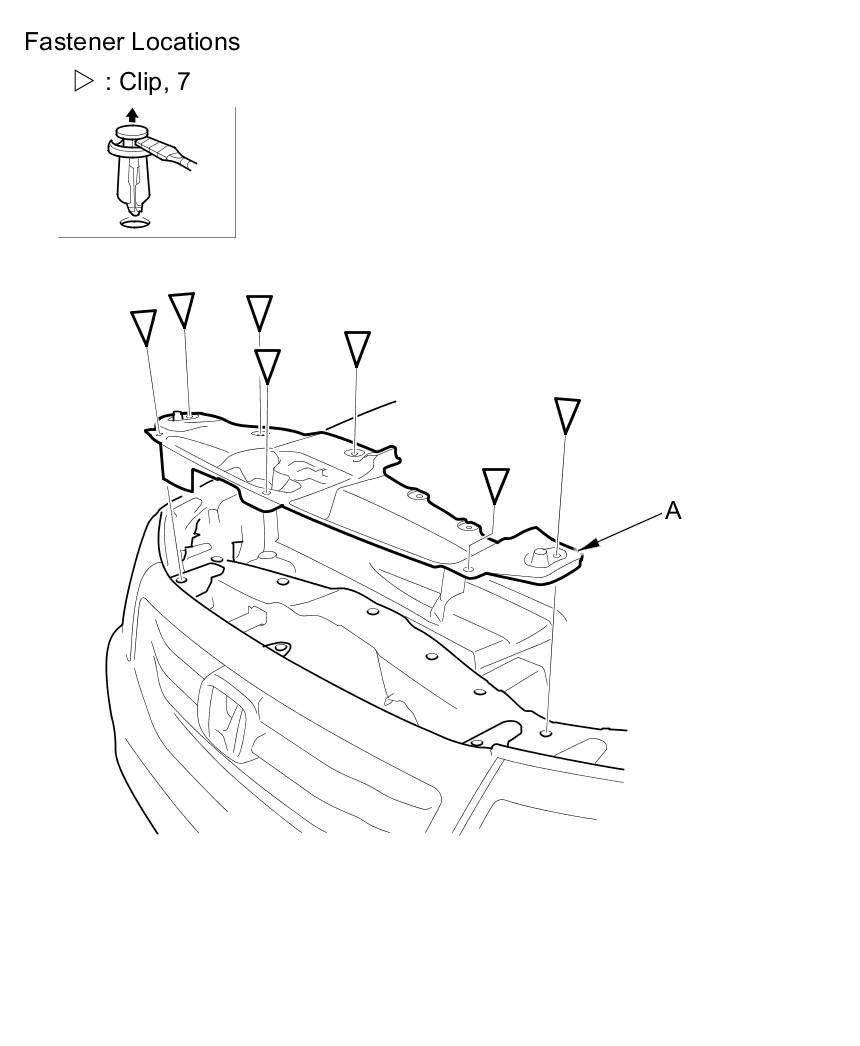

2. Remove the clips, then remove the front bulkhead cover (A).





3. Install the cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
