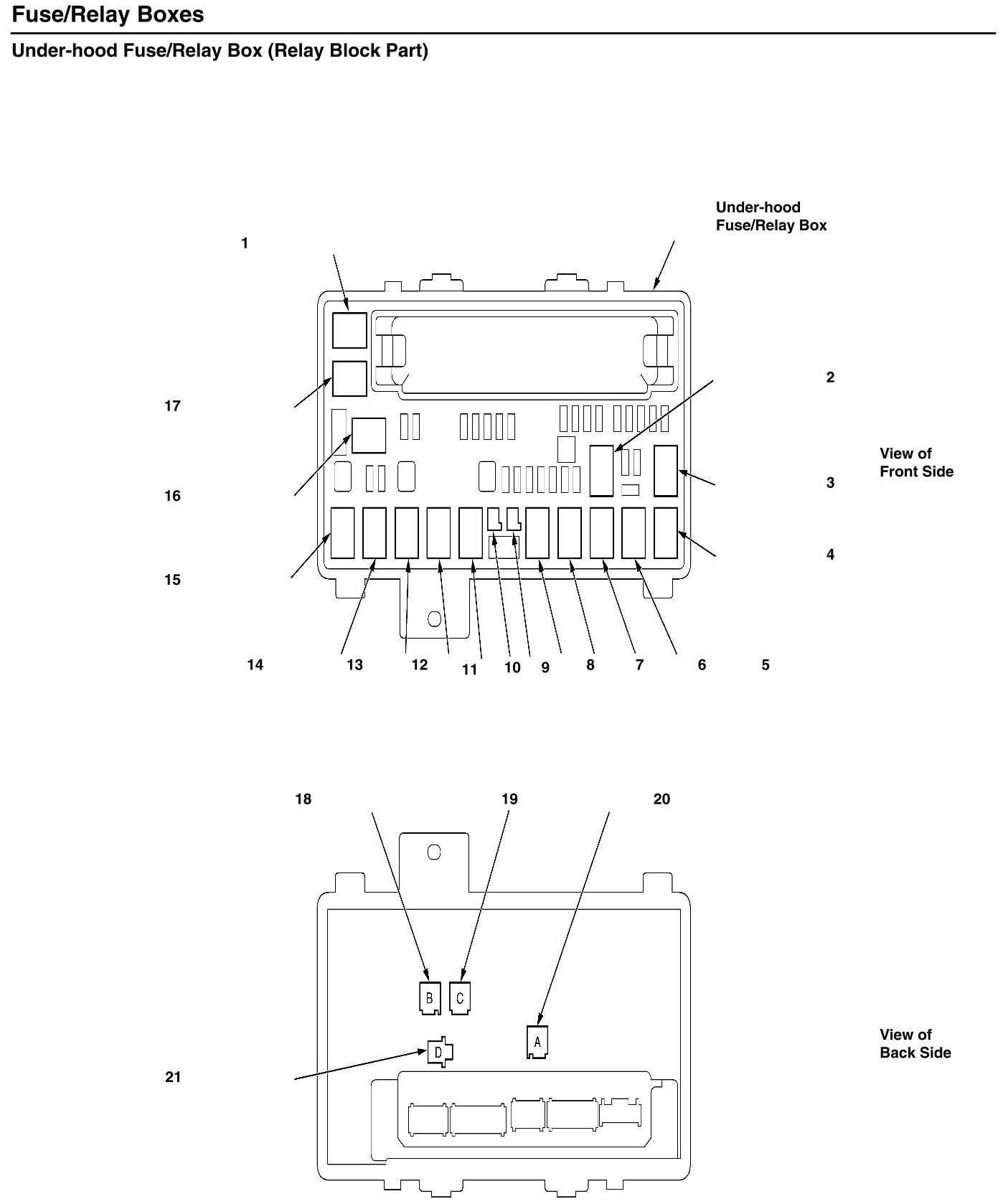

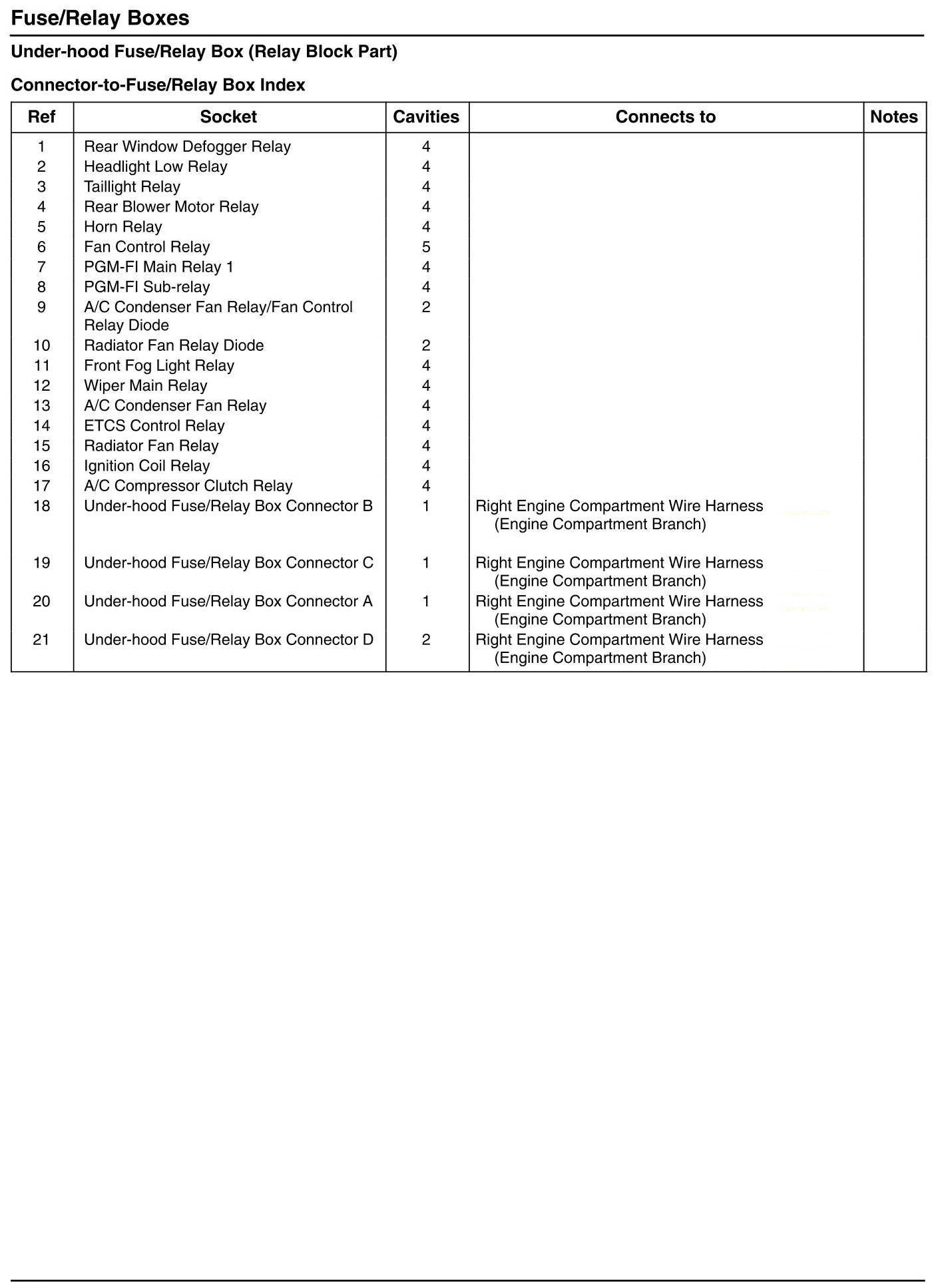

Under-Hood Fuse/Relay Box (Relay Block Part) - Connector-to-Fuse/Relay Box Index
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Under-Hood Fuse/Relay Box (Relay Block Part) - Connector-to-Fuse/Relay Box Index
