Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

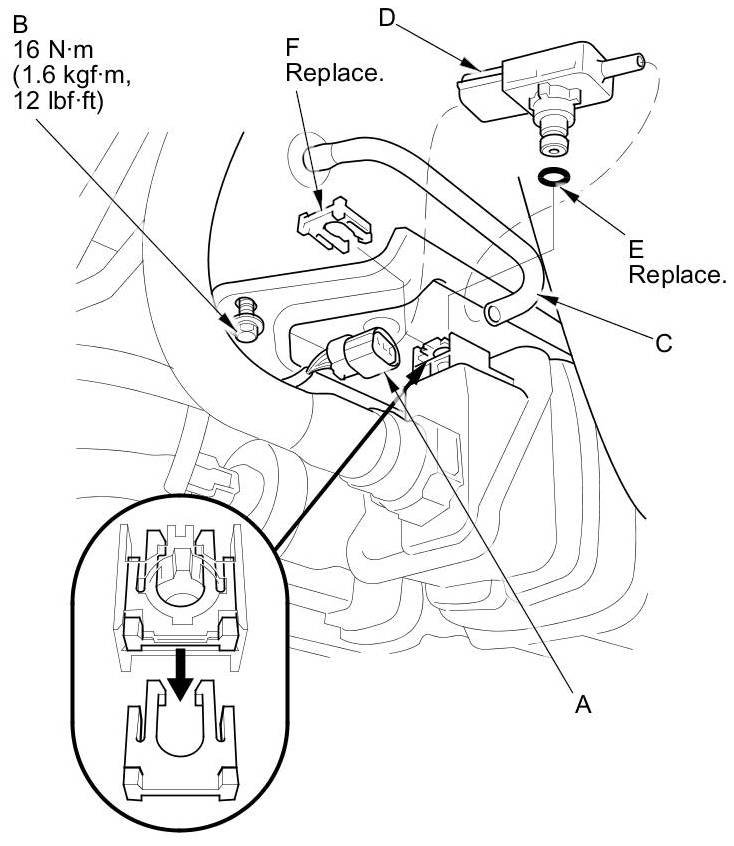

1. Remove the EVAP canister cover.

2. Disconnect the FTP sensor 3P connector (A), and loosen the bolt (B).

3. Disconnect the hose (C), and remove the FTP sensor (D).

4. Install the parts in the reverse order of removal with a new O-ring (E) and a new retainer (F).
