Fuse To Components Index

Fuse to Components Index

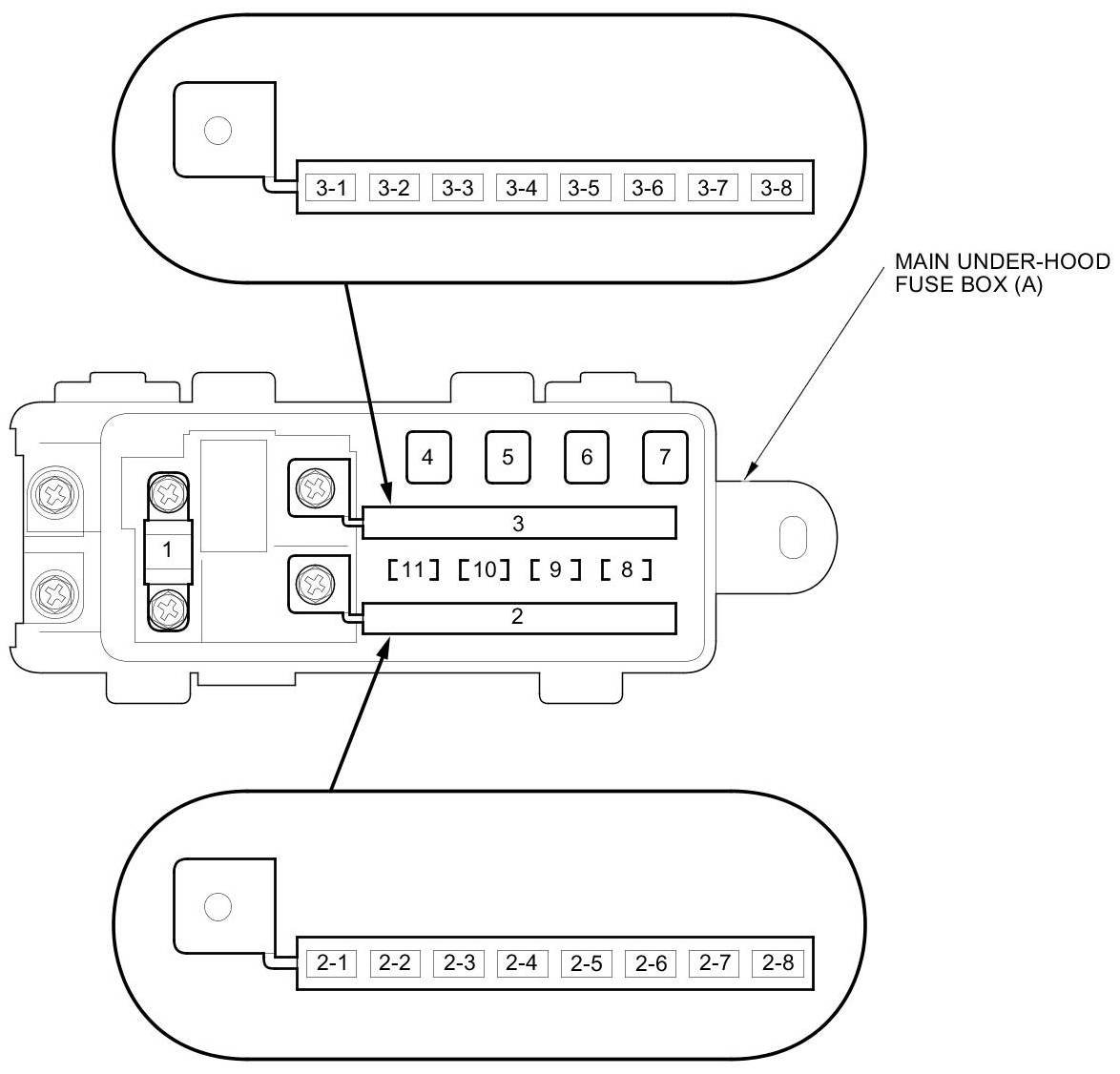

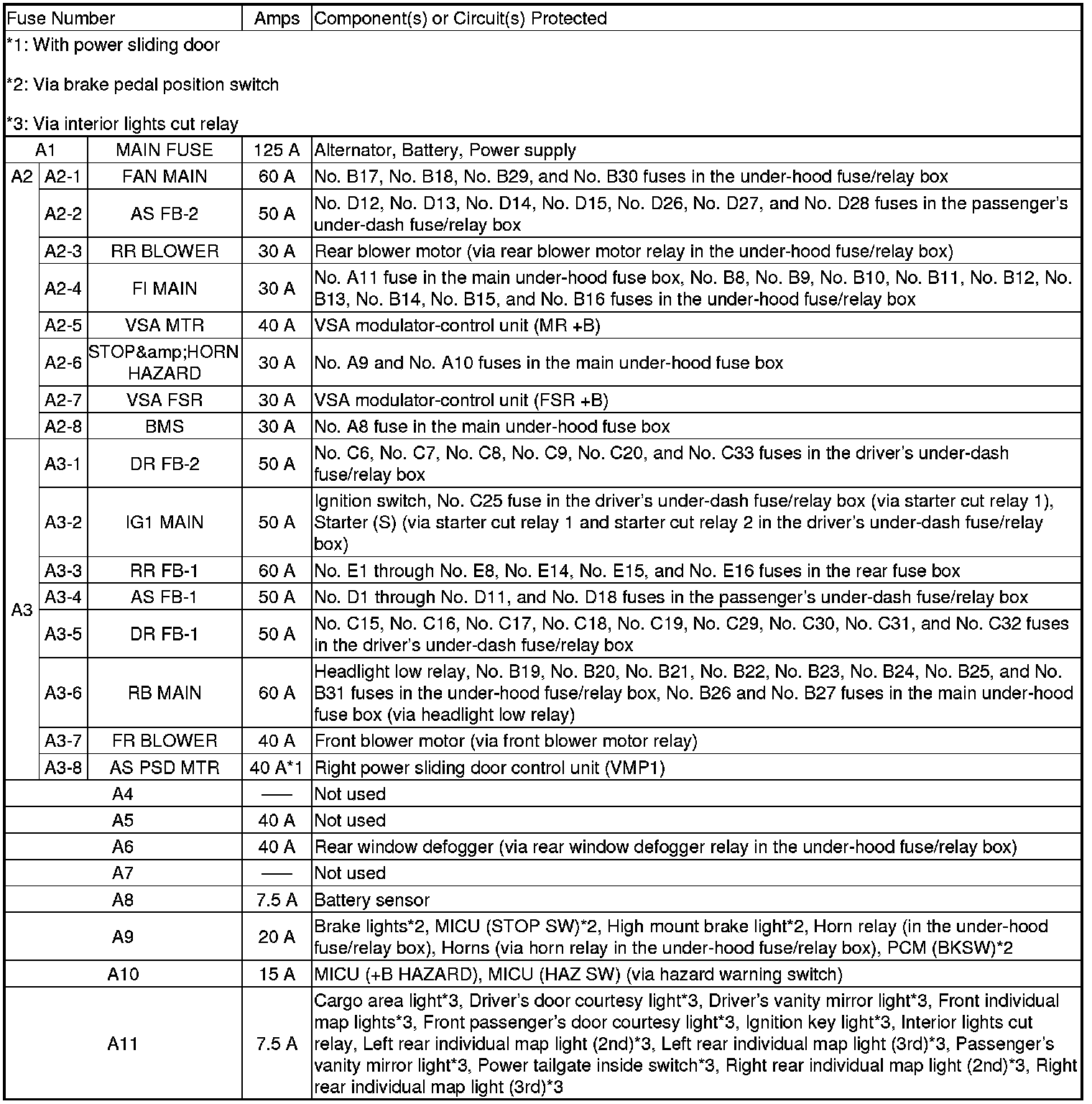

Main Under-Hood Fuse Box (A)

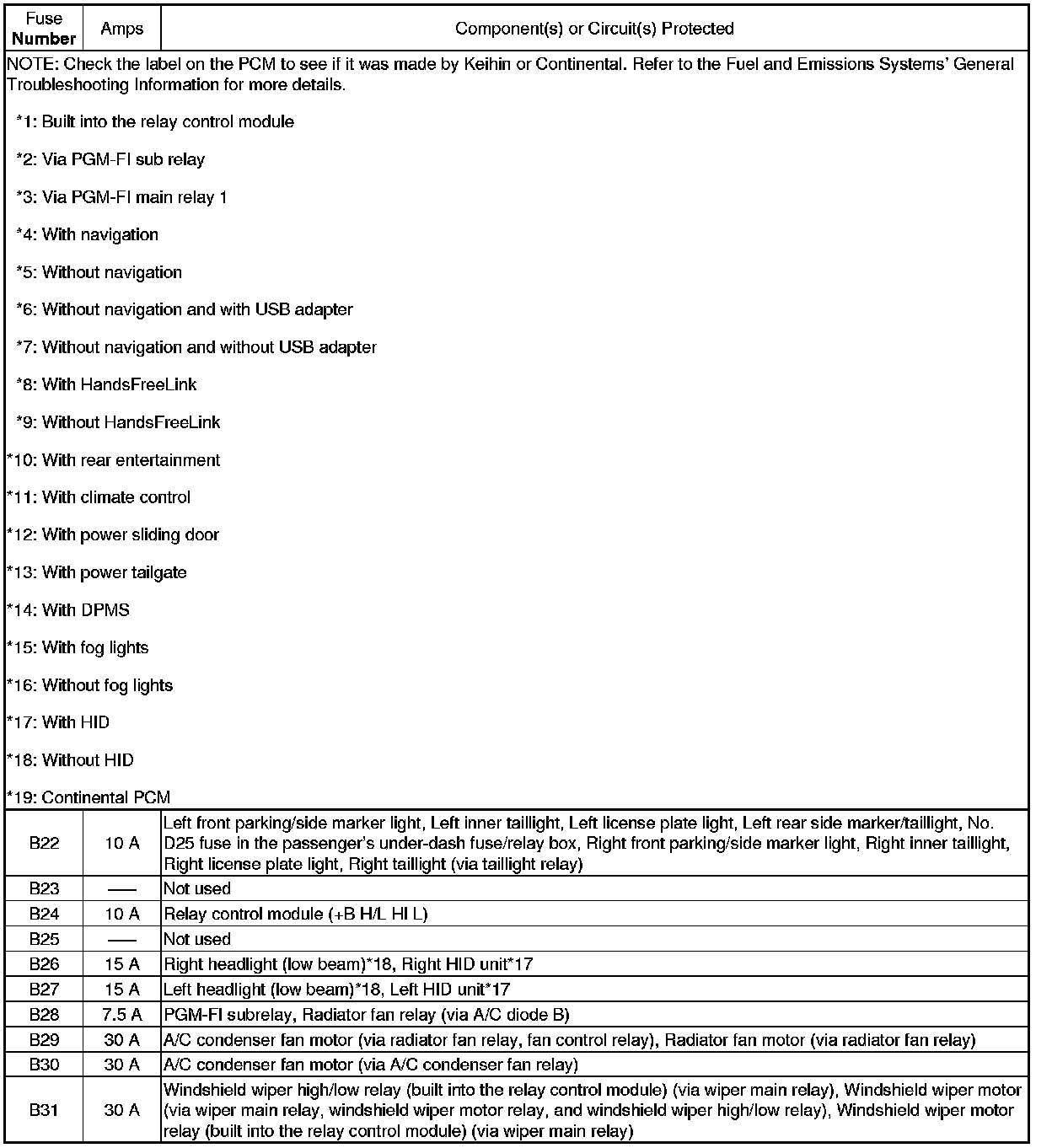

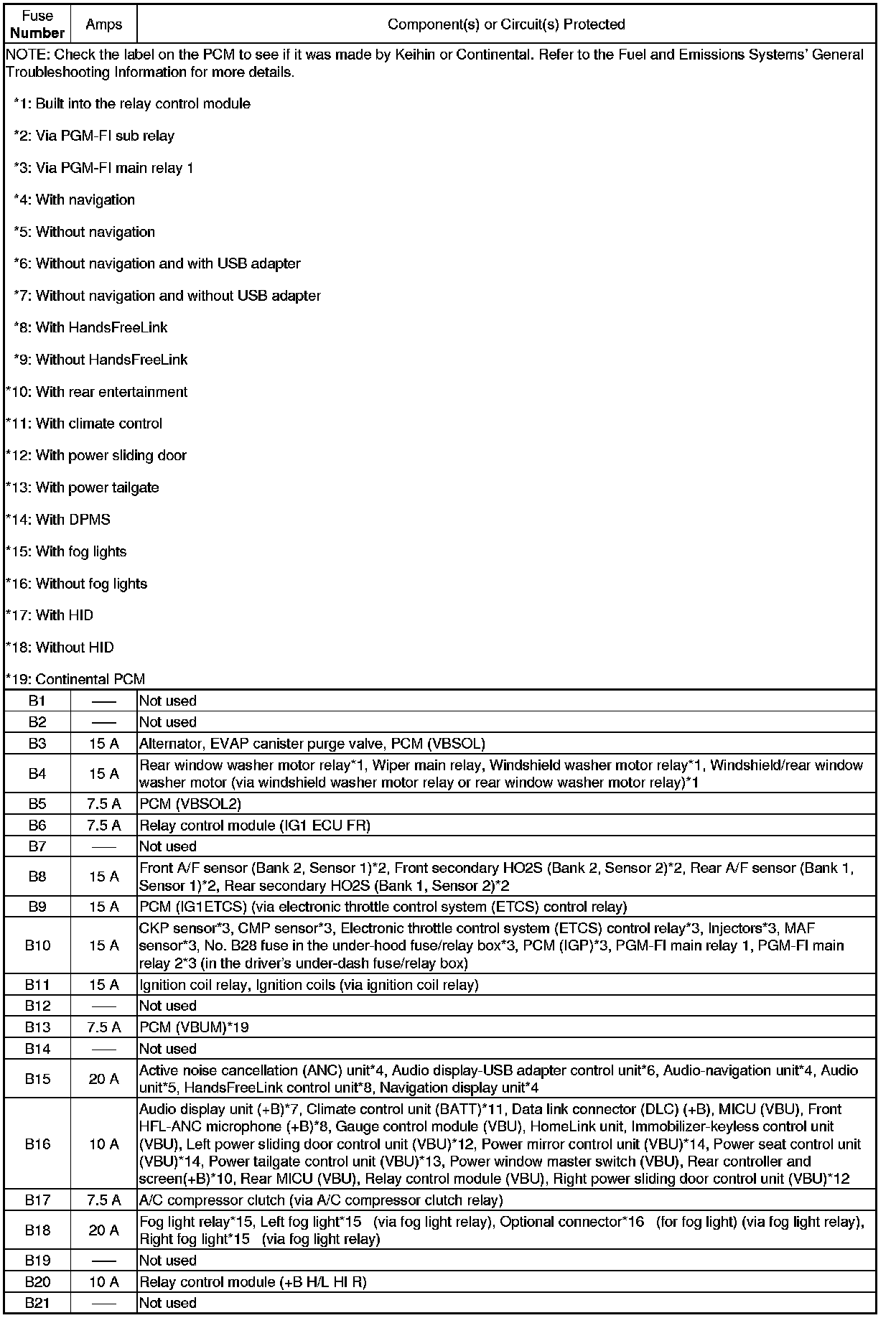

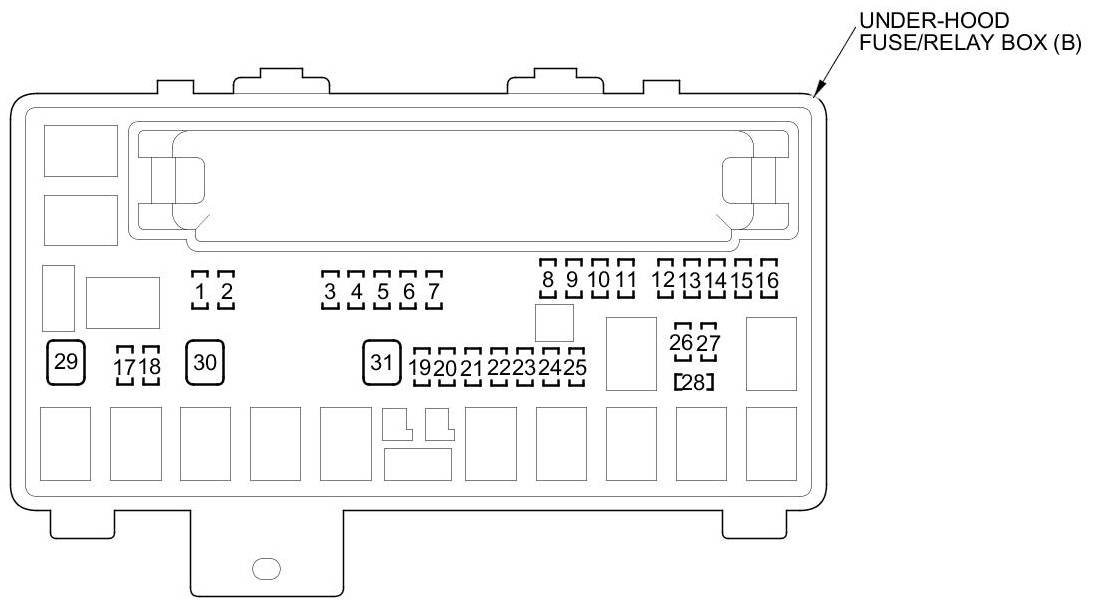

Under-Hood Fuse/Relay Box (B)

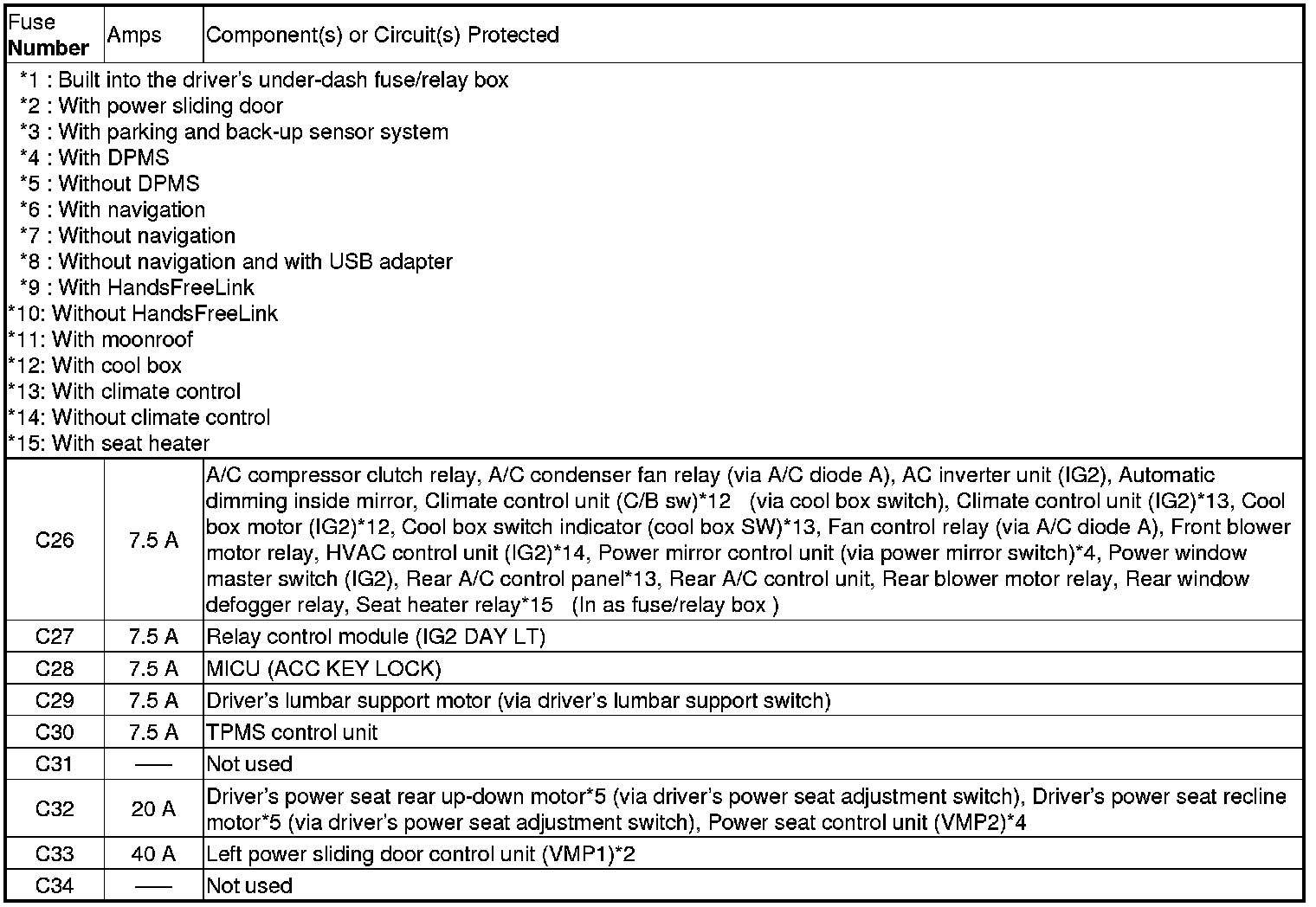

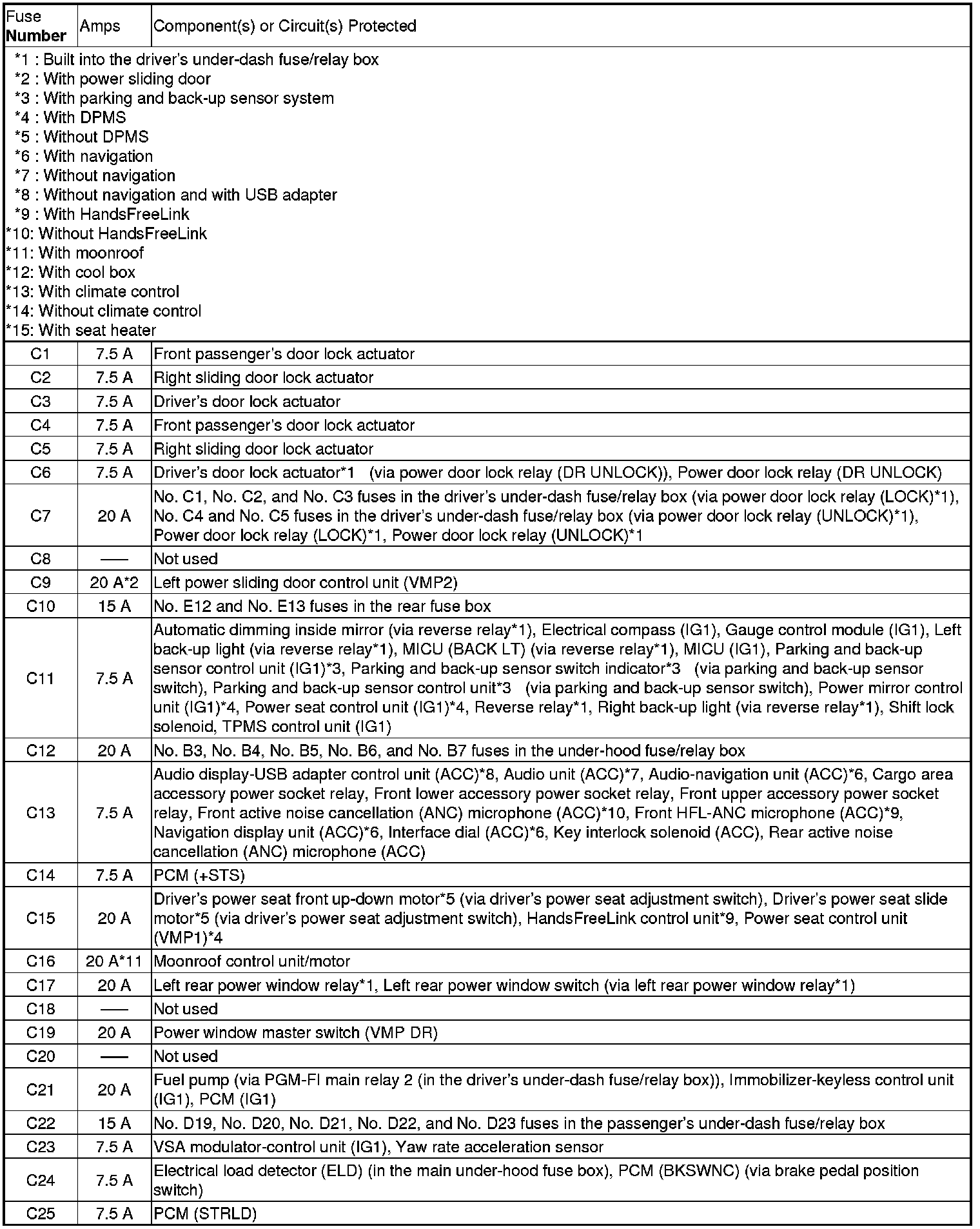

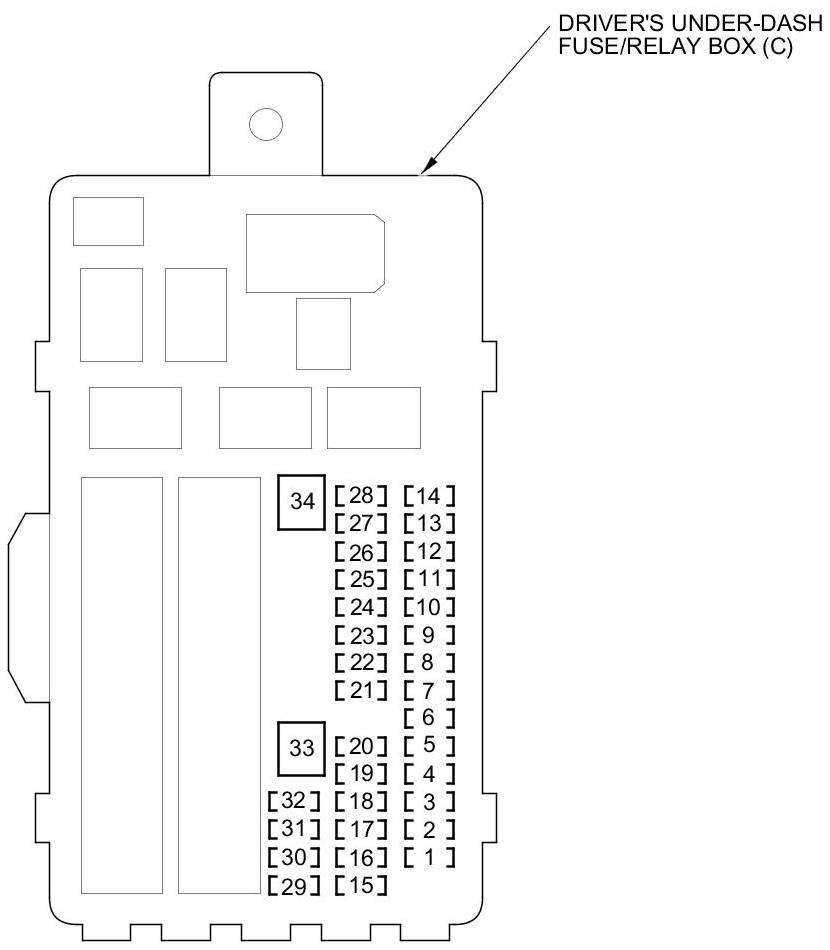

Driver's Under-Dash Fuse/Relay Box (C)

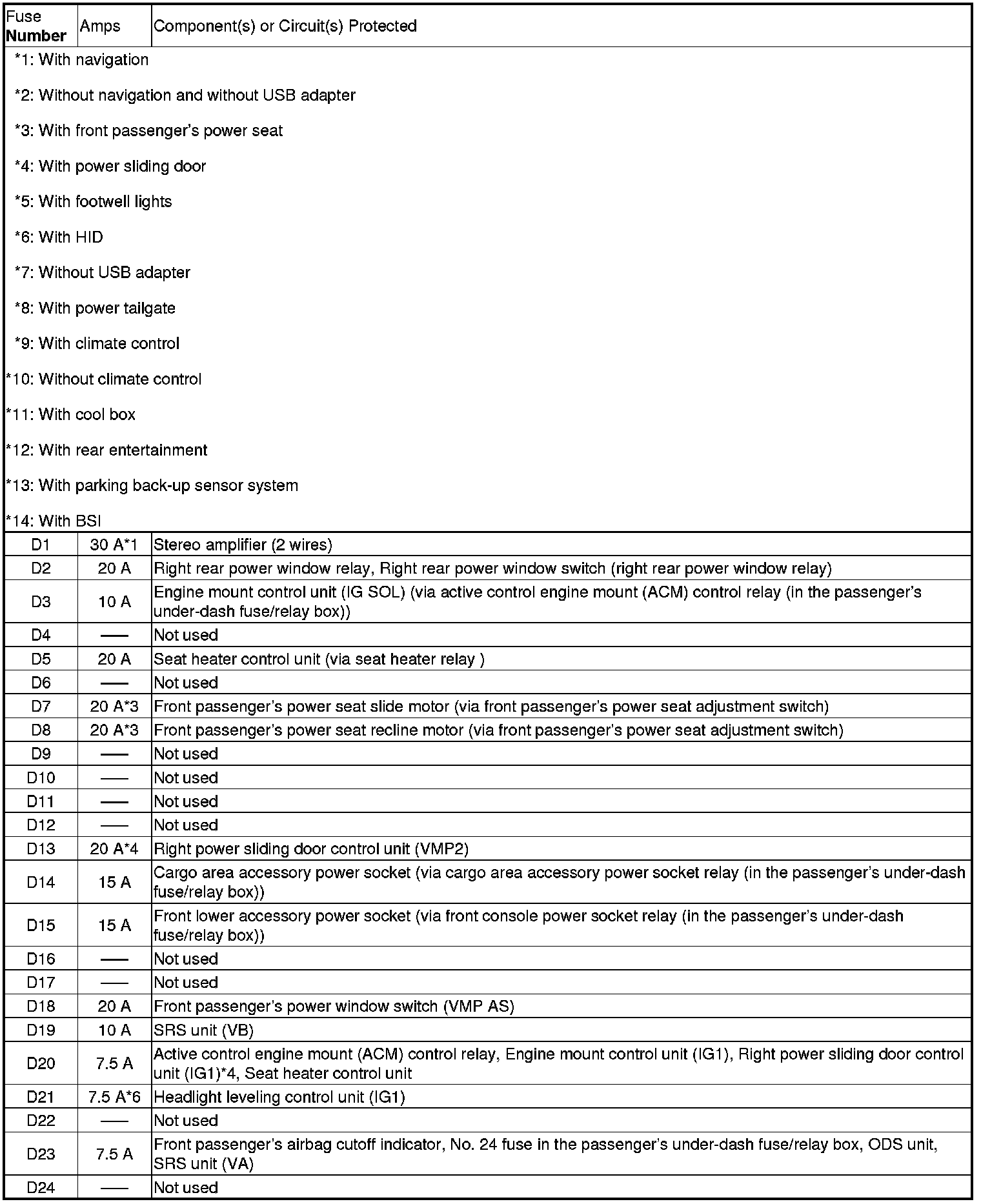

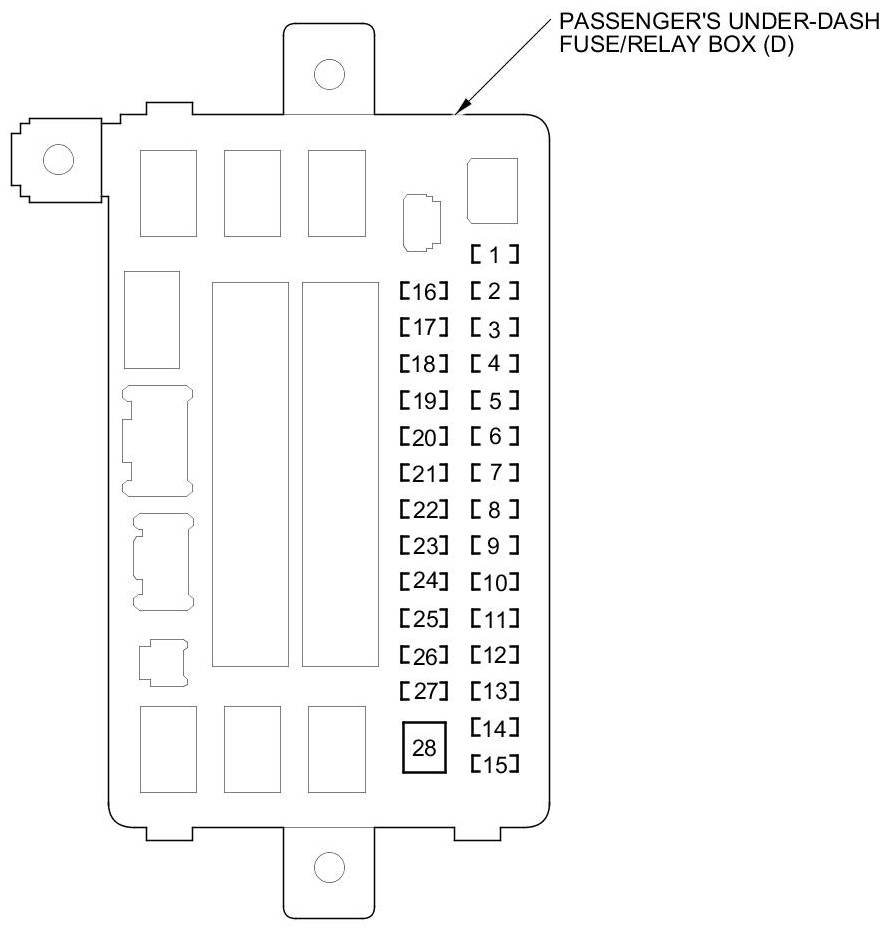

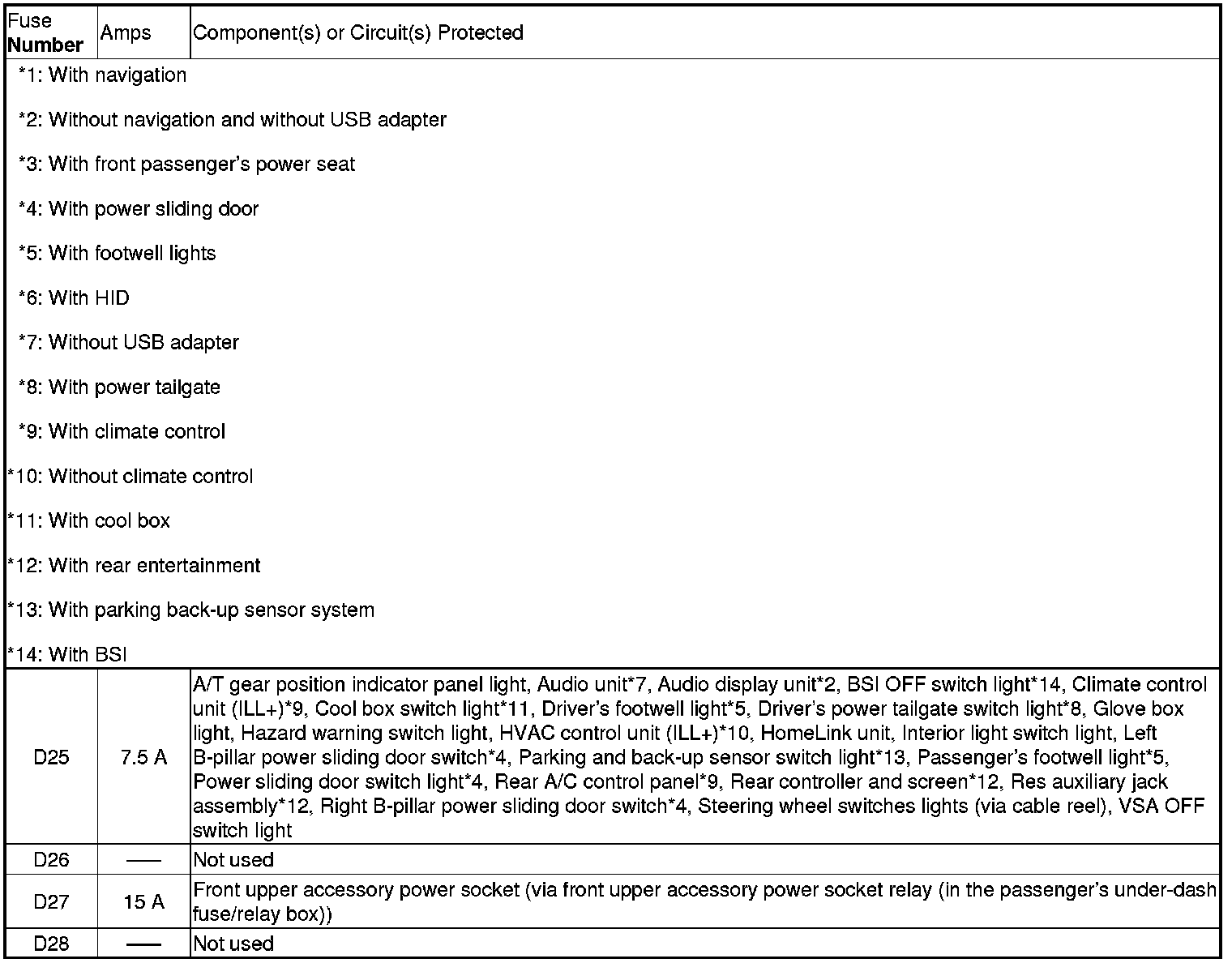

Passenger's Under-Dash Fuse/Relay Box (D)

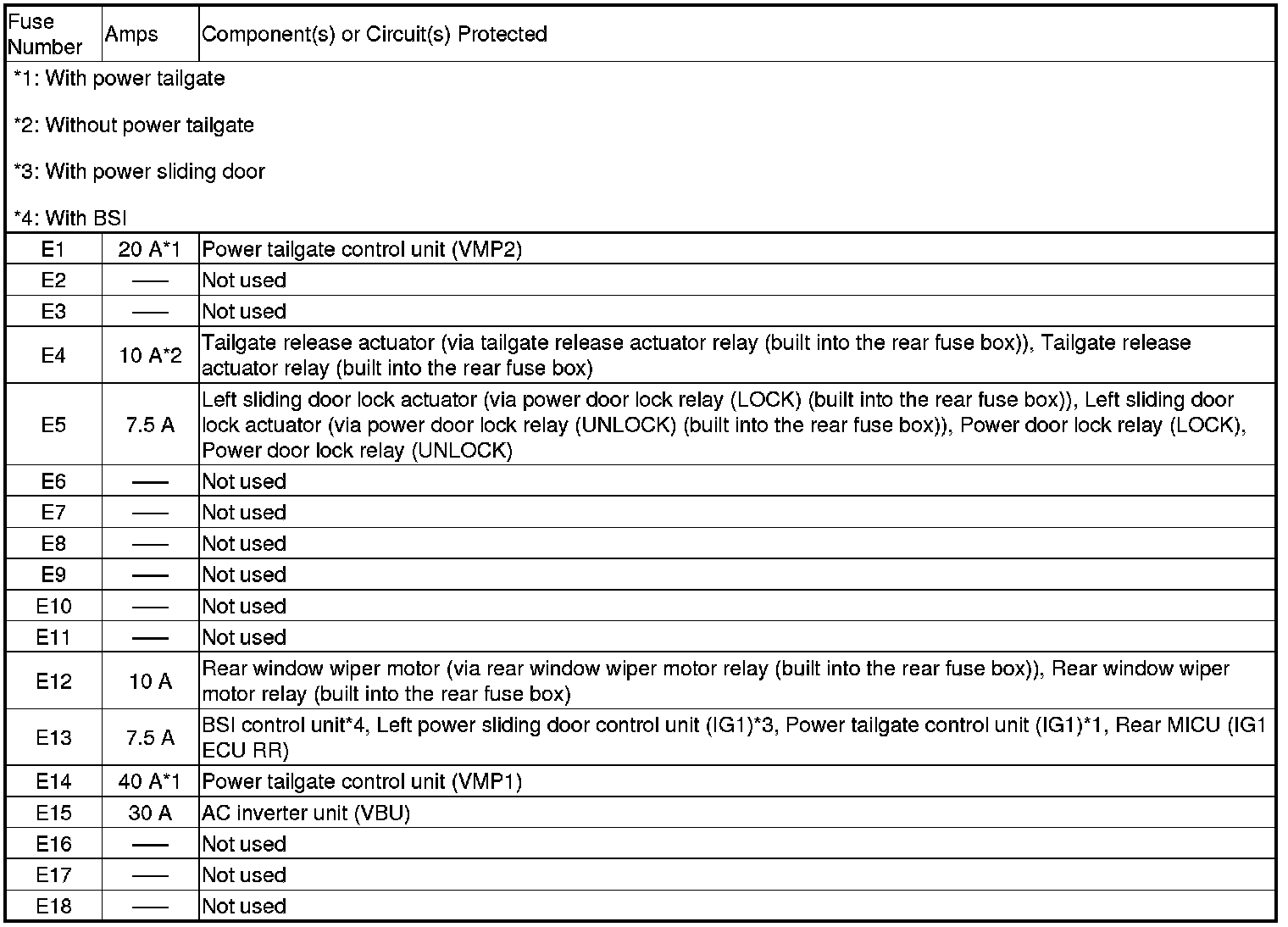

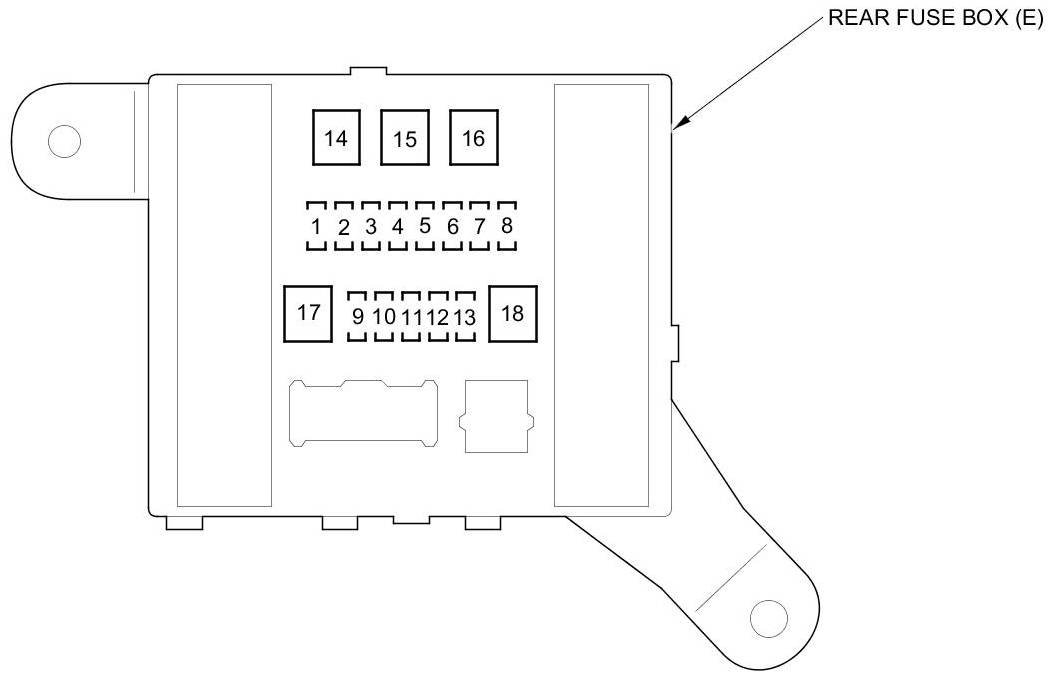

Rear Fuse Box (E)
