Hazard Warning Switch Test/Replacement

Hazard Warning Switch Test/Replacement

1. Remove the center panel Dashboard Center Panel Removal/Installation.

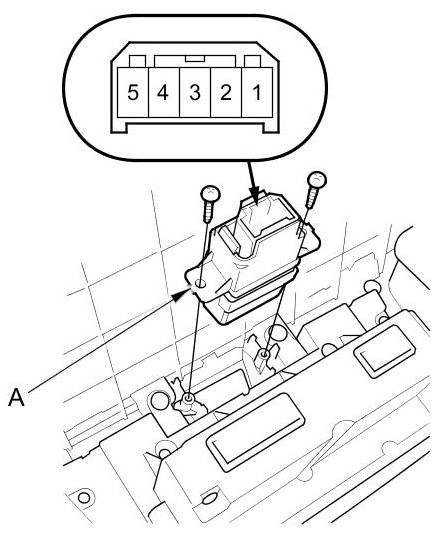

2. Remove the two screws and the hazard warning switch (A).

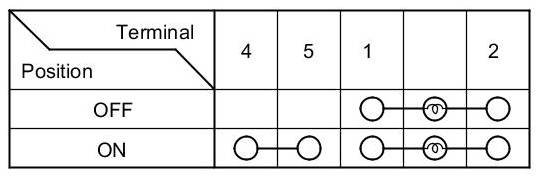

3. Check for continuity between the terminals in each switch position according to the table.

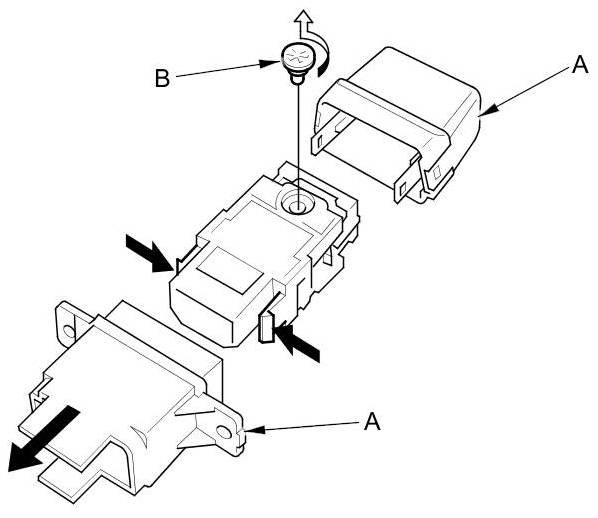

4. If the continuity is not as specified, remove the covers (A), then check the bulb (B). If the bulb is OK, replace the switch assembly.






5. Install the switch in the reverse order of removal.
