Solar Sensor: Service and Repair

Sunlight Sensor Replacement

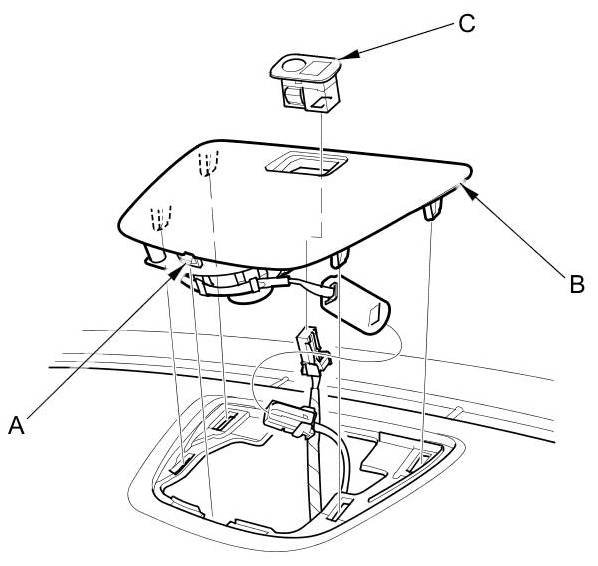

1. From the notch (A), carefully pry the front center speaker grille (B) out with a small screwdriver, then disconnect the connector(s). Be careful not to damage the front center speaker grille and the dashboard.

2. Remove the sunlight sensor (C) from the front center speaker grille.

3. Install the sensor in the reverse order of removal.
