Humidity Sensor: Service and Repair

Humidity/In-Car Temperature Sensor Replacement

1. Remove the center lower console Dashboard Center Lower Console Removal/Installation.

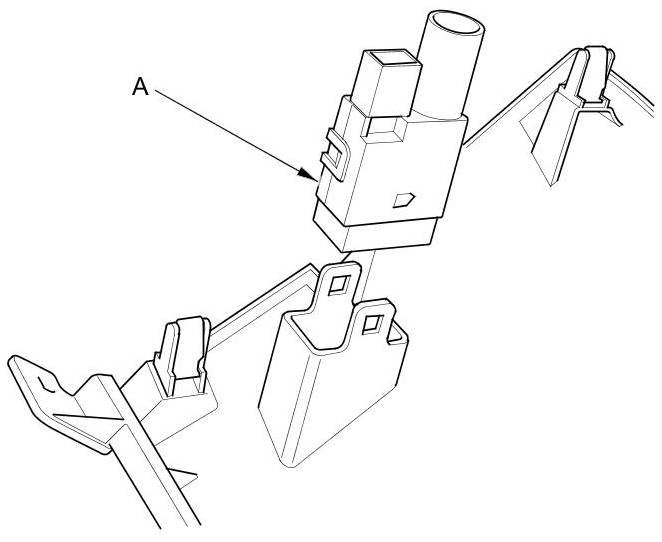

2. Remove the humidity/in-car temperature sensor (A) from the center lower console.

3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
