Home >> Honda >> 2012 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Blind Spot Module >> Left BSI Radar Unit Connector View (BSI System)

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

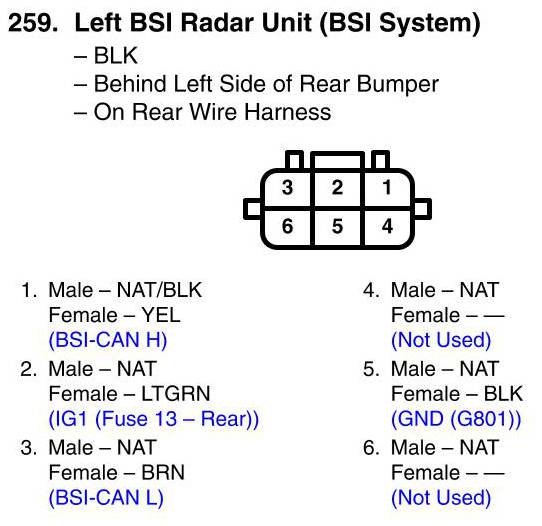

Left BSI Radar Unit Connector View (BSI System)
