HandsFreeLink Control Unit Connector End View (HFL System) (View 357)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

GRY
Under Middle of Dash
On Audio Wire Harness

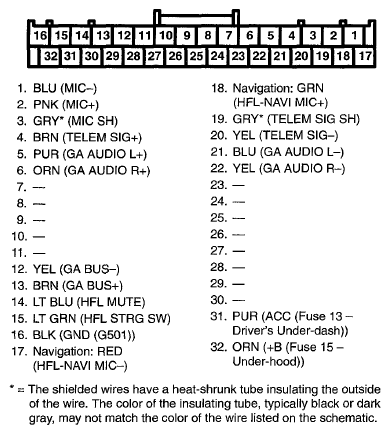

Fig 1: HandsFreeLink Control Unit (HFL System) Connector Terminals (View 357)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
