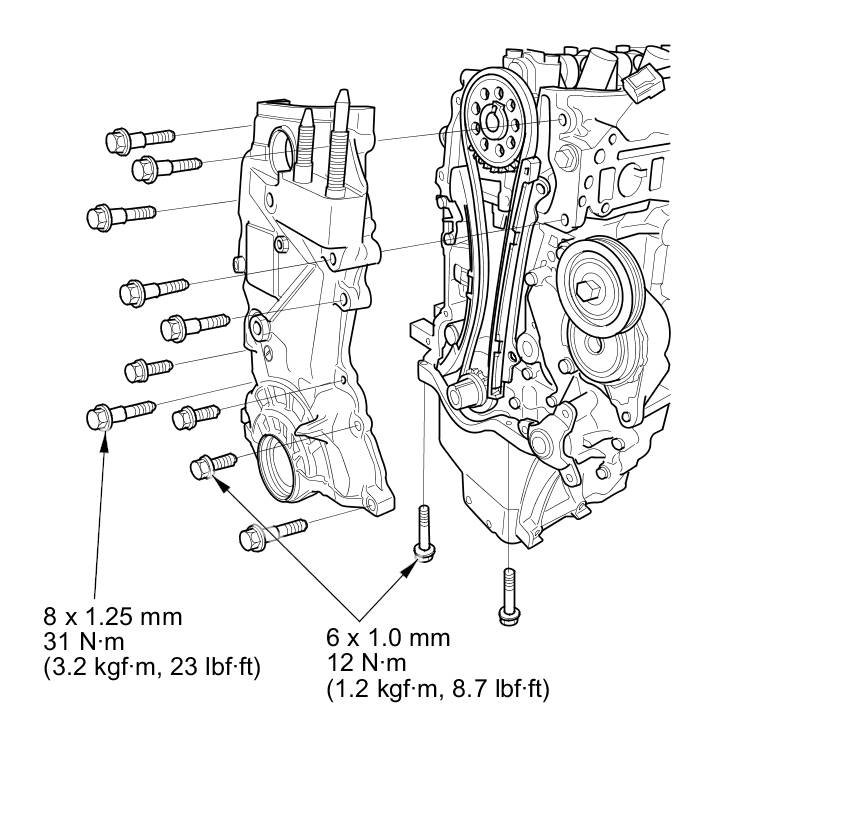

Timing Cover




Tighten the chain case mounting bolts. Wipe off the excess liquid gasket from the oil pan and the chain case mating area.
