Fuse To Components Index




Fuse to Components Index

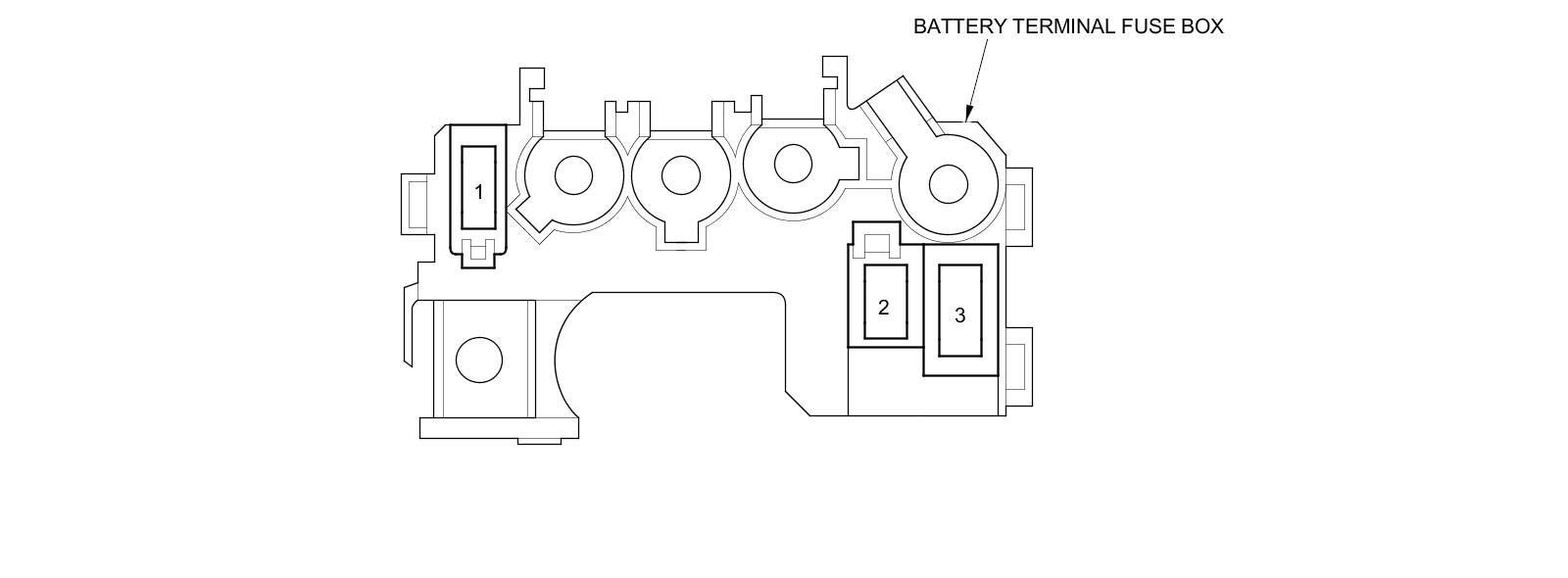

Battery Terminal Fuse Box

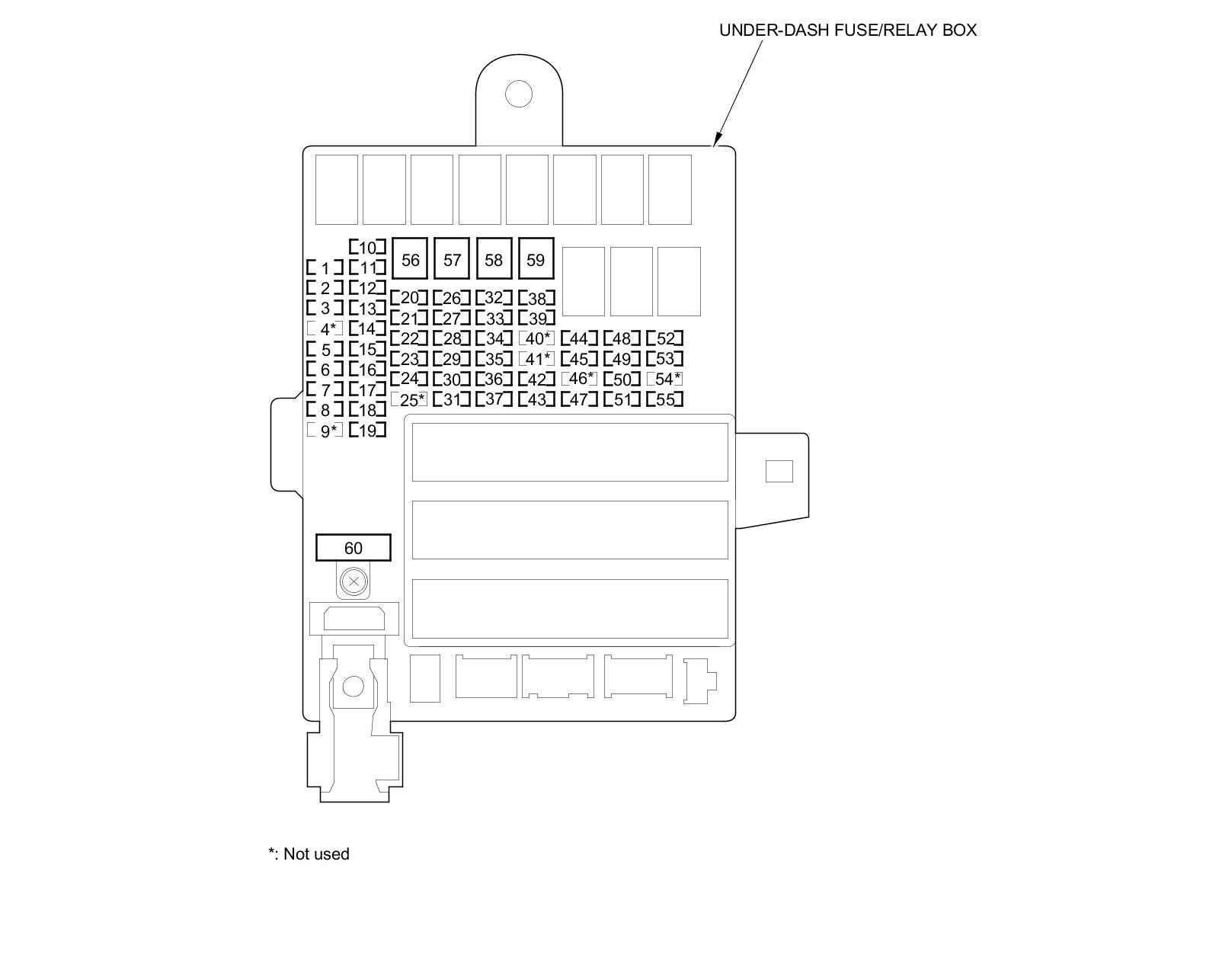

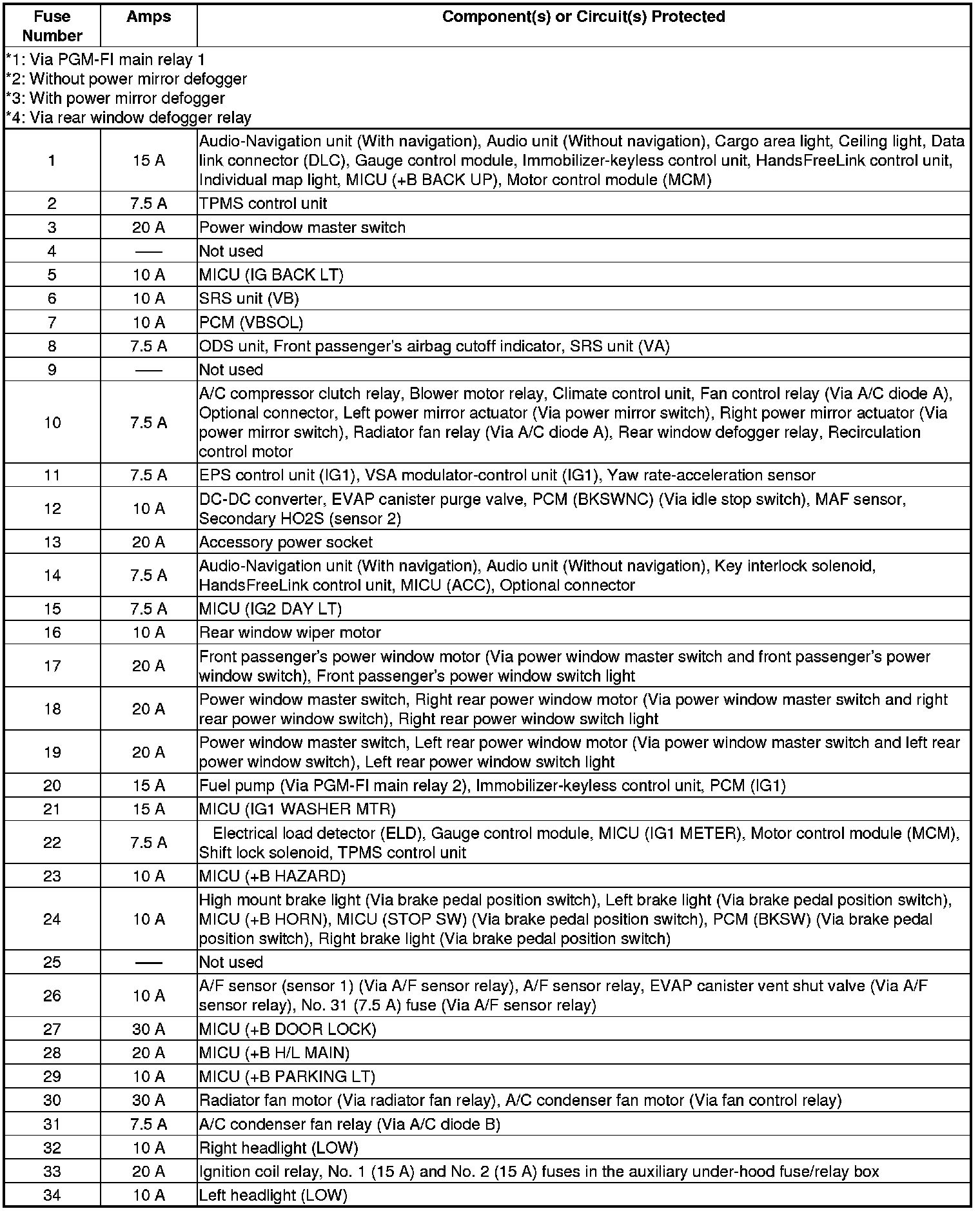

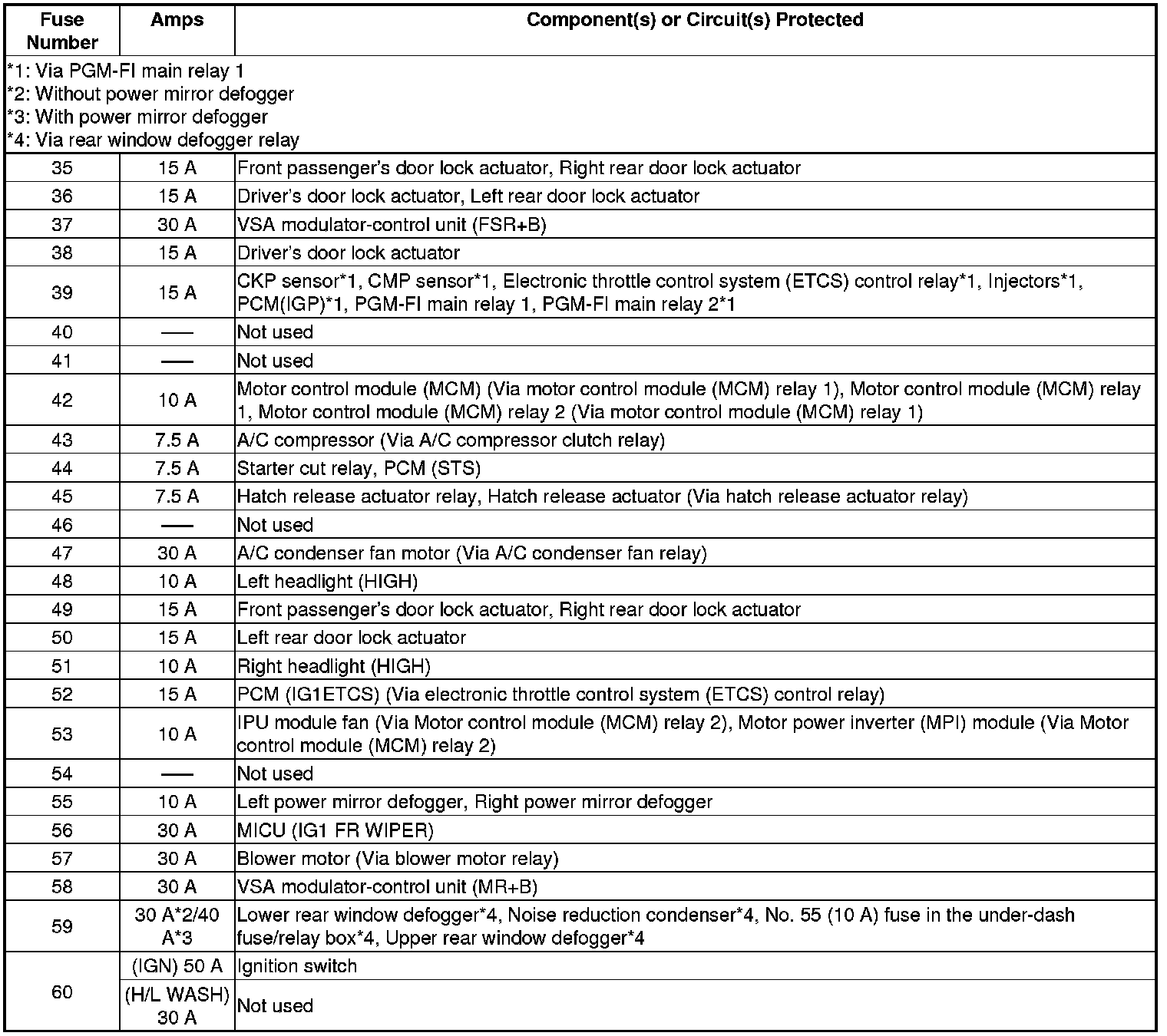

Under-dash fuse/relay box

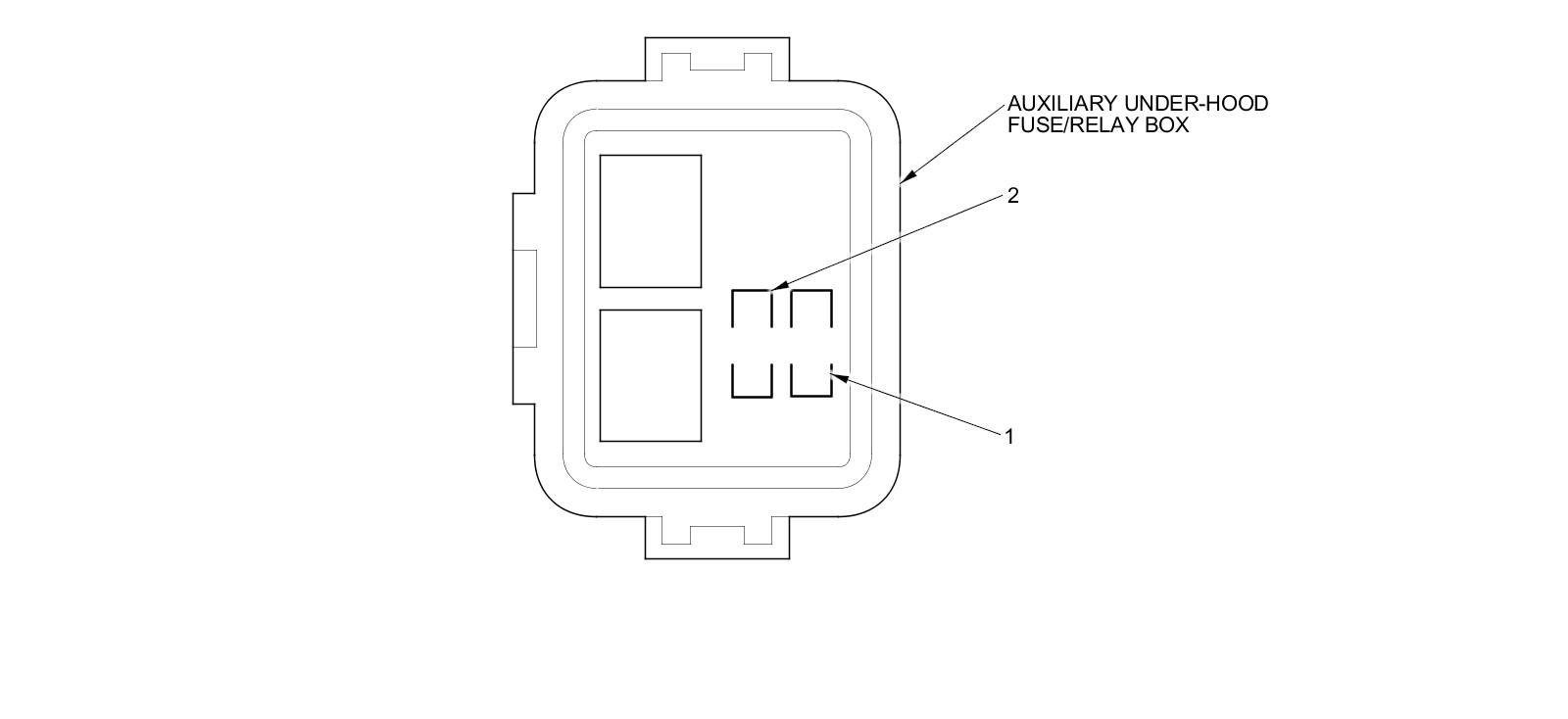

Auxiliary Under-hood Fuse/Relay Box
