Front Passenger's Weight Sensor Replacement: Installation

NOTE:

Be sure to install the harness wires so they are not pinched or interfere with other parts.
The spacers and collars can be identified by their color. Make sure to install the spacers and collars as shown.

Install the slide lever (A), then install the new front passenger's seat slide assembly under the seat track.

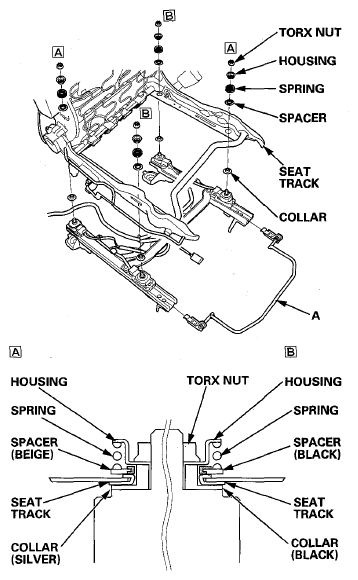

Fig 1: Identifying Torx Nut, Housing, Spring, Spacer, Seat Track, Collar And Slide Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When tightening the TORX nuts (A), using a TORX E18 socket. Tighten them in a crisscross pattern in two or more steps.

Fig 2: Torx Nuts, ODS Unit Harness 3P Connectors And White Tape With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the ODS unit harness 3P connectors (B) to the front passenger's weight sensors.
NOTE: The ODS unit harness 3P connectors with the white tape (C) connect to the front side of the front passenger's weight sensors.
Install following items:
- Front seat cushion frame (see PASSENGER'S SEAT )
- Front seat recline covers (see FRONT SEAT RECLINE COVER REMOVAL/INSTALLATION )
- Front seat belt buckle (see FRONT SEAT BELT BUCKLE )
- Front seat-back cover/pad (see FRONT SEAT-BACK COVER REPLACEMENT )
- Front seat cushion cover/pad (see FRONT SEAT CUSHION COVER REPLACEMENT )
Reinstall the front passenger's seat (see FRONT SEAT ACTIVE HEAD RESTRAINT INSPECTION ).
Do the 12 volt battery terminal reconnection procedure (see RECONNECTION ).
Clear any DTCs with the HDS (see HOW TO CLEAR DTCS ).
Do the front passenger's weight sensor initialization (see FRONT PASSENGER'S WEIGHT SENSOR INITIALIZATION ).
Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
