Wiper Arm/Nozzle Adjustment: Notes

NOTE:
  • Adjust the washer nozzles by gently gripping, and then moving, the outside of each nozzle (A).
  • Do not insert tools into the nozzle hole (B), as it may cause the washer fluid to spray incorrectly.

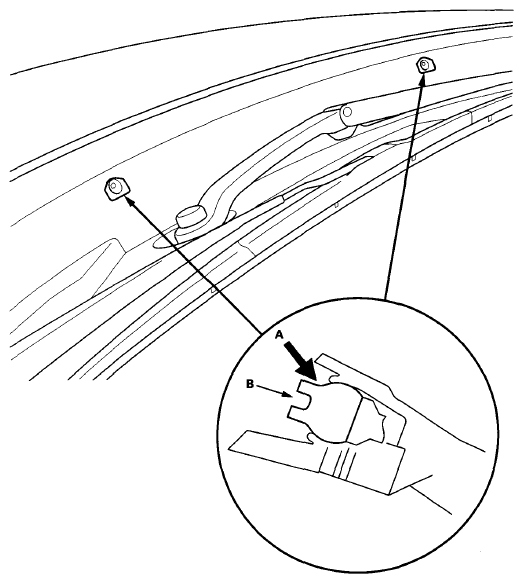

    Fig 1: Locating Nozzle
    G08094780Courtesy of AMERICAN HONDA MOTOR CO., INC.
