Connecting Rod Nut/Bolt Torque




Torque the connecting rod bolts to 9.8 Nm (1.0 kg-m, 7 lb-ft).

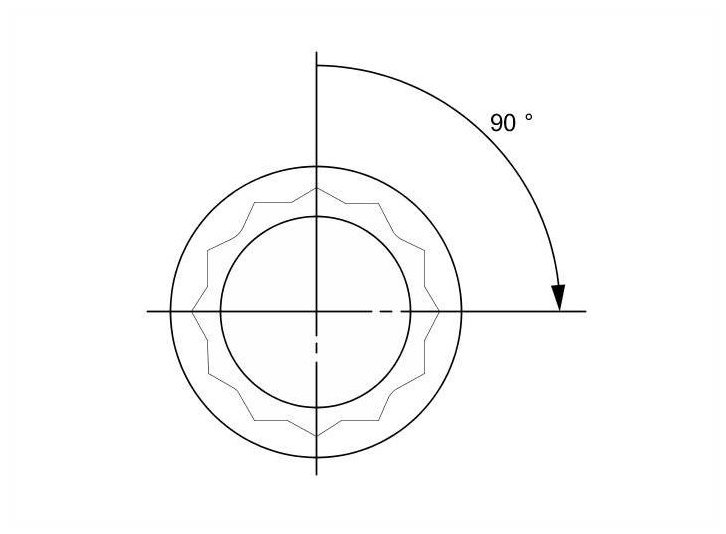

Tighten the connecting rod bolts an additional 90 °
