Computers and Control Systems

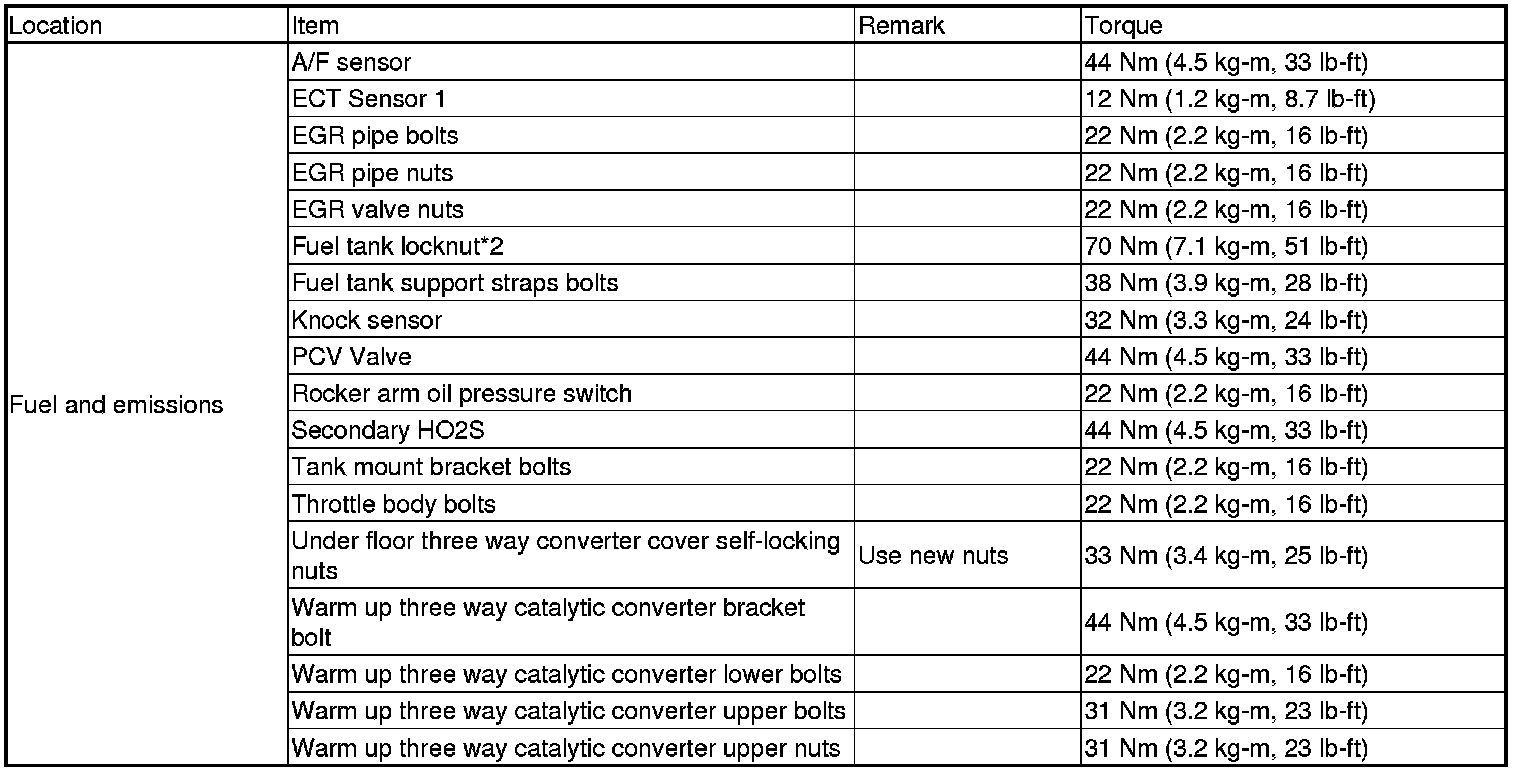

Torque Specifications

NOTE
*Refer to the service precautions data for the precautions and complete procedures.
*Refer to the repair data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the repair data procedures closely for torque, sequence, and special steps.

Fuel Emissions
