Variable Valve Timing Solenoid: Service and Repair




Rocker Arm Oil Control Valve Removal/Installation

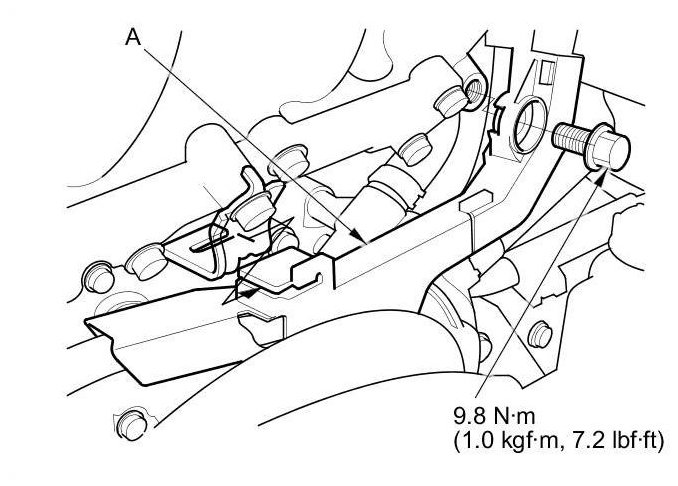

1. Remove the harness holder (A).

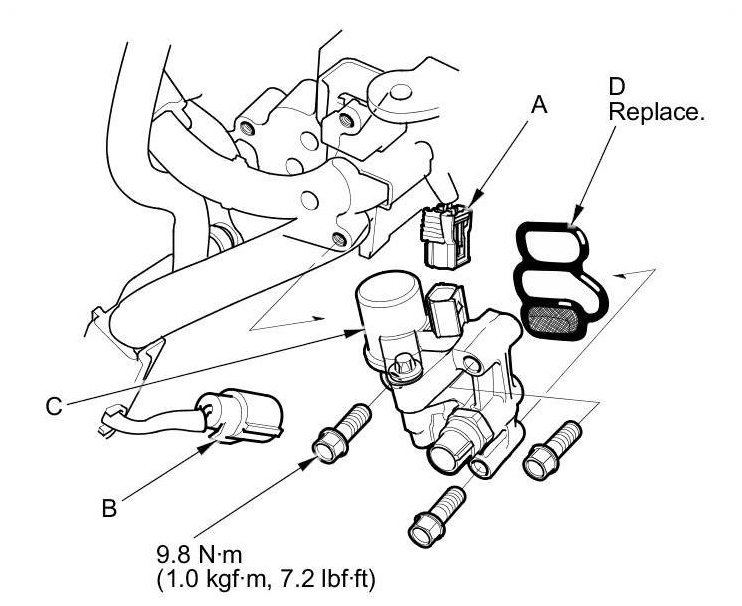

2. Disconnect the rocker arm oil control solenoid connector (A) and the rocker arm oil pressure switch connector (B).





3. Remove the rocker arm oil control valve assembly (C) and the rocker arm oil control valve filter (D).

4. Install the parts in the reverse order of removal with a new rocker arm oil control valve filter.
