CKP Pulse Plate Replacement




CKP Pulse Plate Replacement

1. Remove the crankshaft from the engine block Crankshaft And Piston Removal.

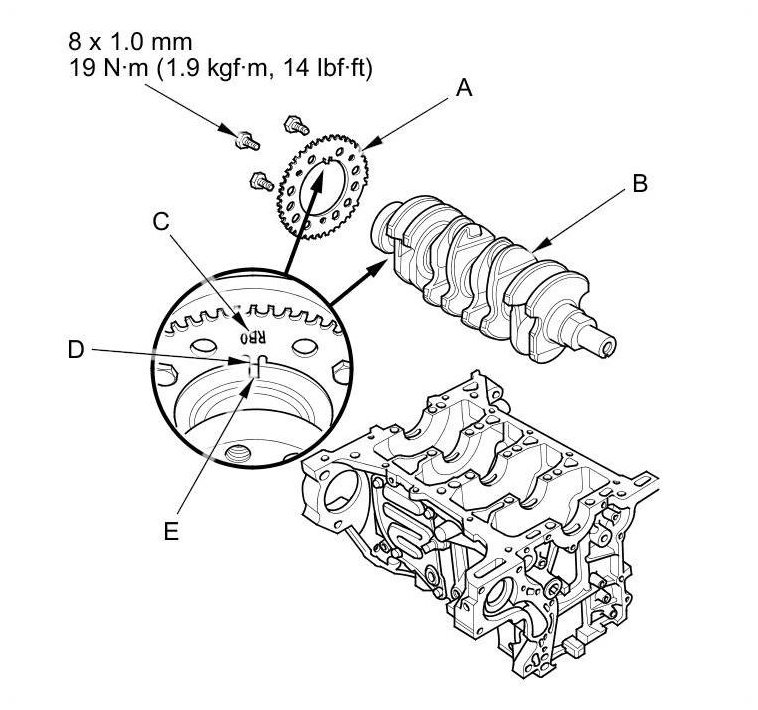

2. Remove the CKP pulse plate (A) from the crankshaft (B).

NOTE: Be careful not to damage the journals and the CKP pulse plate.





3. Install the CKP pulse plate on the crankshaft; face the marked side (C) toward the transmission, and align the tab (D) on the CKP pulse plate with the groove (E) on the crankshaft.

4. Install the crankshaft on the engine block Crankshaft Installation.
