Power Mirror Switch: Service and Repair




Power Mirror Switch Test/Replacement

1. Remove the instrument panel Instrument Panel Removal/Installation.

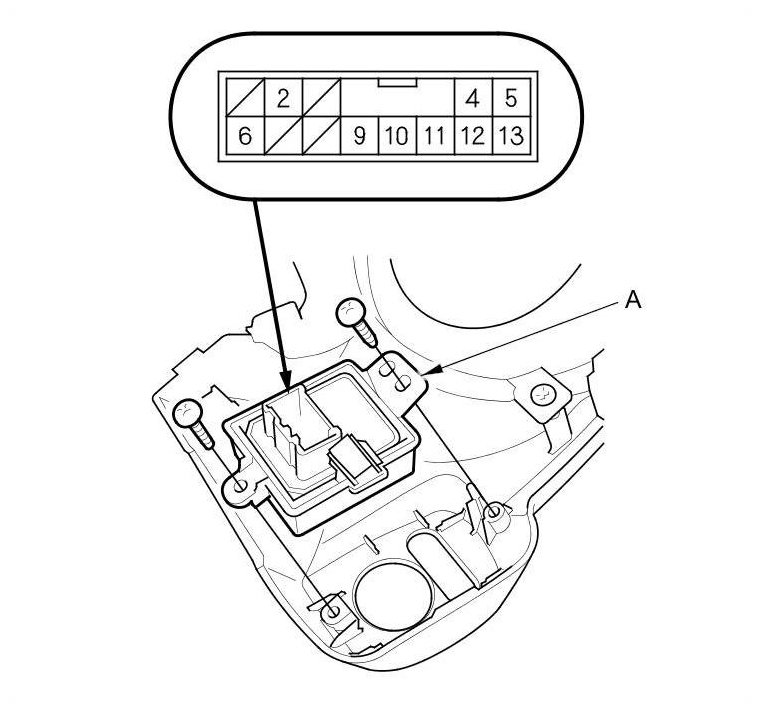

2. Disconnect the 13P connector from the power mirror switch (A).

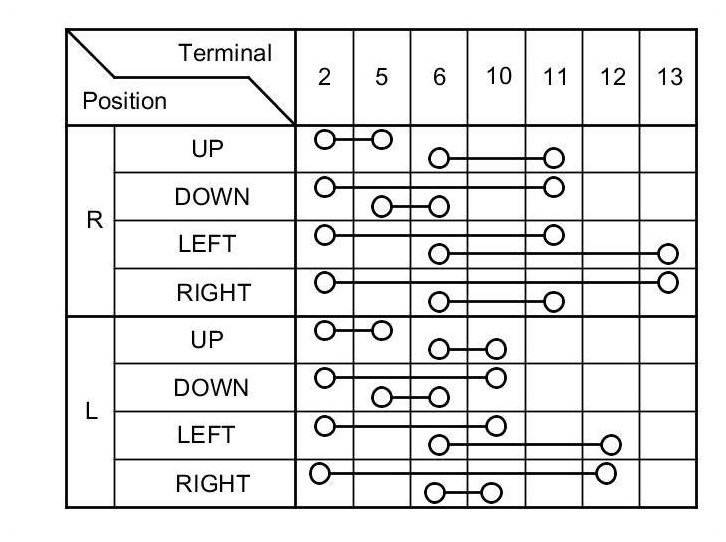

3. Check for continuity between the terminals in each switch position according to the table.

Power Mirror Switch

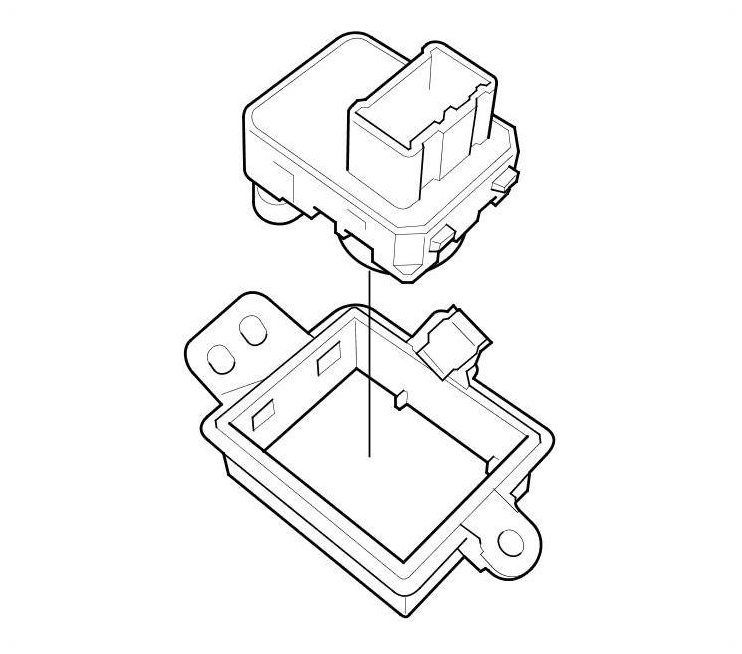

4. If the continuity is not as specified, remove the screws and the covers and replacement the power mirror switch.

5. Install in the reverse order of removal.
