Seven-position Transmission

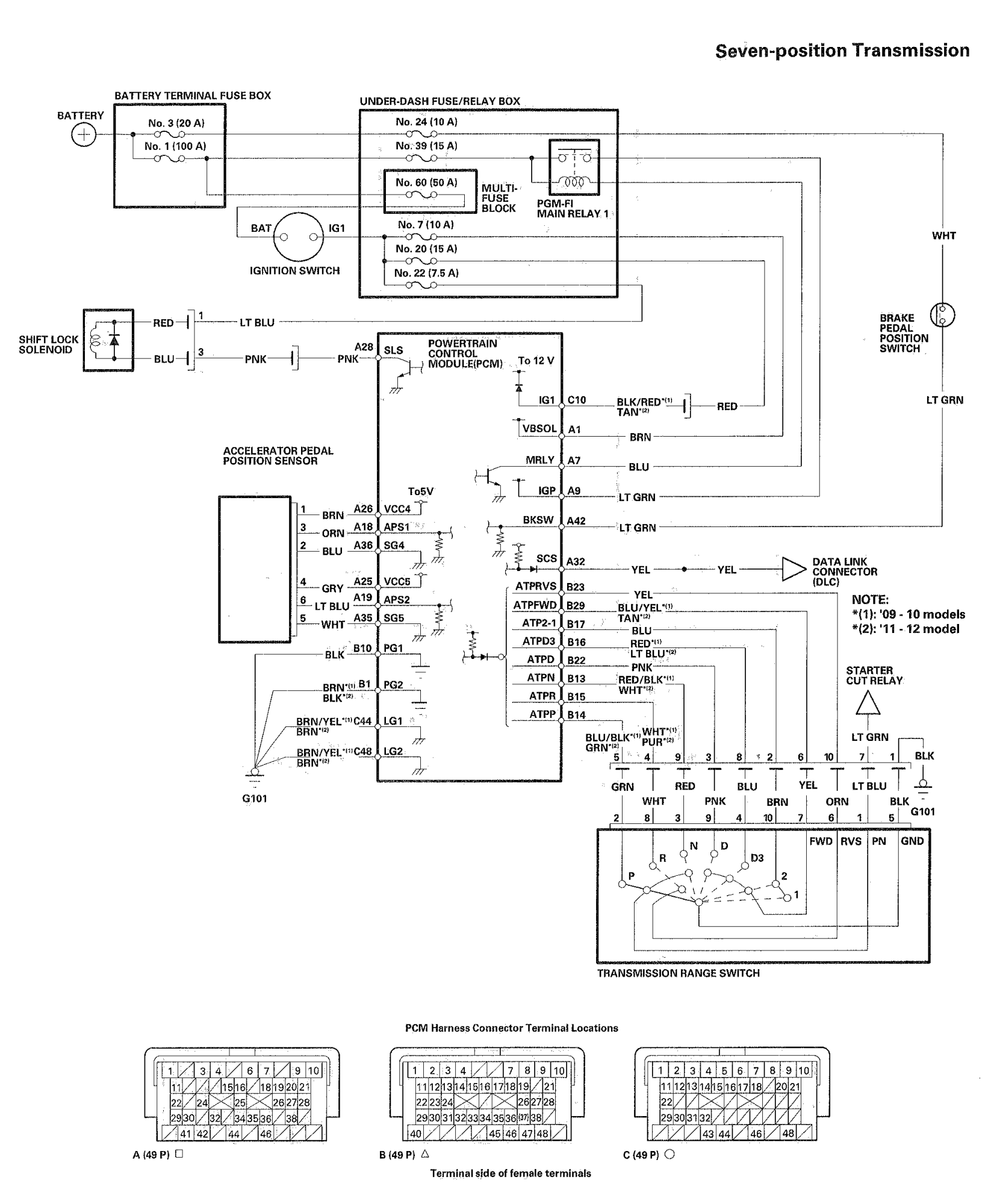

Fig 1: Seven-Position Transmission Circuit Diagram
G06768583Courtesy of AMERICAN HONDA MOTOR CO., INC.
