A/T Clutch Pressure Control Solenoid Valve A Replacement

  1. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the bolt (A) securing the harness cover.

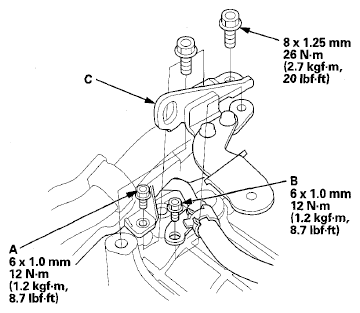

    Fig 1: Removing Bolt Securing Harness Cover With Torque Specifications
    G06768433Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolt (B) securing the ATF cooler line/hose bracket.
  4. Remove the transmission hanger/air cleaner housing bracket (C).
  5. Disconnect A/T clutch pressure control solenoid valve connector (A).
    Fig 2: Removing Transmission Hanger/Air Cleaner Housing Bracket With Torque Specifications
    G06768434Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the mounting bolts and A/T clutch pressure control solenoid valve A (B).
  7. Remove the ATF pipe (C), the ATF joint pipes (D), the O-rings (E), and the gasket (F).
  8. Clean the mounting surface and fluid passages of the transmission housing.
  9. Install a new gasket with blue side facing down and the white side facing up on the transmission housing.
  10. Install the ATF pipe and the ATF joint pipes, and install new O-rings over the ATF joint pipes.
  11. Install A/T clutch pressure control solenoid valve A.
  12. Install the transmission hanger/air cleaner housing bracket, and secure the ATF cooler line/hose bracket and harness cover with the bolts.
  13. Check the connector for rust, dirt, or oil, clean or repair if necessary, then connect the connector securely.
  14. Install the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
