Pilot Bearing Replacement

WARNING: This page is about a different variant/trim than selected.

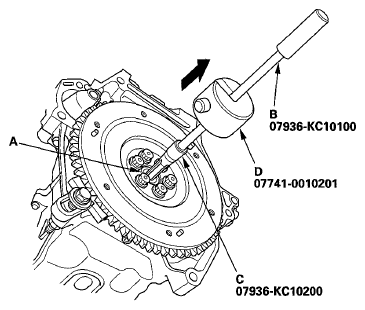

Remove the crankshaft pilot bearing (A) using the bearing remover shaft (B), bearing remover head (C), and the sliding hammer weight (D).

Fig 1: Identifying Crankshaft Pilot Bearing, Sliding Hammer Weight, Bearing Remover Shaft & Head
Courtesy of AMERICAN HONDA MOTOR CO., INC.

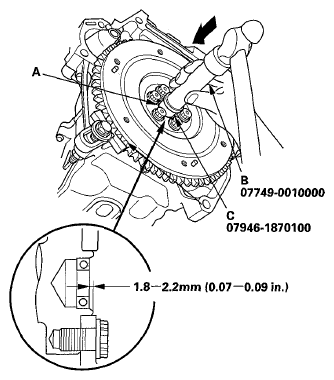

Install a new pilot bearing (A) into the crankshaft using the 15 x 135L driver handle (B) and 28 x 30 mm bearing driver attachment (C).

Fig 2: Identifying Pilot Bearing, Driver Handle & Bearing Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
