Intake Manifold Removal and Installation: Removal

  1. Remove the harness holder (A) and the dipstick (B).

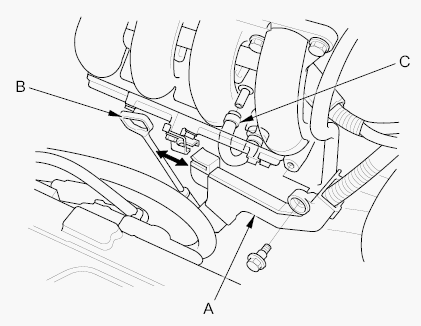

    Fig 1: Identifying Harness Holder & Positive Crankcase Ventilation (PCV) Hose
    G05952692Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the PCV hose (C).
  3. Disconnect the EGR valve connector.
  4. Remove the intake manifold (A).

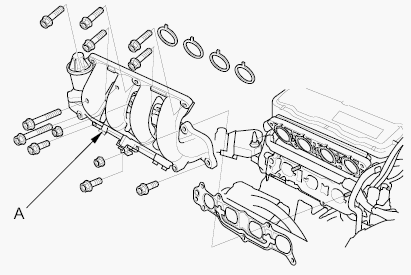

    Fig 2: Identifying Intake Manifold & Dipstick
    G05952693Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disassemble the intake manifold.
    NOTE: Refer to the Exploded View if needed during this procedure (see Figure).
