LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Honda
>>
2012
>>
Fit Base, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Drivelines & Axles
>>
Axle Shafts
>>
Driveline/Axle
>>
Driveshaft Reassembly
>>
Exploded View
>>
M/T Model
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
M/T Model

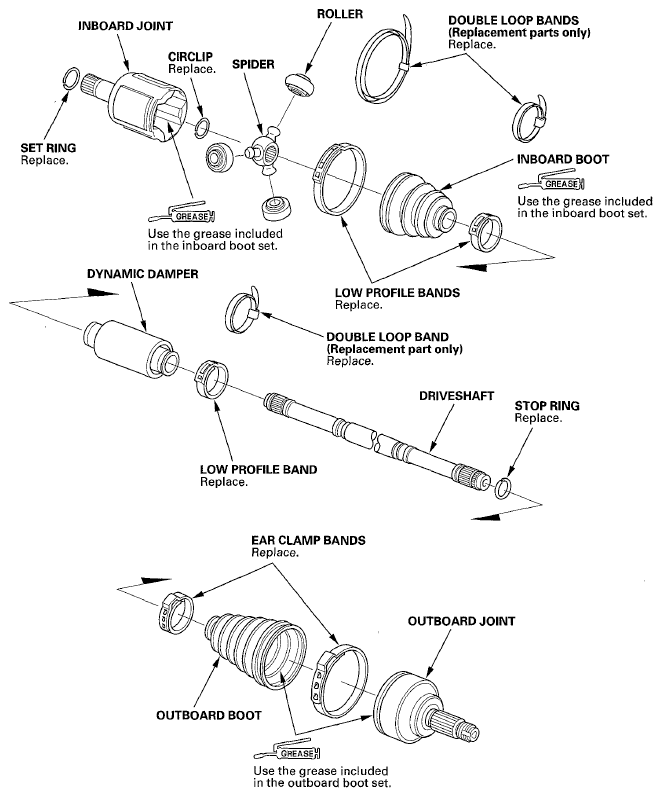

Fig 1: Identifying Driveshaft Replacement Components (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
