Driveshaft Reassembly
>>
Exploded View
>>
A/T Model
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A/T Model

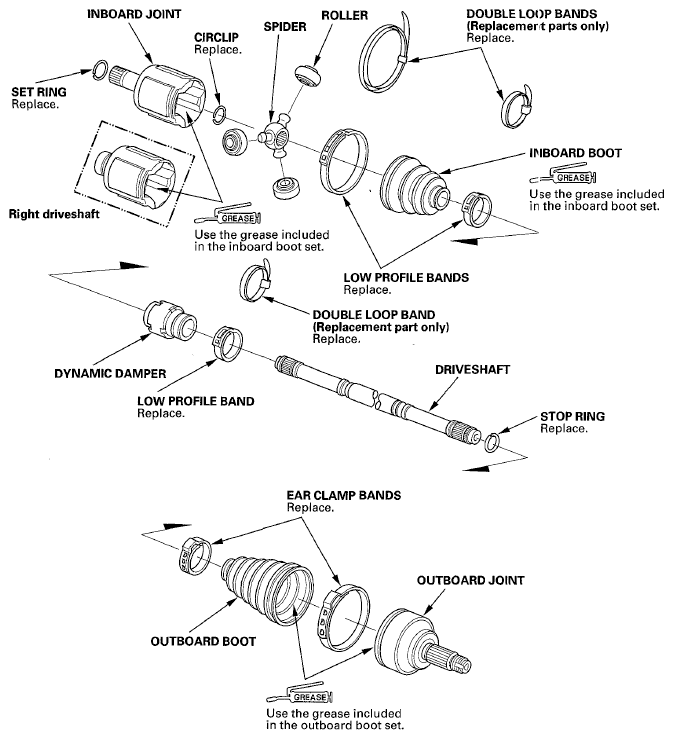

Fig 1: Identifying Driveshaft Replacement Components (A/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
