Pinout Values and Diagnostic Parameters




Brakes

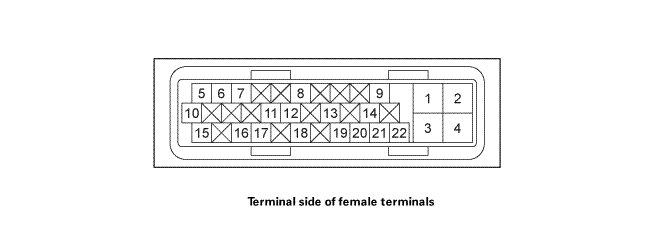

VSA Modulator-Control Unit Connector for Inputs and Outputs

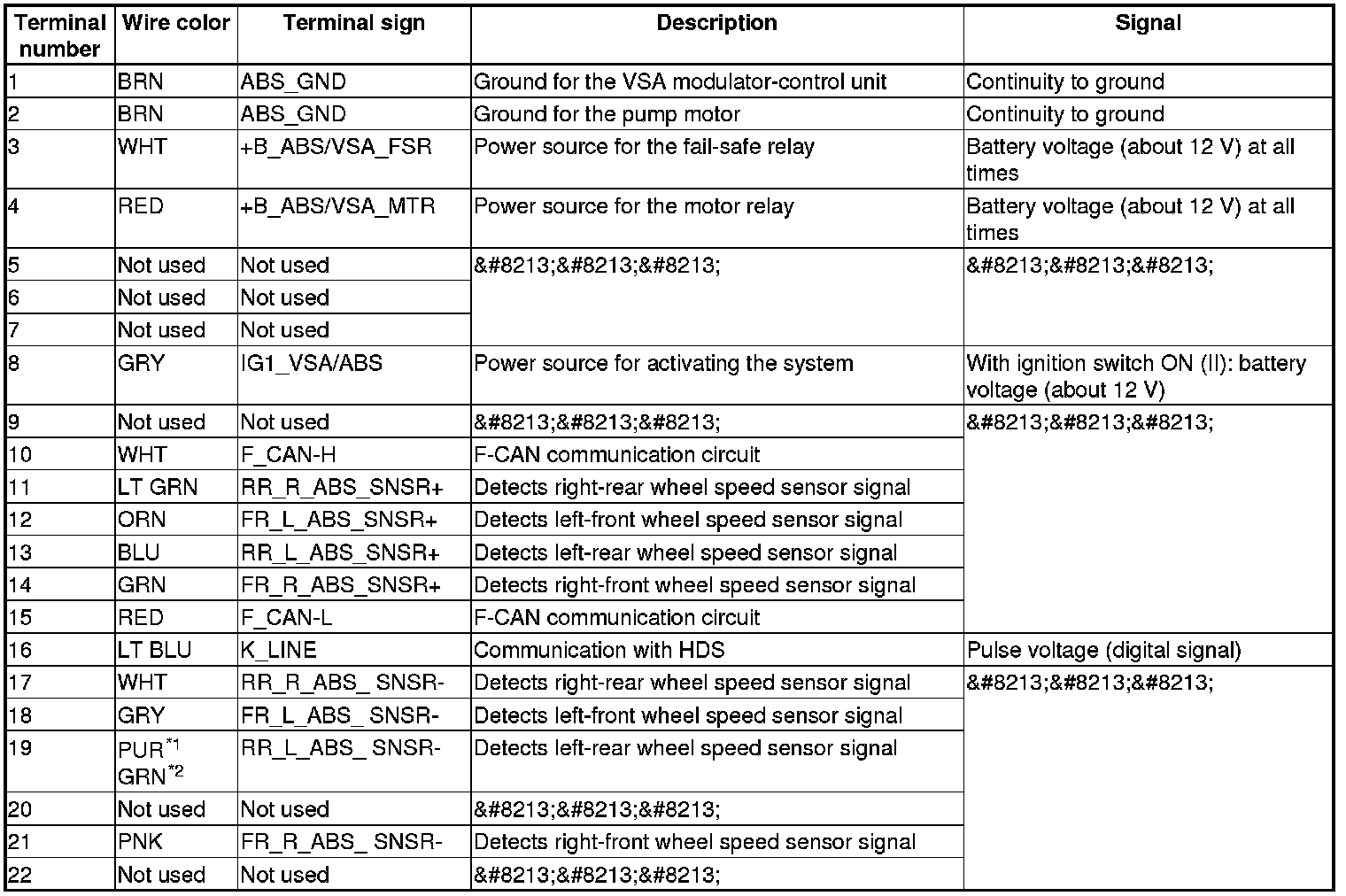

VSA Modulator-Control Unit Inputs and Outputs for 22P Connector (Connector Disconnected)
