EGR Tube: Service and Repair






EGR Pipe Removal and Installation

Removal

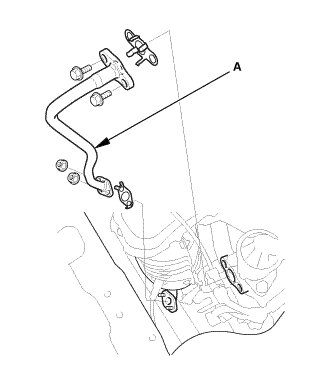

1. EGR Pipe





1. Remove the EGR pipe (A).

Installation

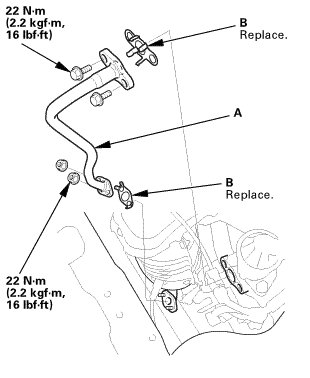

1. EGR Pipe





1. Install the EGR pipe (A) with new gaskets (B).
