ECM/PCM Connector for Inputs and Outputs




Engine

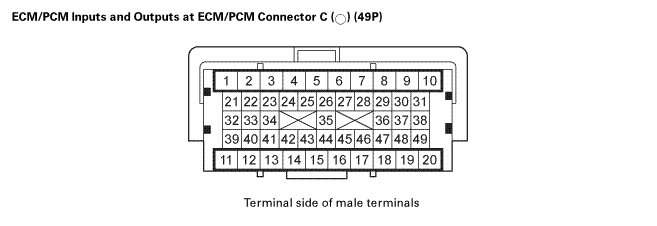

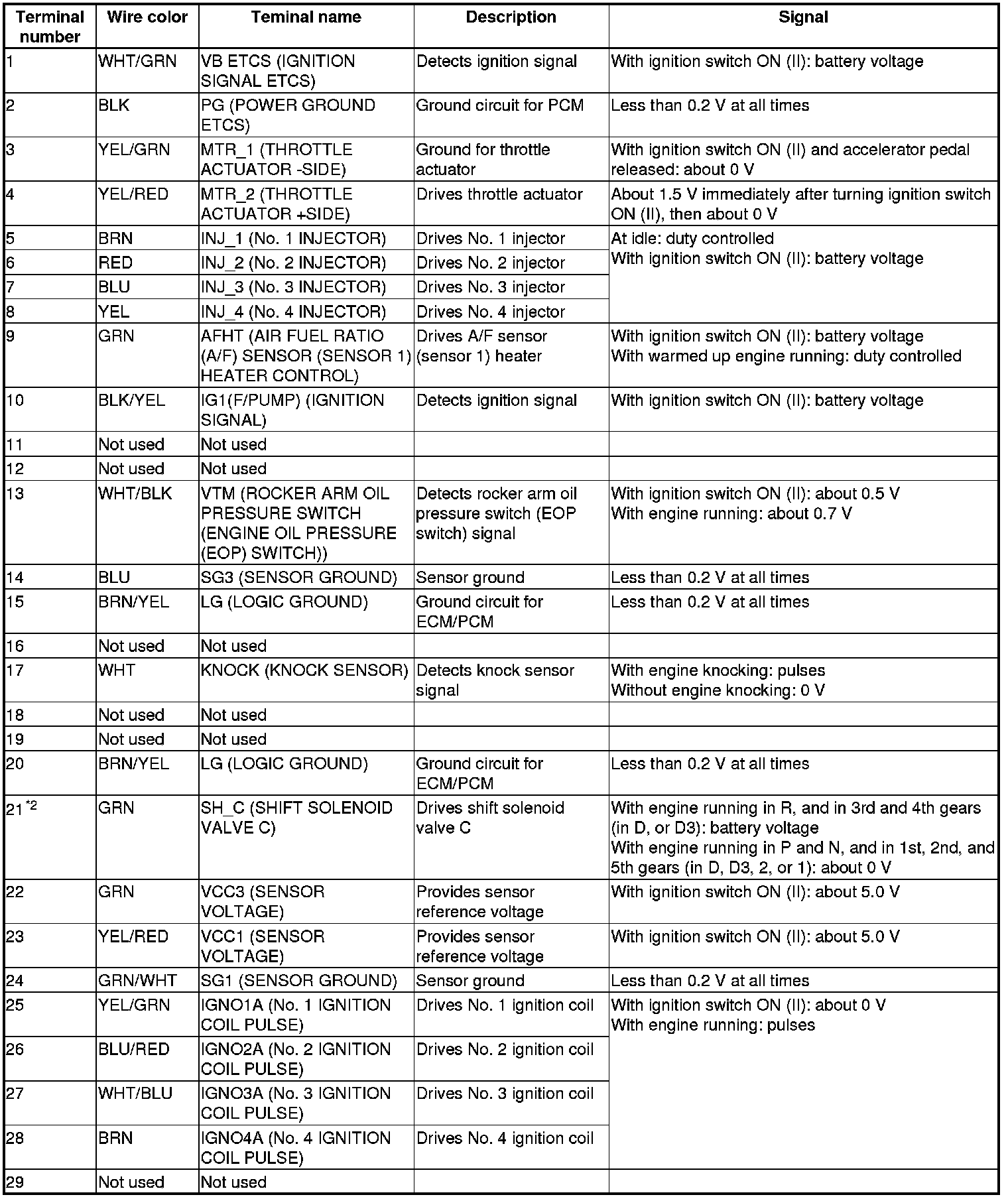

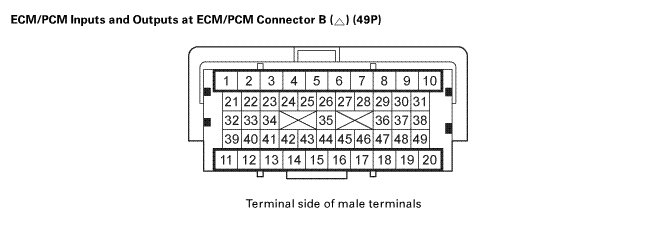

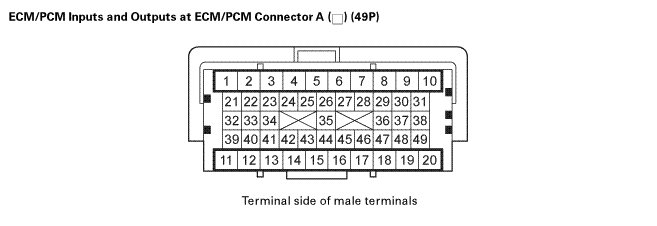

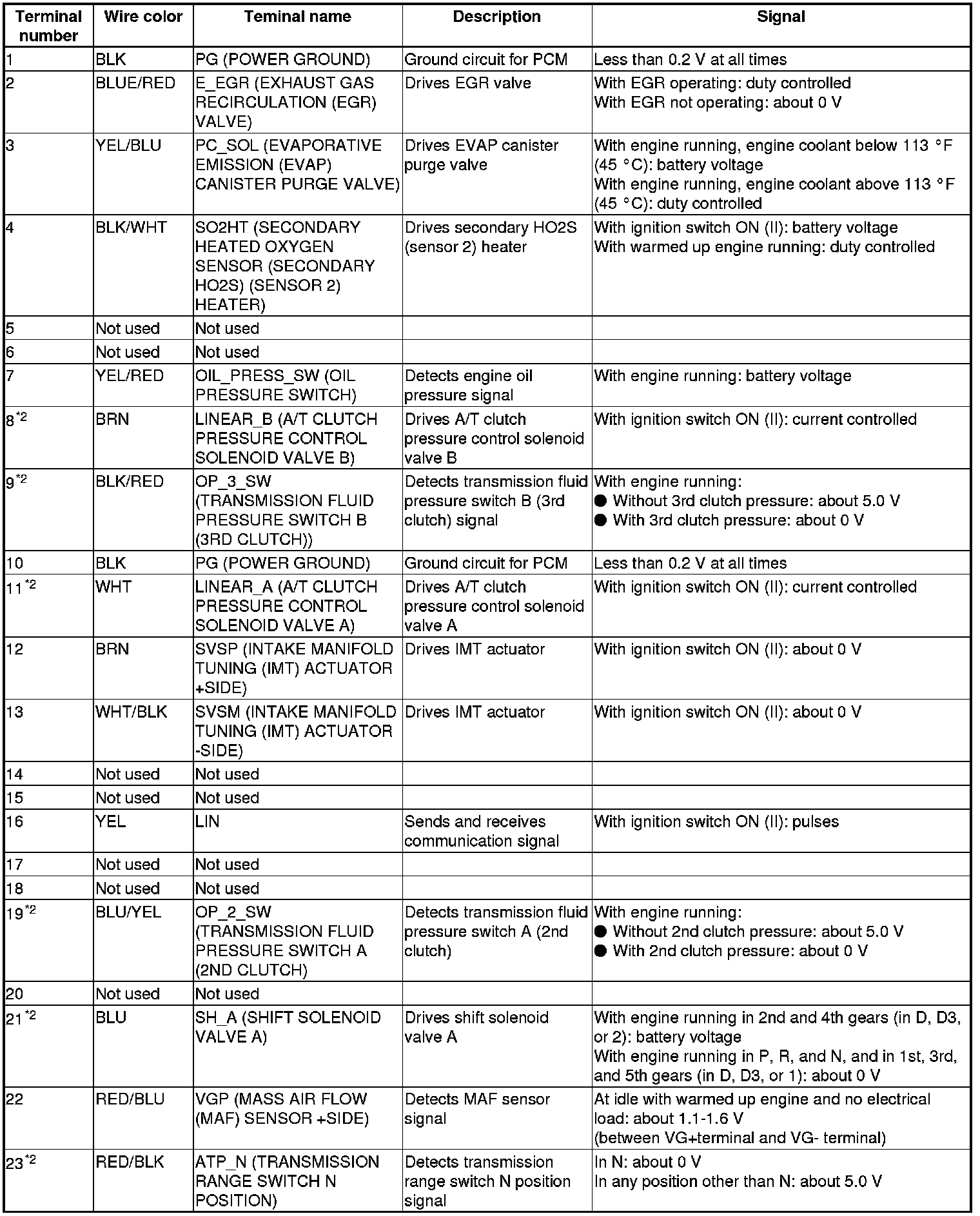

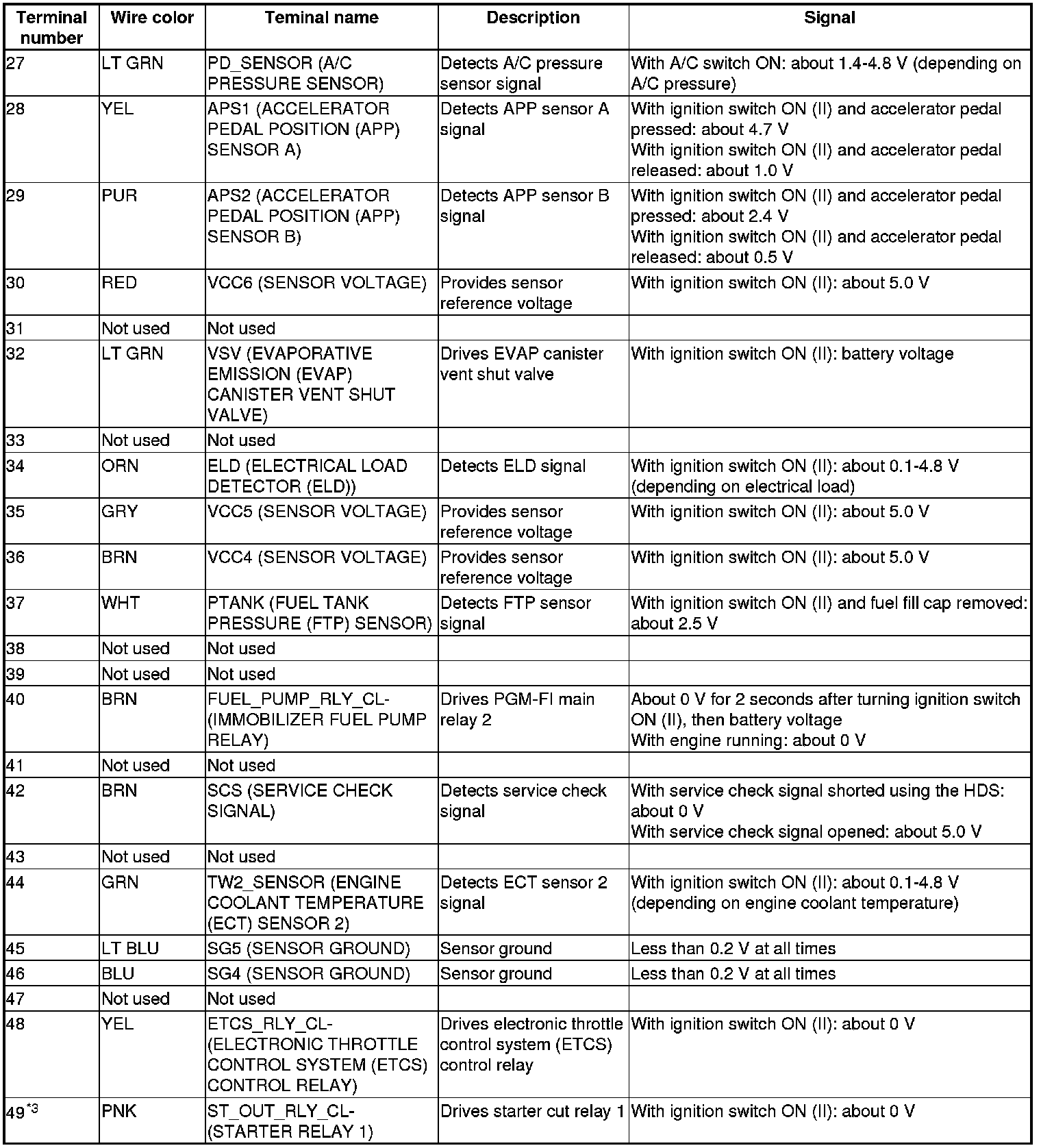

ECM/PCM Connector for Inputs and Outputs














*1: M/T

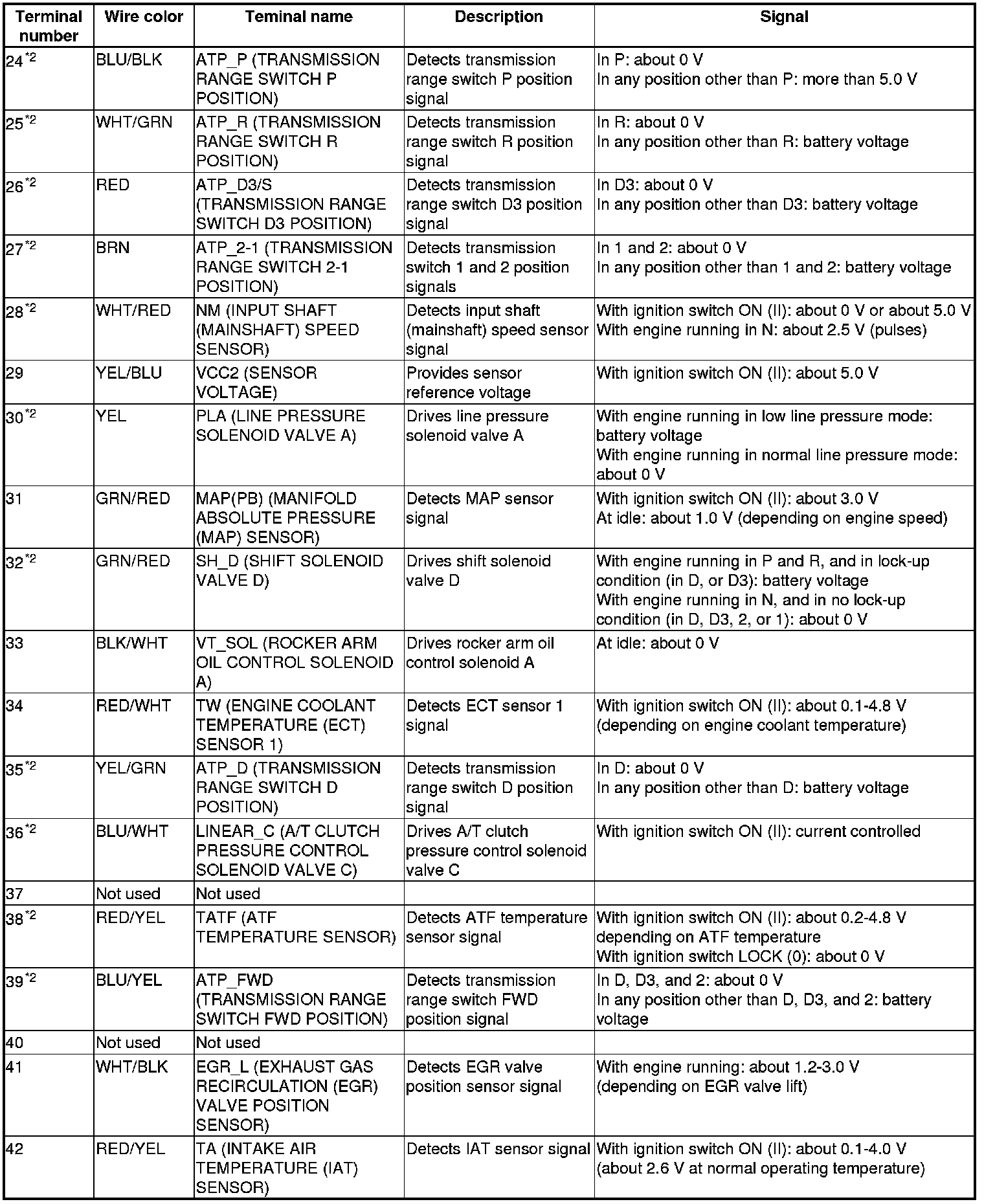

*2: A/T

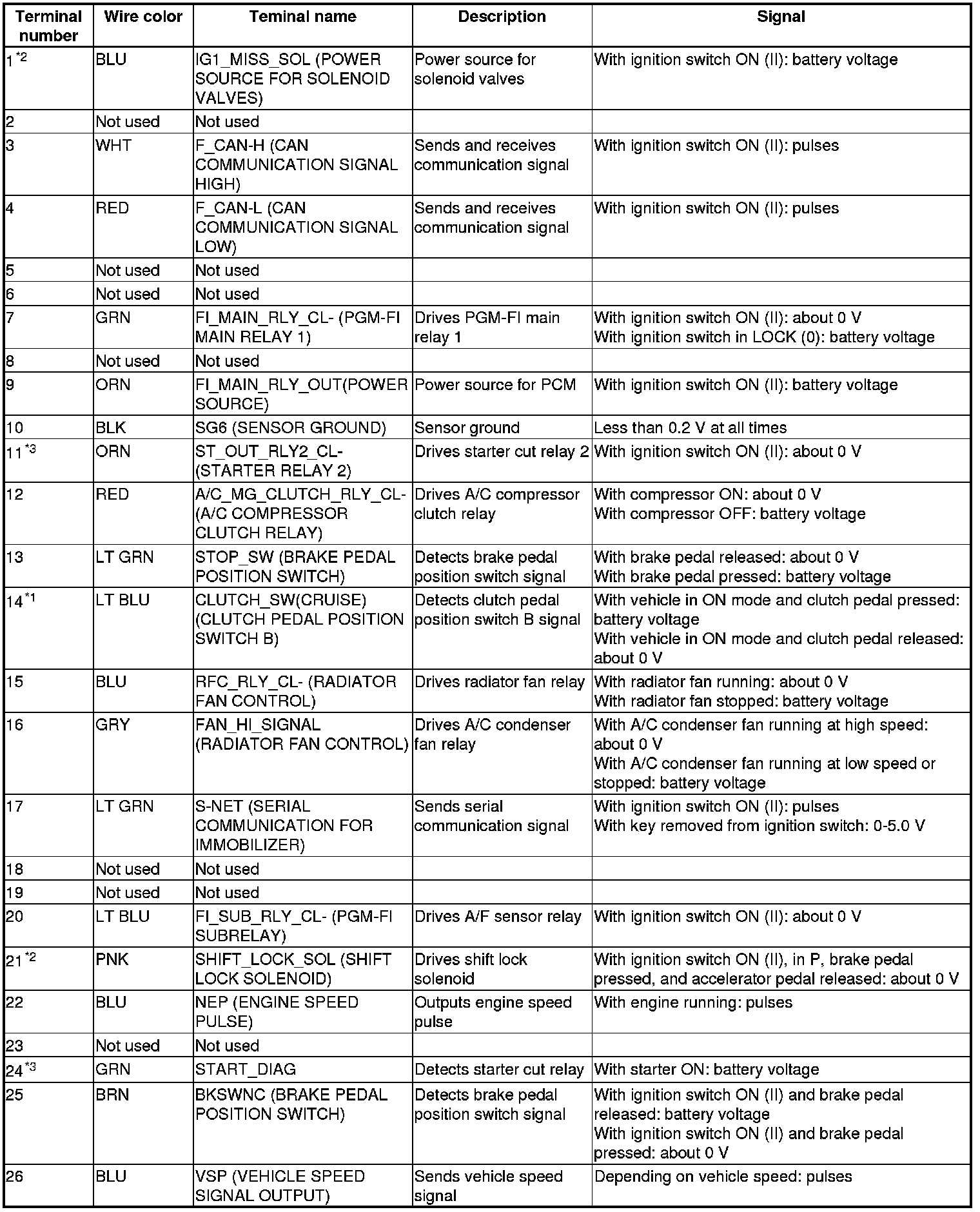

*3: Mexico models

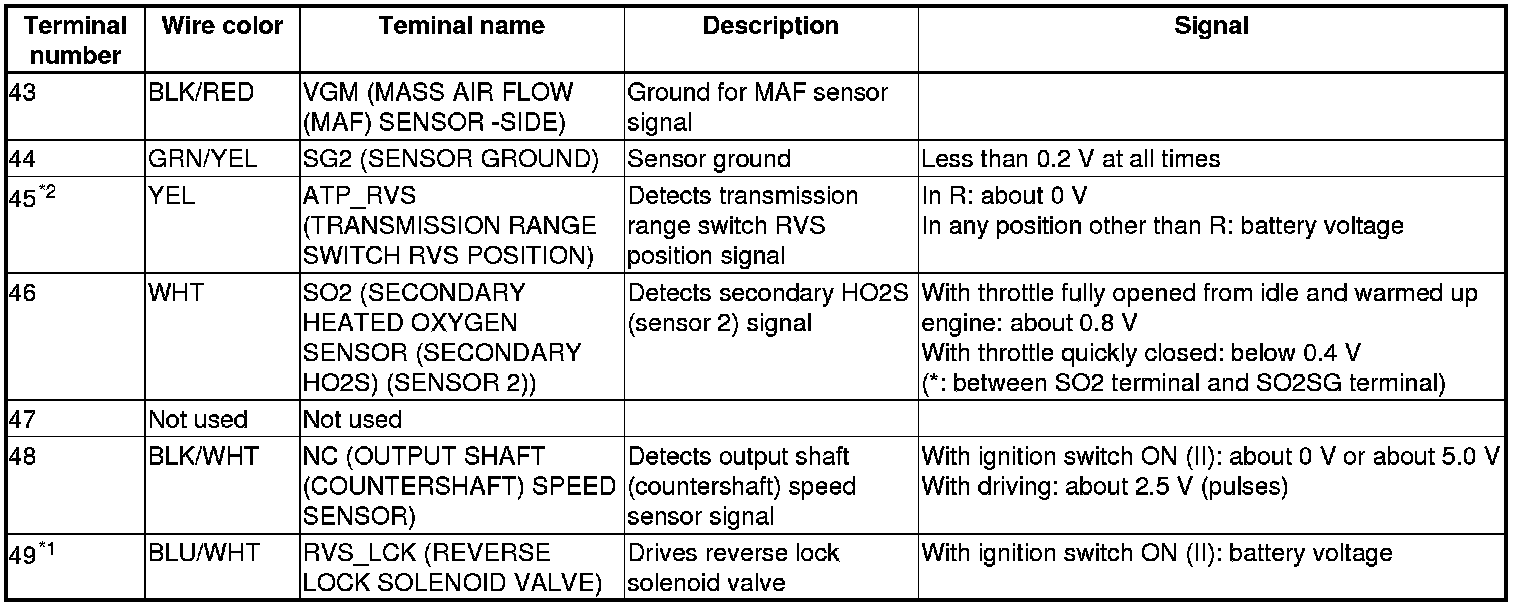

*1: M/T
*2: A/T

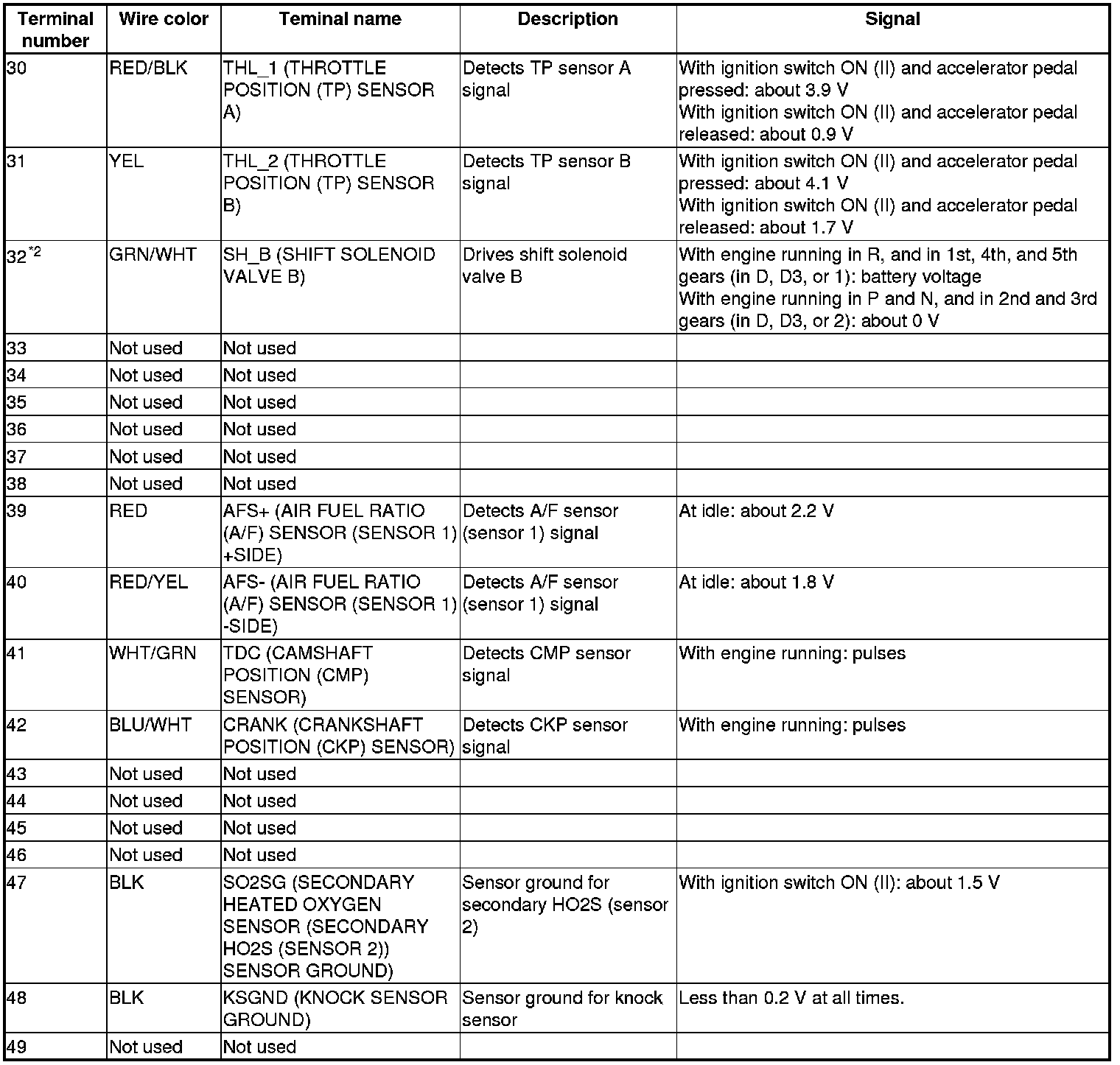

*2: A/T
