Manifold Pressure/Vacuum Sensor: Service and Repair

MAP Sensor Removal and Installation

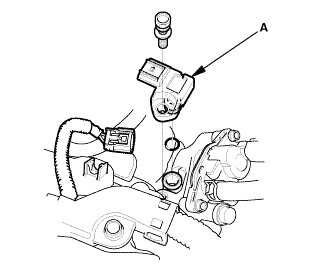

Removal

1. Map Sensor

1. Disconnect the connector.

2. Remove the MAP sensor (A).

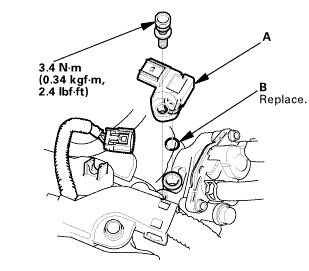

Installation

1. Map Sensor

1. Install the MAP sensor (A) with a new O-ring (B).

2. Connect the connector.
