Camshaft Position Sensor: Service and Repair

CMP Sensor Removal and Installation

Removal

1. CMP Sensor

1. Disconnect the connector.

2. Remove the CMP sensor (A).

Installation

1. CMP Sensor

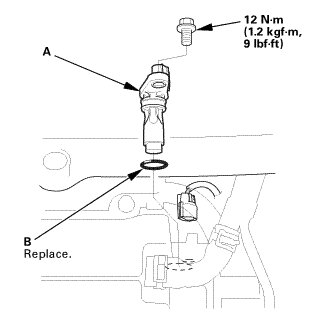

1. Install the CMP sensor (A) with a new O-ring (B).

2. Connect the connector.
