Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Module Removal and Installation

Removal

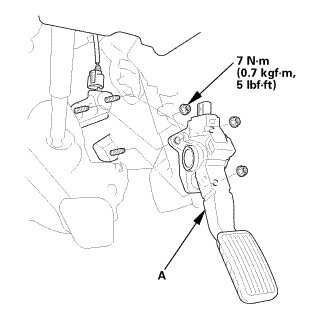

1. Accelerator Pedal Module

1. Disconnect the connector.

2. Remove the accelerator pedal module (A).

Installation

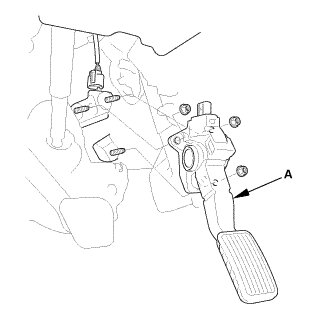

1. Accelerator Pedal Module

1. Install the accelerator pedal module (A).

2. Connect the connector.
