Timing Component Alignment Marks: Locations

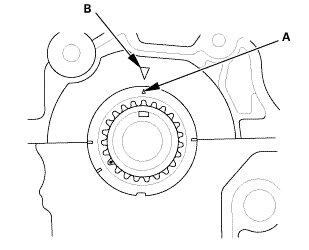

Crankshaft Top Dead Center

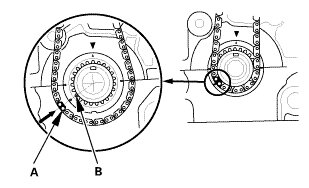

Cam chain and crankshaft sprocket with the colored piece (A) aligned with the mark (B)

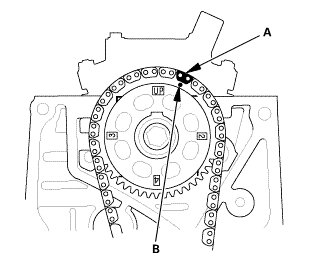

Cam chain and camshaft sprocket with the colored link plate (A) aligned with the mark (B)
