Indicator Based Service




Information Display:





Multi-Information Display (If Equipped):






Maintenance Minder

All the maintenance items displayed in the information display or the multi-information display are in code.

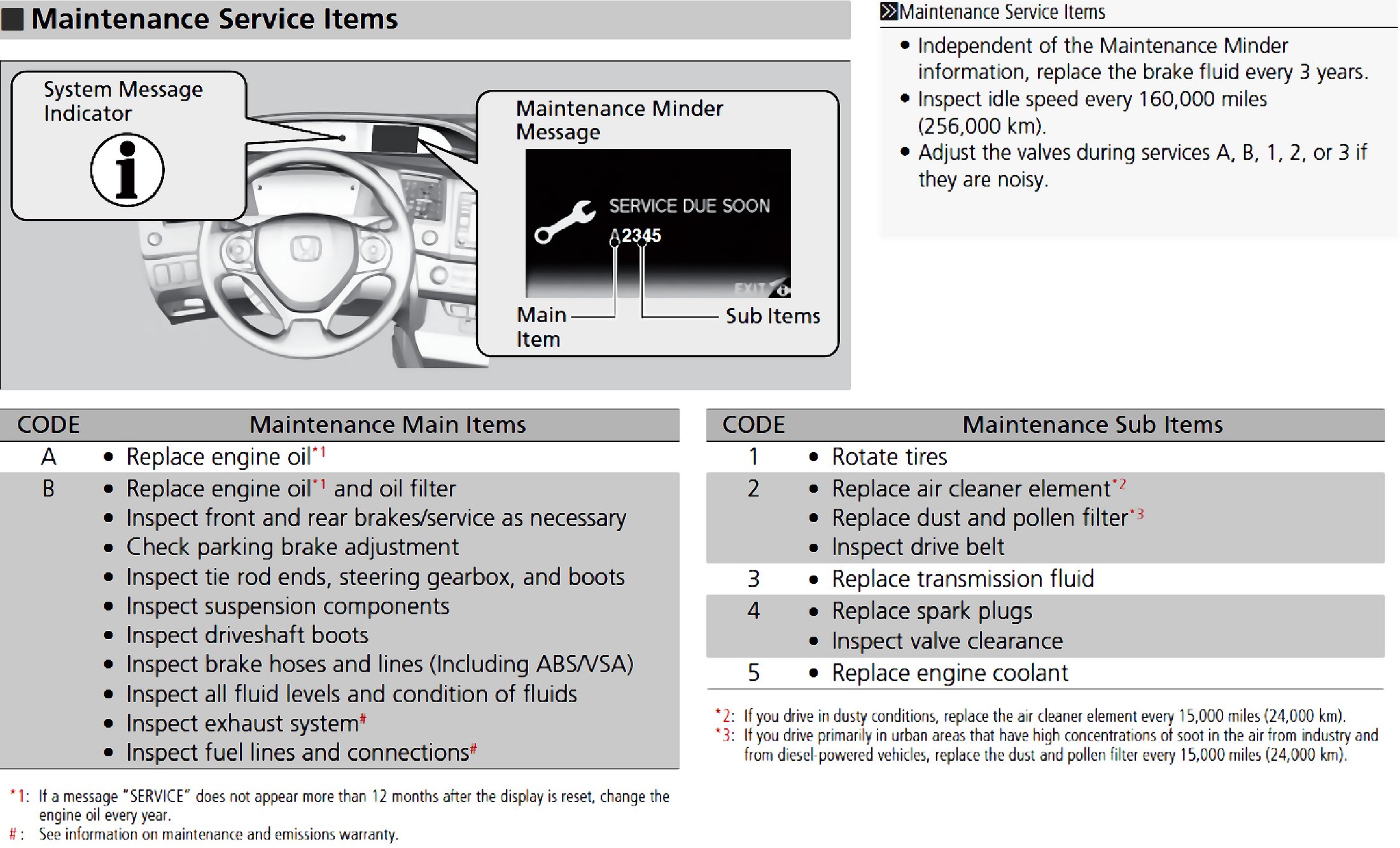

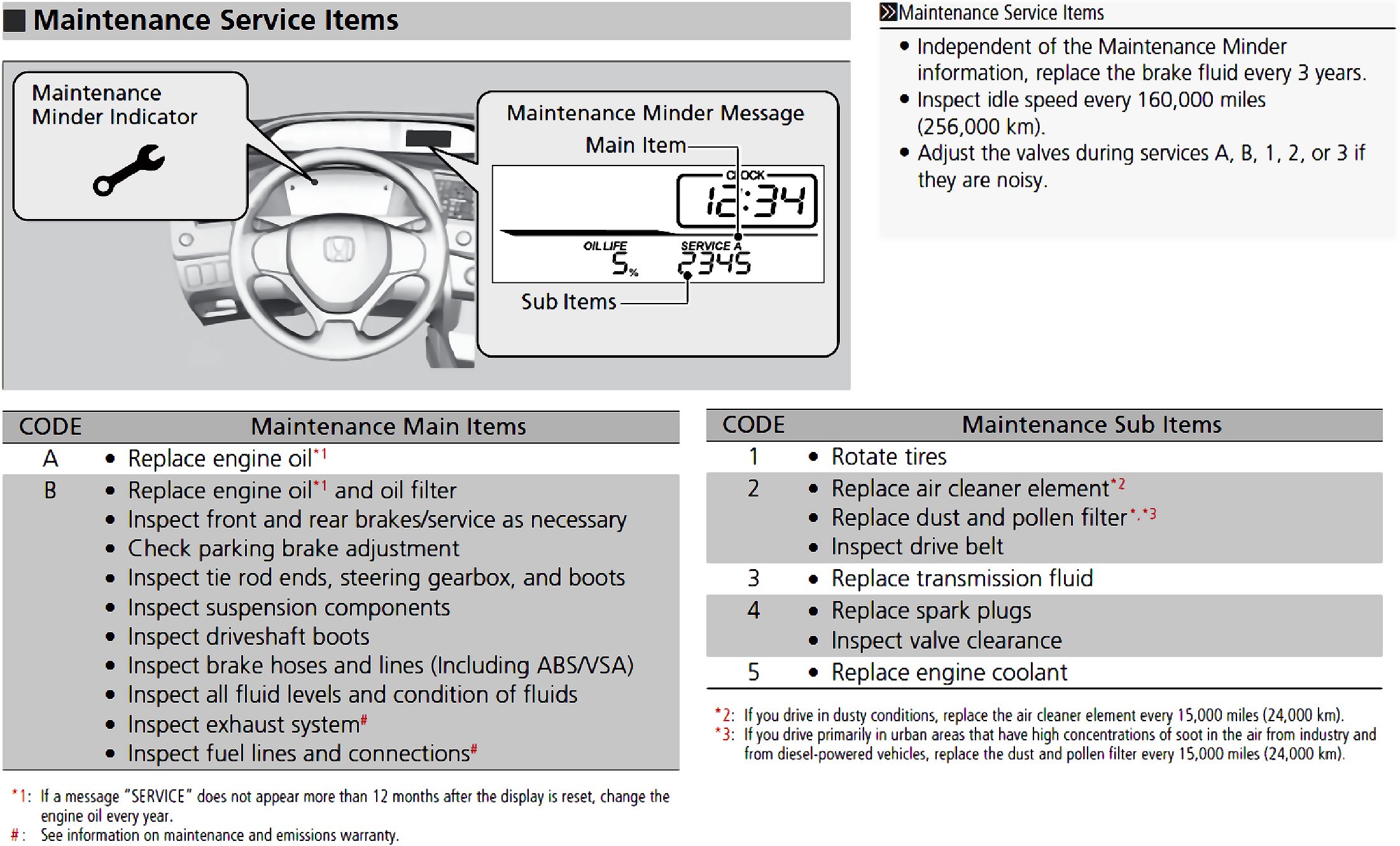

For explanation of codes and maintenance to be performed see the images above.
