Heating And A/C Systems Component Location Index




HVAC

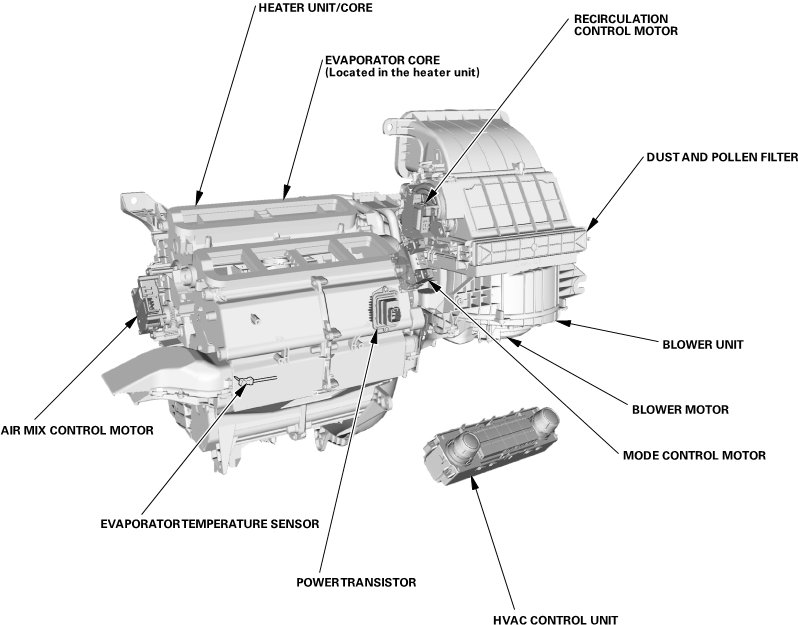

Heating and A/C Systems Component Location Index

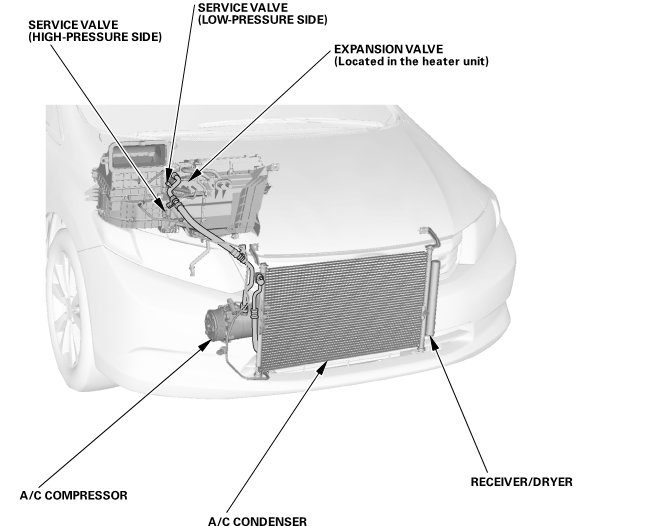

Except K24Z7 engine

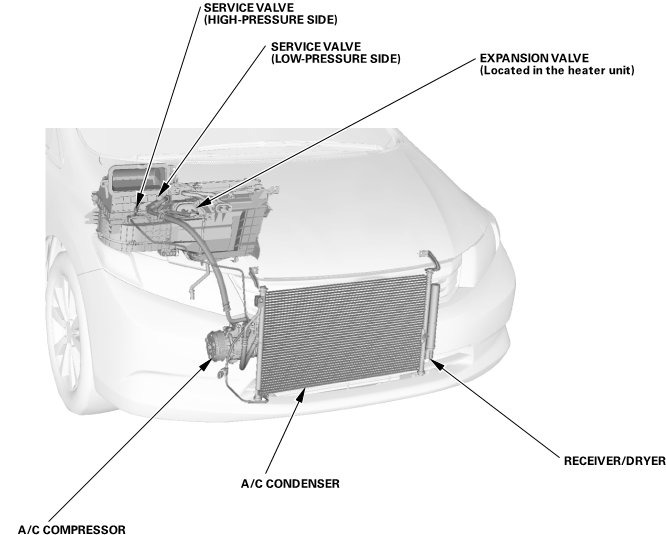

K24Z7 engine

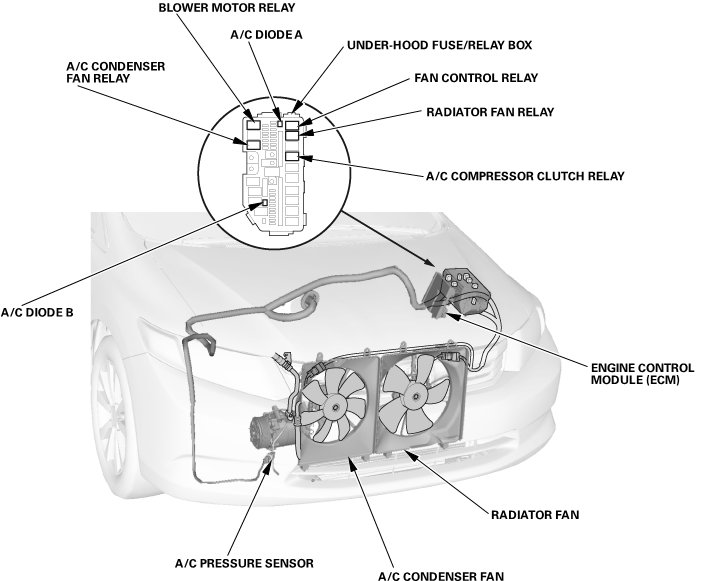

Except K24Z7 engine

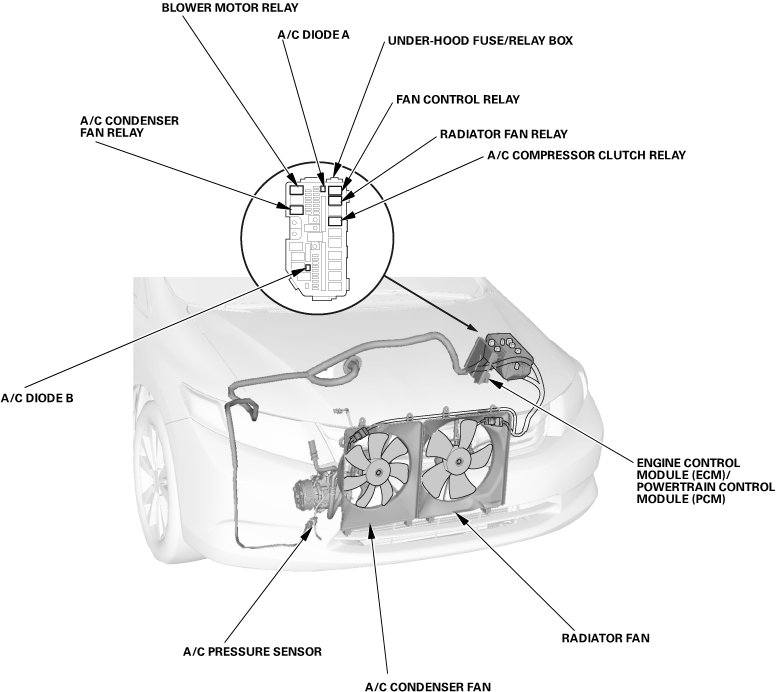

K24Z7 engine
