Structural Brace: Service and Repair






Rear Floor Under Bar Removal and Installation

Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Fuel Tank Undercover

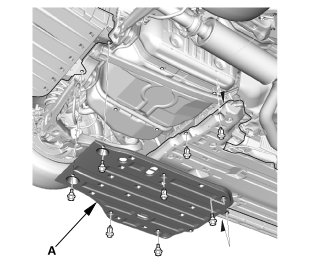

1. Remove the fuel tank undercover (A).

3. Rear Floor Under Bar

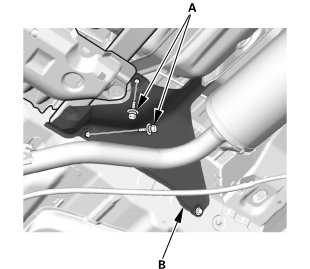

1. Remove the bolts (A) securing the fuel tank baffle (B).

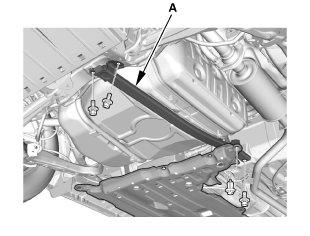

2. Remove the rear floor under bar (A).

Installation

1. Rear Floor Under Bar

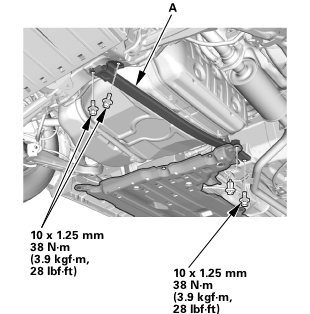

1. Install the rear floor under bar (A).

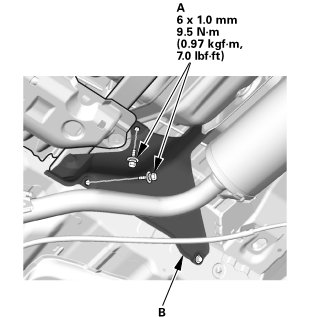

2. Install the bolts (A) securing the fuel tank baffle (B).

2. Fuel Tank Undercover

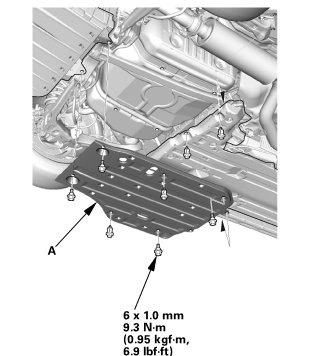

1. Install the fuel tank undercover (A).
