Front Fender Liner: Service and Repair

Front Inner Fender Removal and Installation

Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Front Wheel





1. Remove the front wheel.

3. Front Splash Guard





1. For some models: Remove the front splash guard (A).

4. Front Inner Fender

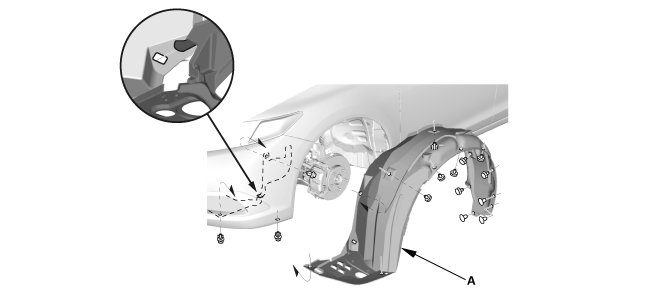

1. Remove the front inner fender (A).





Installation

1. Front Inner Fender

1. Install the front inner fender (A).





2. Front Splash Guard





1. For some models: Install the front splash guard (A).

3. Front Wheel





1. Install the front wheel.

NOTE: Before installing the wheel, clean the mating surfaces between the brake disc and the inside of the wheel.
