VTEC System Component Location Index

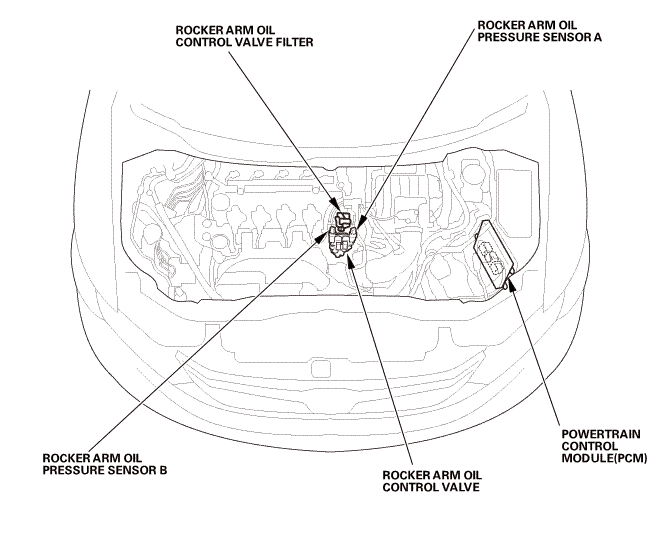

GHH118078Courtesy of HONDA, U.S.A., INC.
POWERTRAIN CONTROL MODULE (PCM) Update - Refer to: PCM Update, or PCM Removal and Installation (Without Keyless Access System), or PCM Removal and Installation (With Keyless Access System)
Removal and Installation - Refer to: PCM Update, or PCM Removal and Installation (Without Keyless Access System), or PCM Removal and Installation (With Keyless Access System)
ROCKER ARM OIL CONTROL VALVE Removal and Installation
ROCKER ARM OIL PRESSURE SENSOR A Removal and Installation - Refer to: Rocker Arm Oil Pressure Sensor B Removal and Installation, or Rocker Arm Oil Pressure Sensor A Removal and Installation
ROCKER ARM OIL PRESSURE SENSOR B Removal and Installation - Refer to: Rocker Arm Oil Pressure Sensor B Removal and Installation, or Rocker Arm Oil Pressure Sensor A Removal and Installation
