Clutch Switch: Service and Repair

Clutch Pedal Position Switch Replacement

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation.

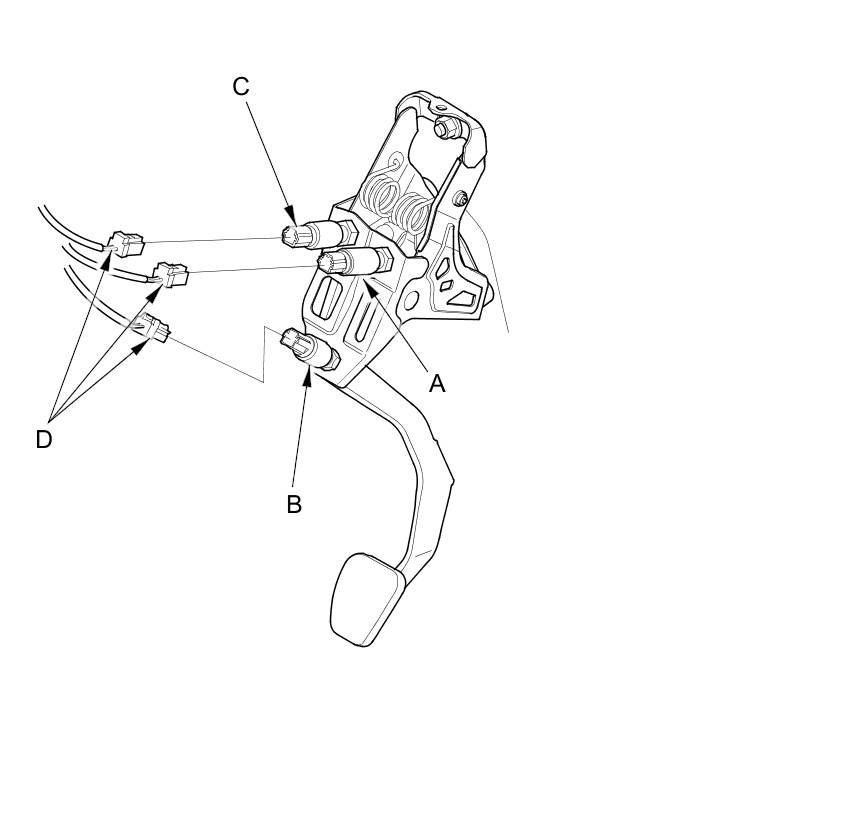

2. Disconnect clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C connectors (D).

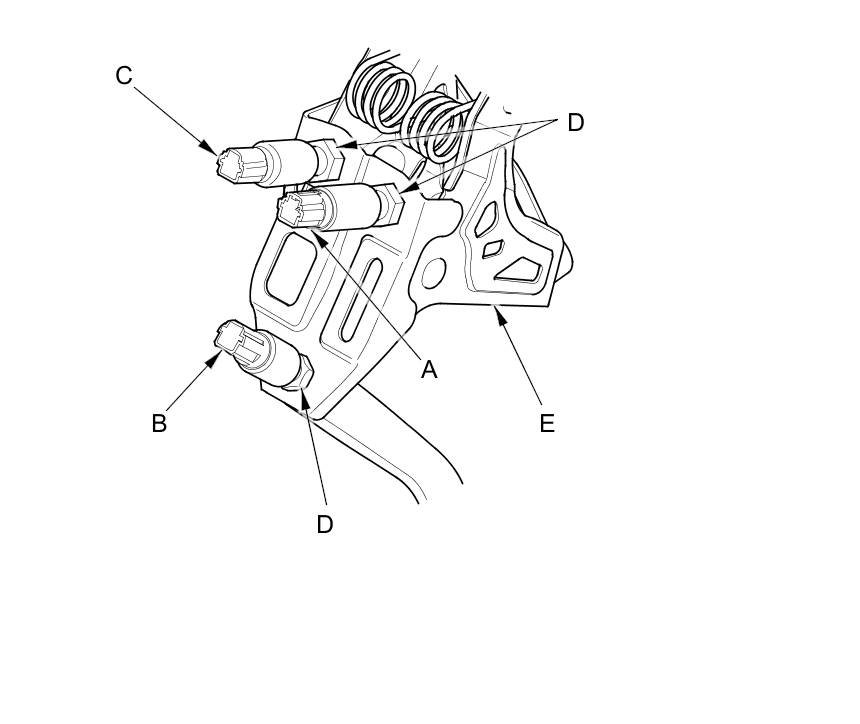

3. Loosen the locknuts (D), then remove clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C from the clutch pedal assembly (E).






4. Loosely install clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C to the clutch pedal assembly in the reverse order of removal.

NOTE:

- Do not let the clutch pedal position switch contact the clutch pedal.
- Make sure the installation position of each clutch position switch is correct.

5. Connect clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C connectors.

6. Adjust the clutch pedal, clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C Adjustments.

7. Check the clutch operation.

8. Install the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation.
