KC Canada Models

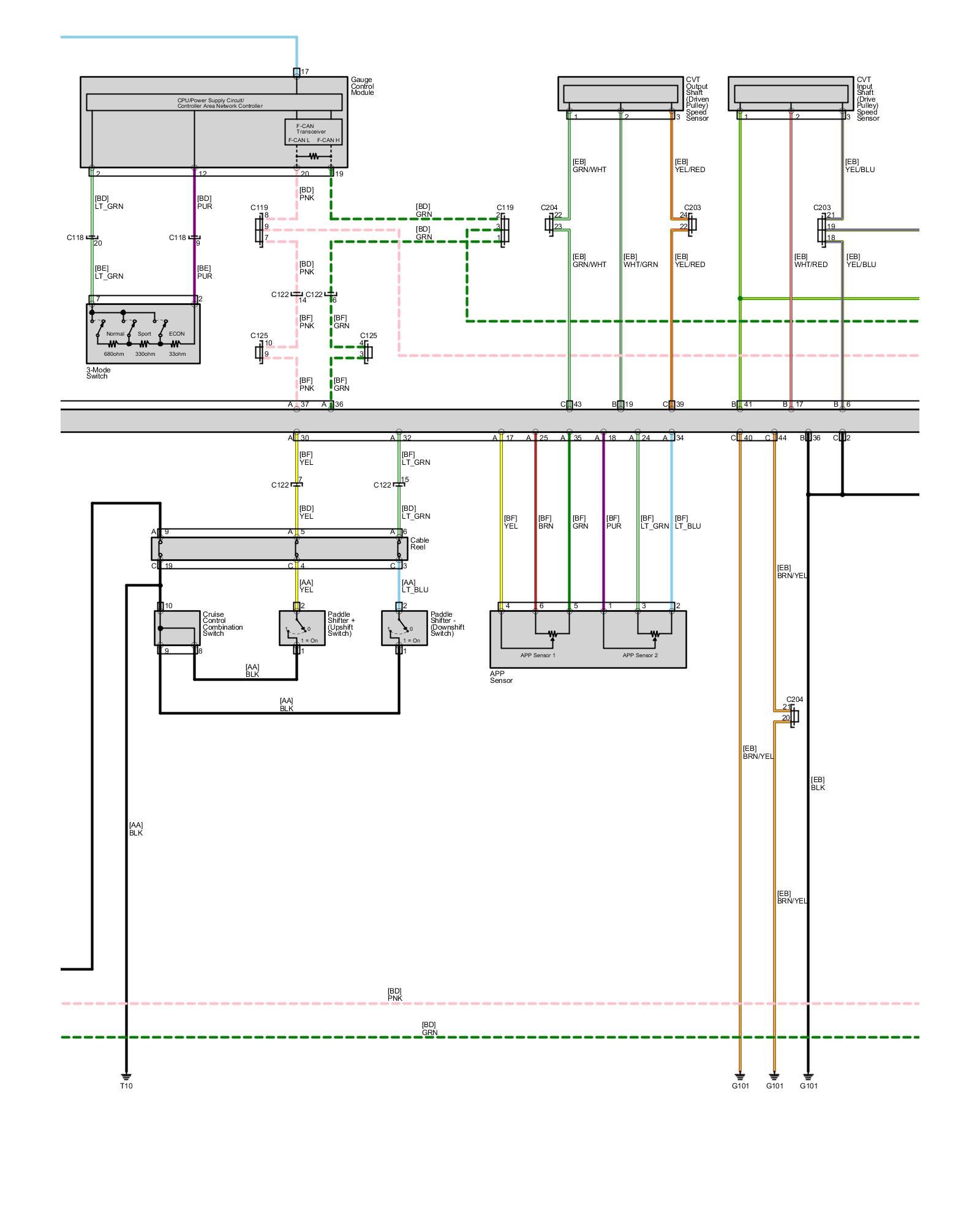

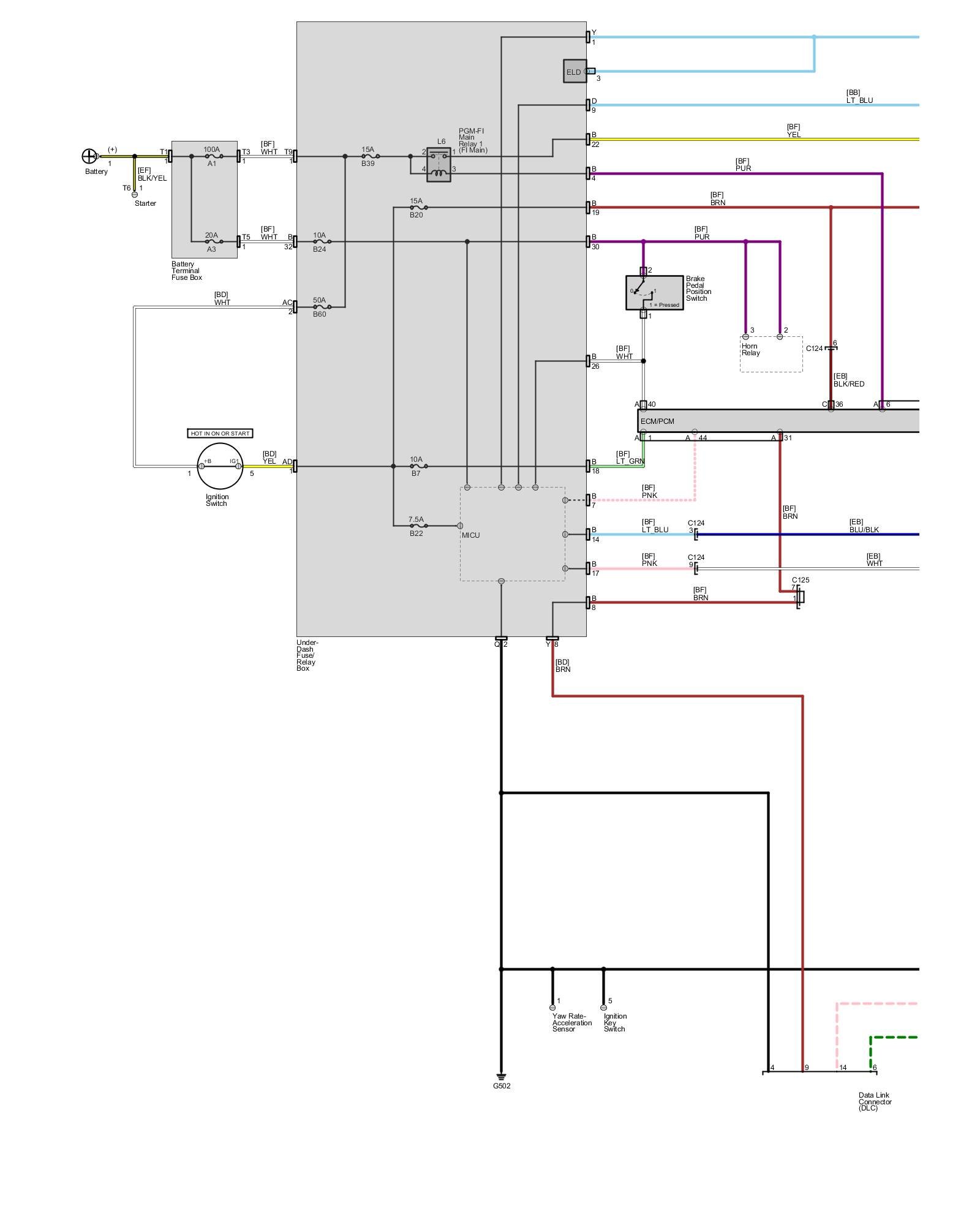

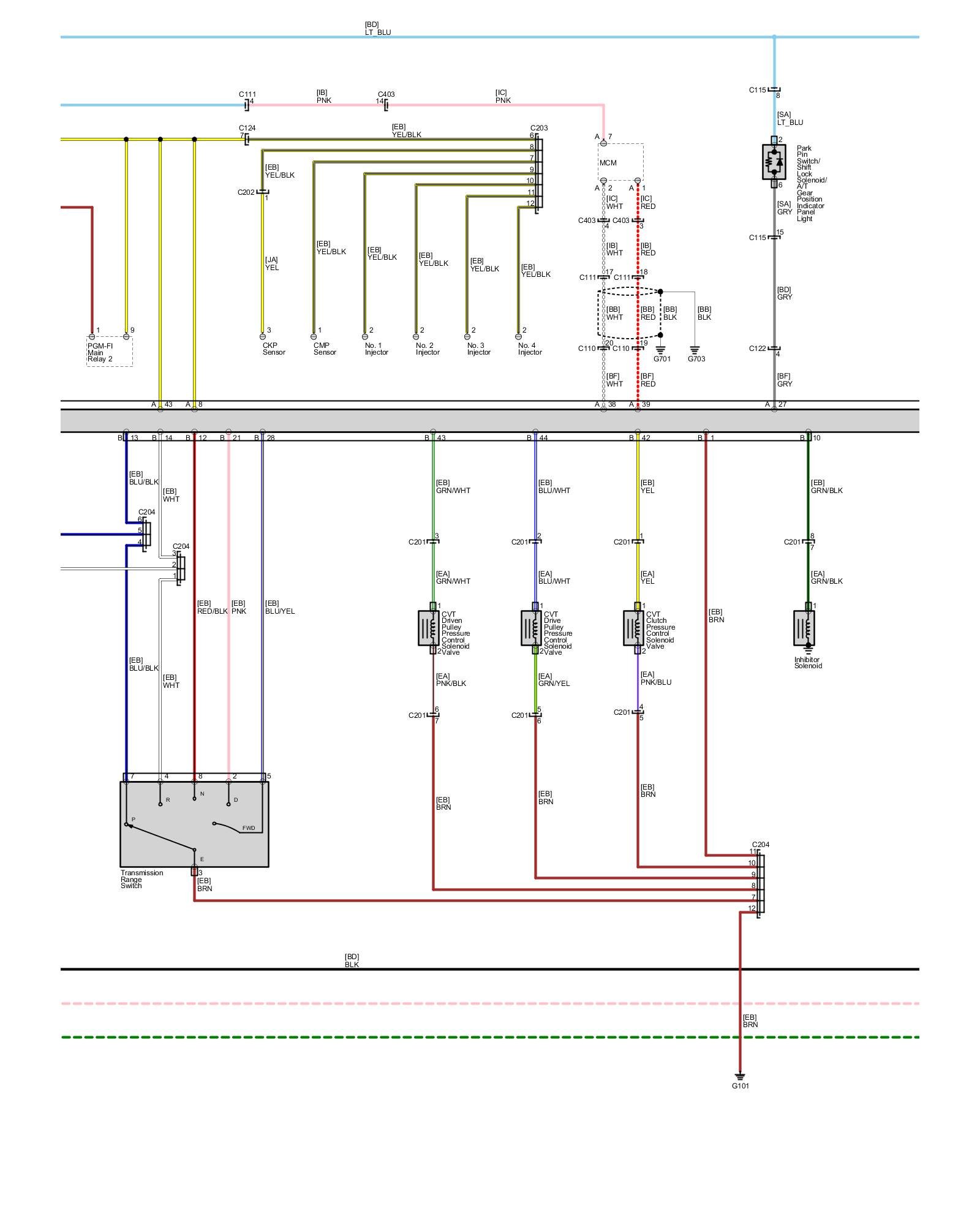

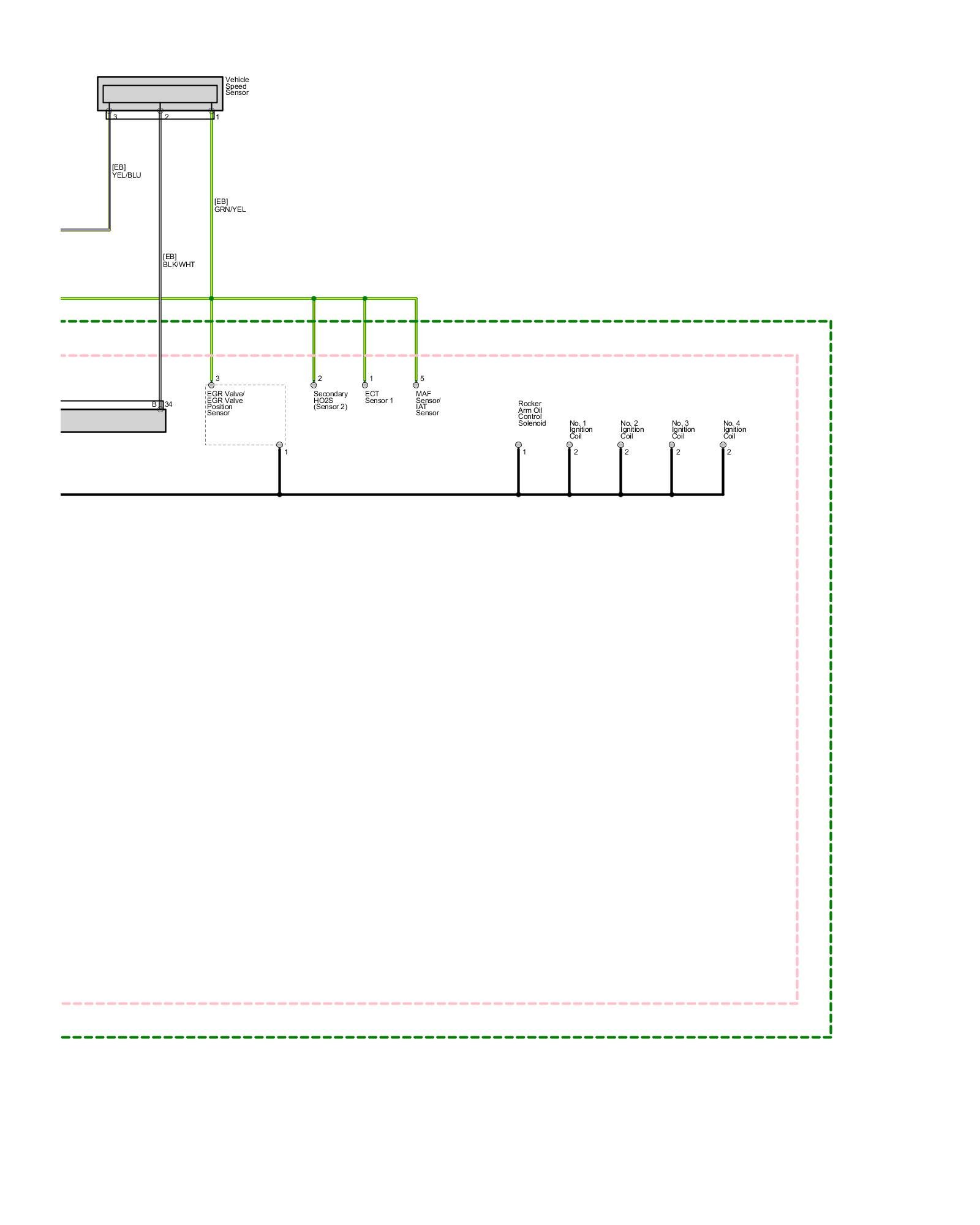

Transaxle - CVT Control System

KC Canada Emissions, 2-door CR-Z, ZF1, CVT Transmission
KC Canada Emissions, 2-door CR-Z EX, ZF1, CVT Transmission with these options (FR HEATED SEAT, HID)
KC Canada Emissions, 2-door CR-Z EX, ZF1, CVT Transmission with these options (NAVIGATION, FR HEATED SEAT, HID)
KC Canada Emissions, 2-door CR-Z EX, ZF1, CVT Transmission with these options (HID)
KC Canada Emissions, 2-door CR-Z EX, ZF1, CVT Transmission with these options (NAVIGATION, HID)
