Intake Manifold Chamber Removal and Installation
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

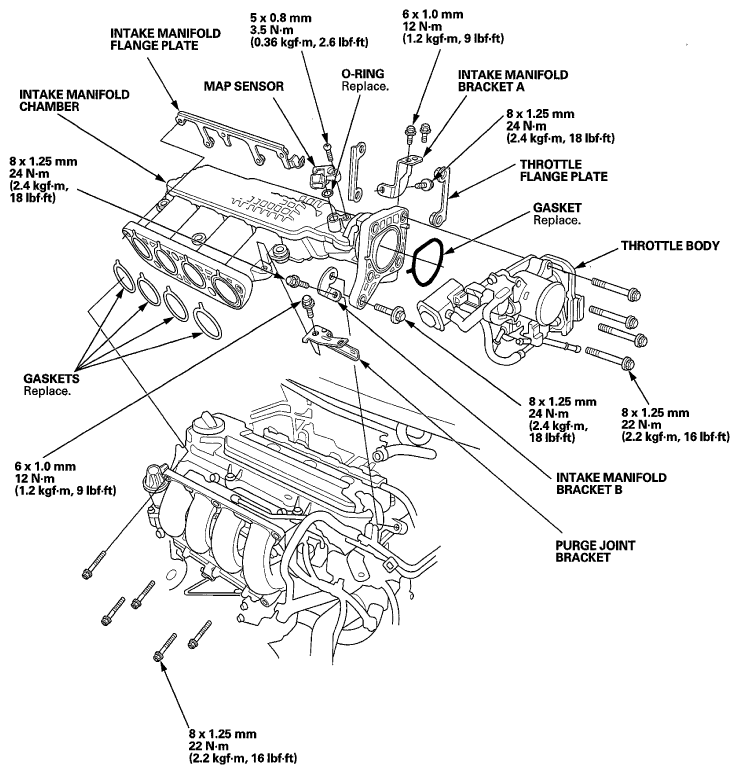

Fig 1: Exploded View Of Intake Manifold Chamber With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
