Blower Unit Removal/Installation

Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ) and the glove box (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area shown, and discard it.

Fig 1: Cutting Plastic Cross Brace In Glove Box Opening With Diagonal Cutters
Courtesy of AMERICAN HONDA MOTOR CO., INC.

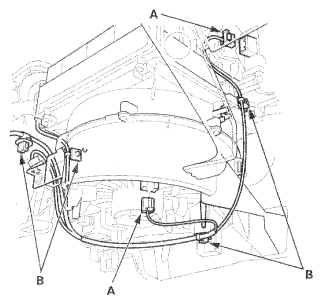

Disconnect these connectors (A) from the blower motor and the recirculation control motor. Remove the wire harness clips (B).

Fig 2: Identifying Blower Motor Connectors And Wire Harness Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the self-tapping screws and the duct (A).

Fig 3: Identifying Duct With Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

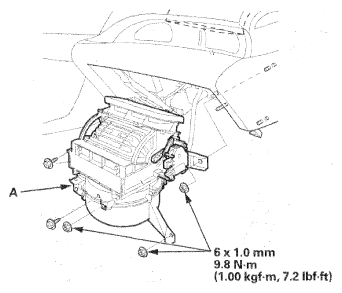

Remove the self-tapping screws, the mounting nuts, and the blower unit (A).

Fig 4: Blower Unit With Screws And Mounting Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. Make sure that there is no air leakage.
