Component Location Index

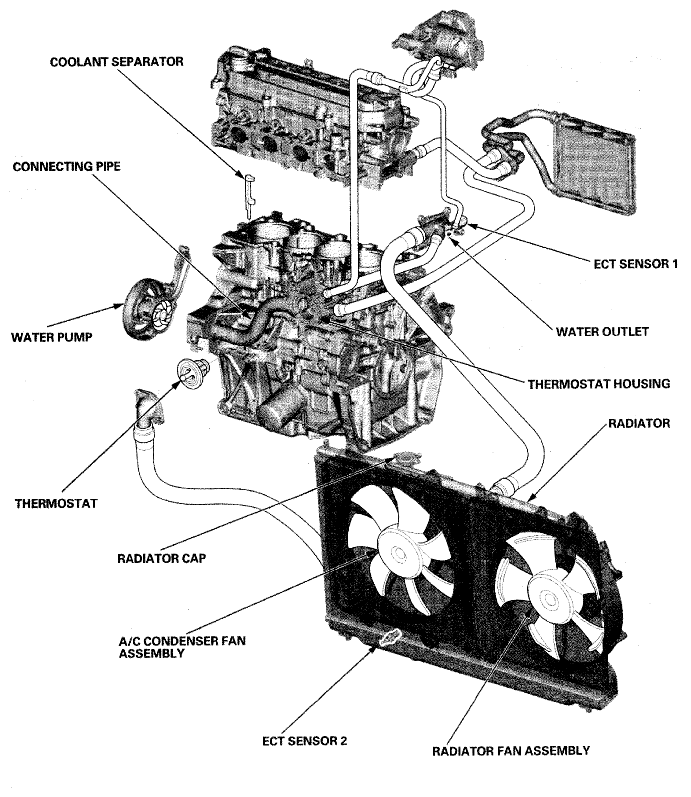

Fig 1: Identifying Cooling System Components (1 Of 2)
G06949634Courtesy of AMERICAN HONDA MOTOR CO., INC.

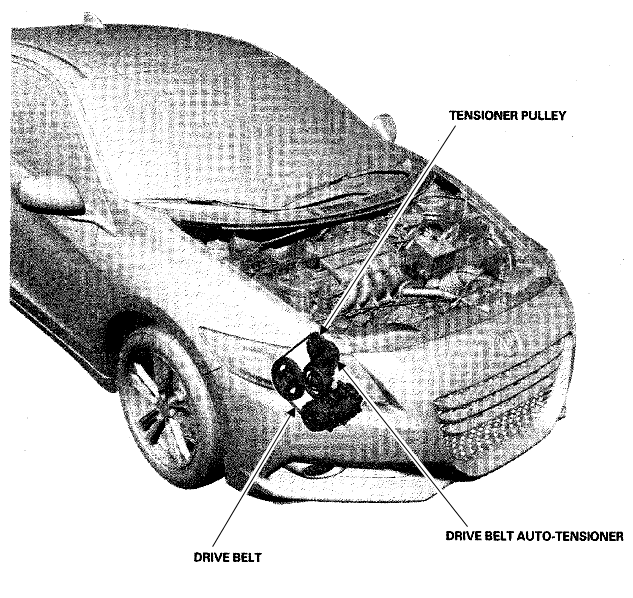

Fig 2: Identifying Cooling System Components (2 Of 2)
G06949635Courtesy of AMERICAN HONDA MOTOR CO., INC.
