Canada models

  1. Remove the front bumper center upper beam (see FRONT BUMPER CENTER UPPER BEAM REPLACEMENT ).
  2. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove the washer fluid level switch (A) from the washer reservoir.
    NOTE: Fluid may flow out of the opening.

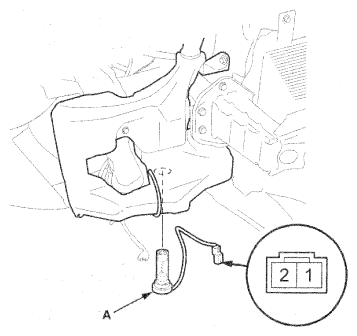

    Fig 1: Identifying Washer Fluid Level Switch Terminals
    G06954085Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for continuity between terminals No. 1 and No. 2 in each float position.
    • There should be continuity when the float is down.
    • There should be no continuity when the float is up.
  5. If the continuity is not as specified, replace the switch.
