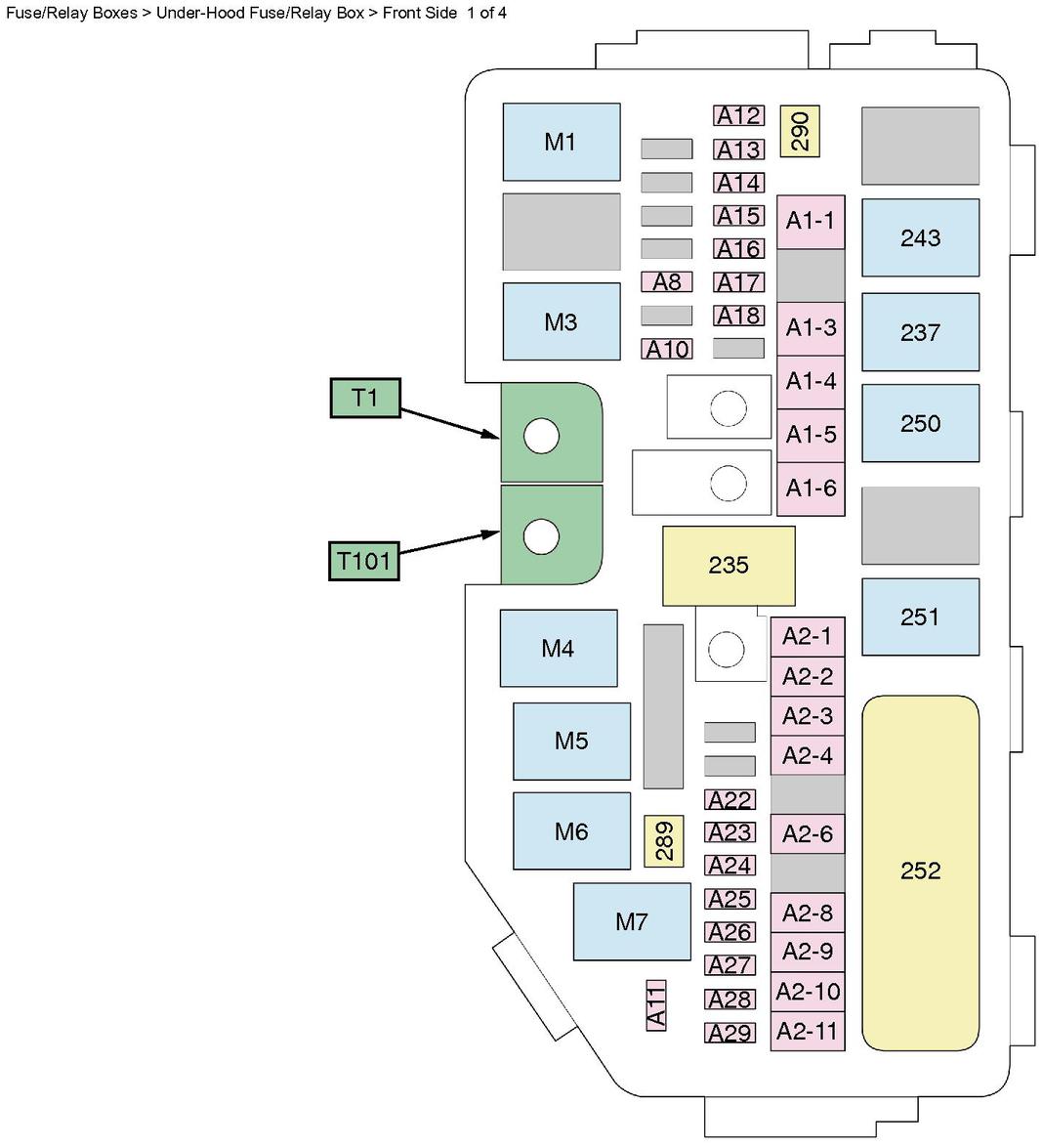

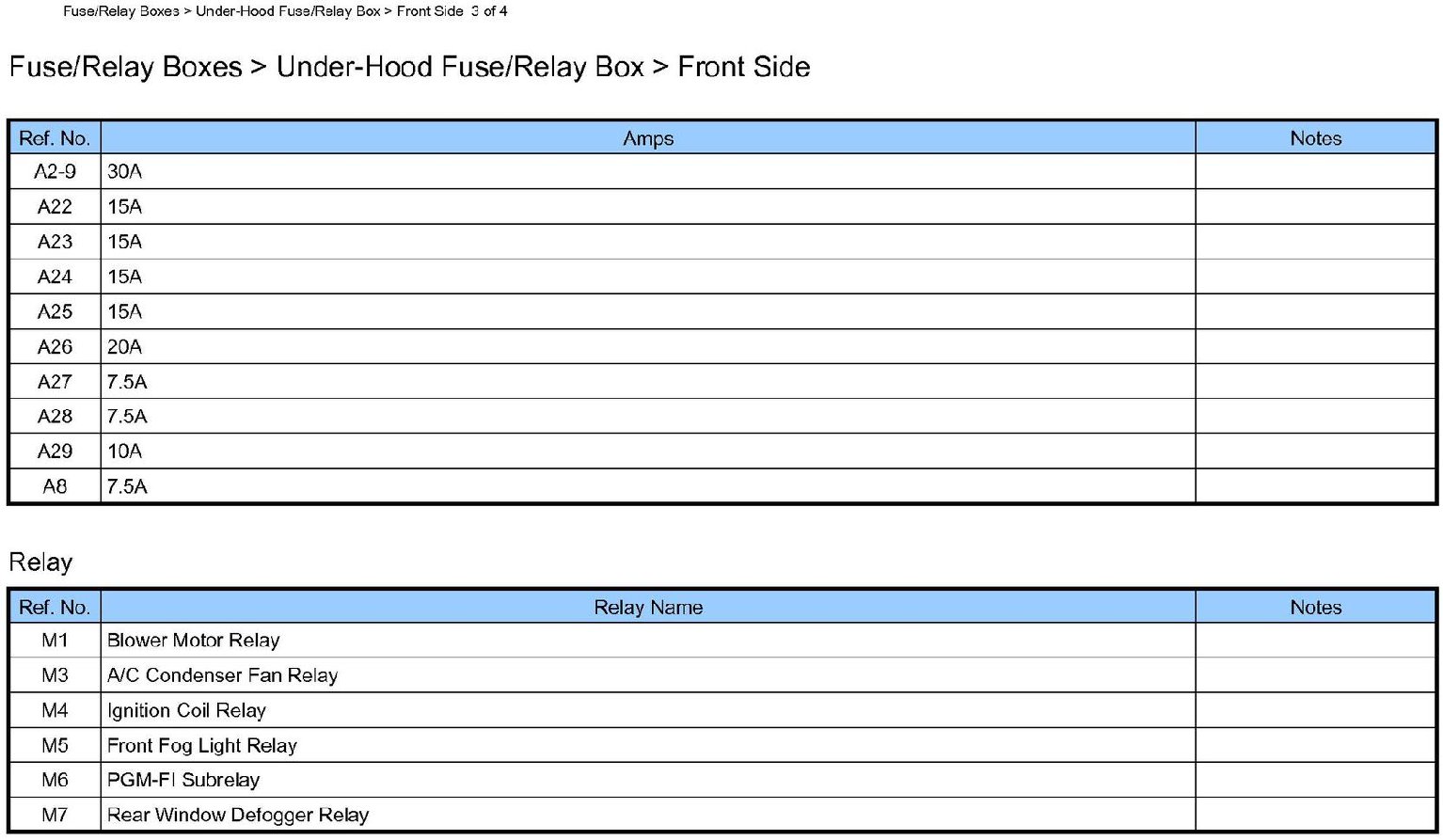

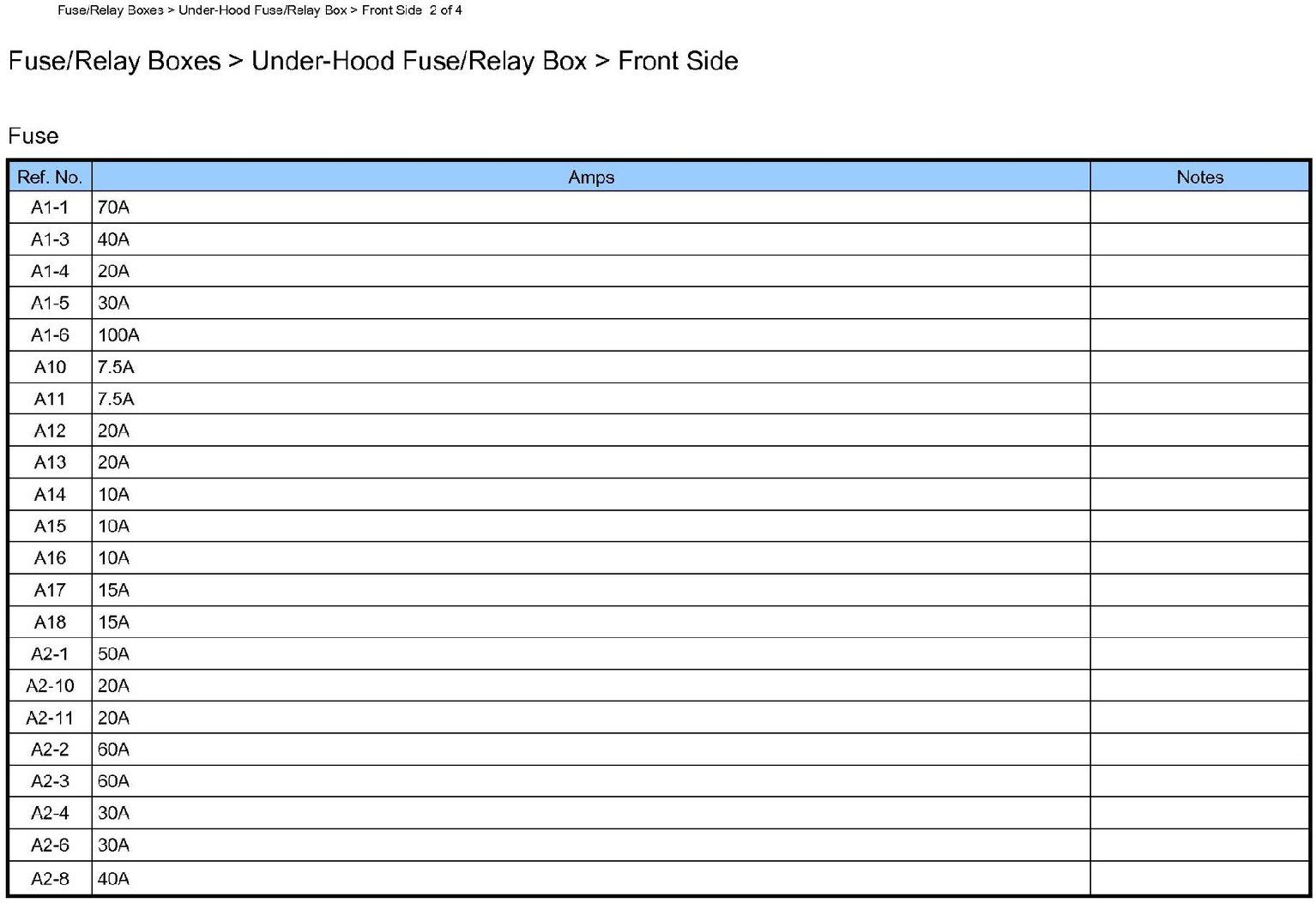

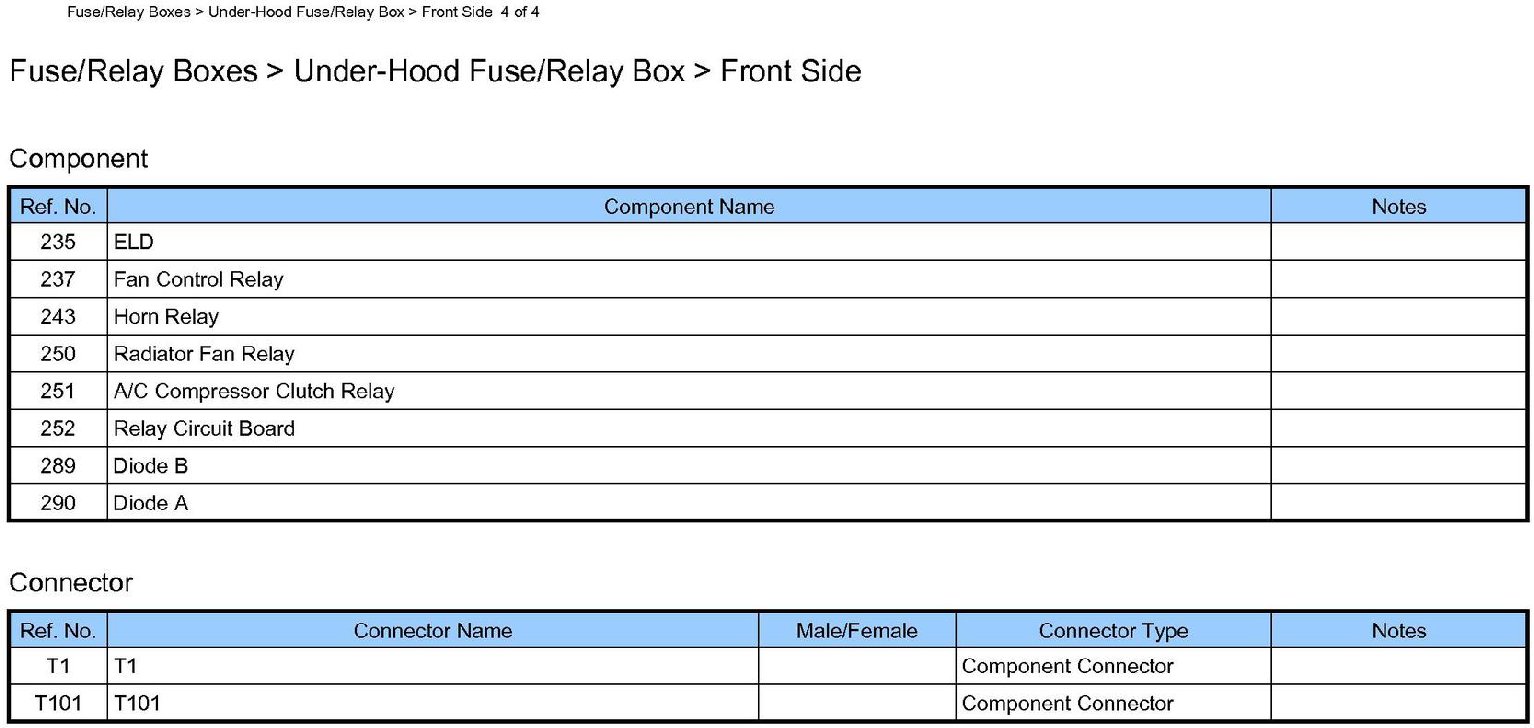

Fuse/Relay Boxes Locations Under-Hood Fuse/Relay Box - Back Side
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Fuse/Relay Boxes Locations Under-Hood Fuse/Relay Box - Back Side
