Home >> Honda >> 2012 >> CR-V 4WD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Fuse/Relay Boxes Locations Under-Dash Fuse/Relay Box - Back Side
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

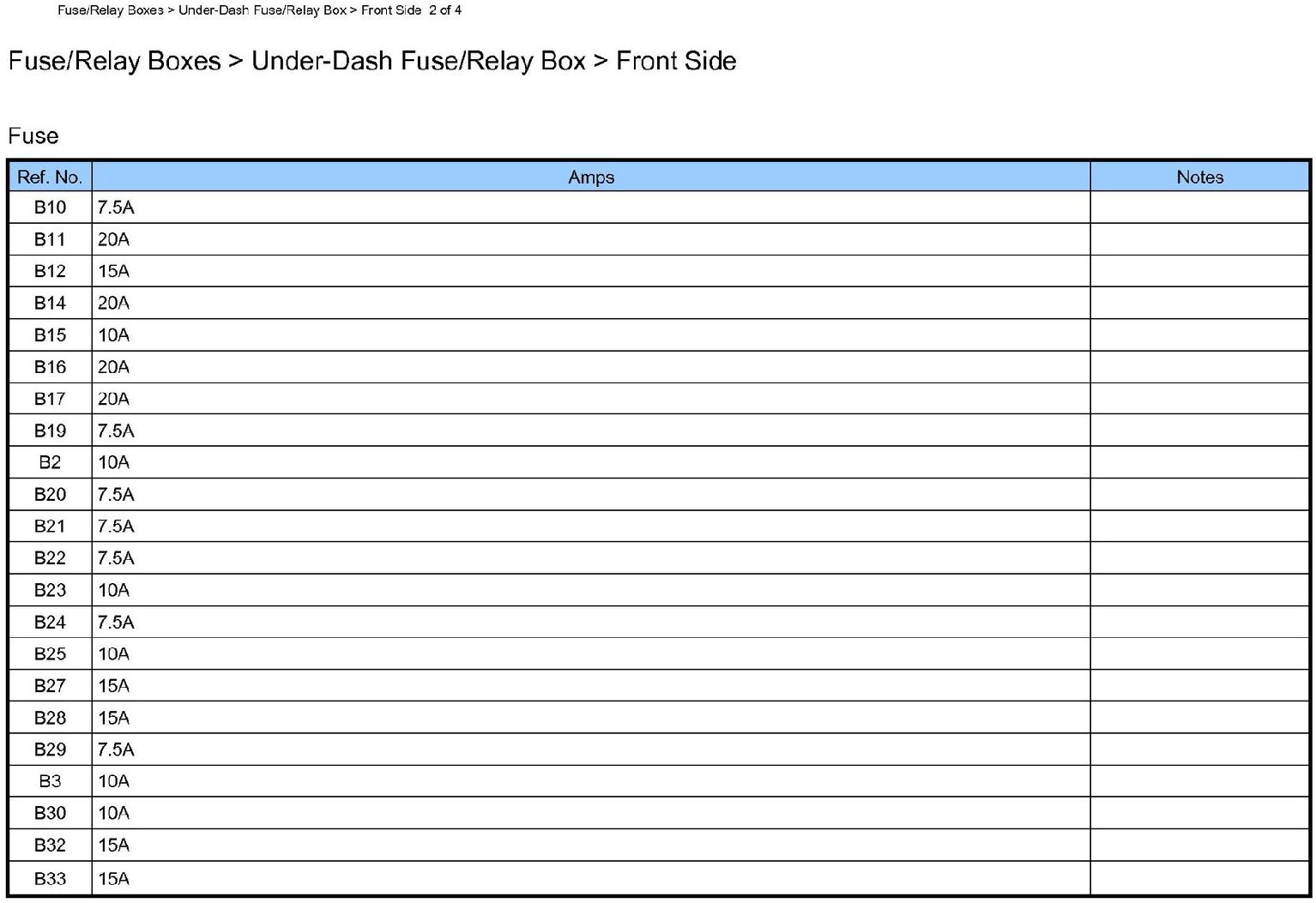

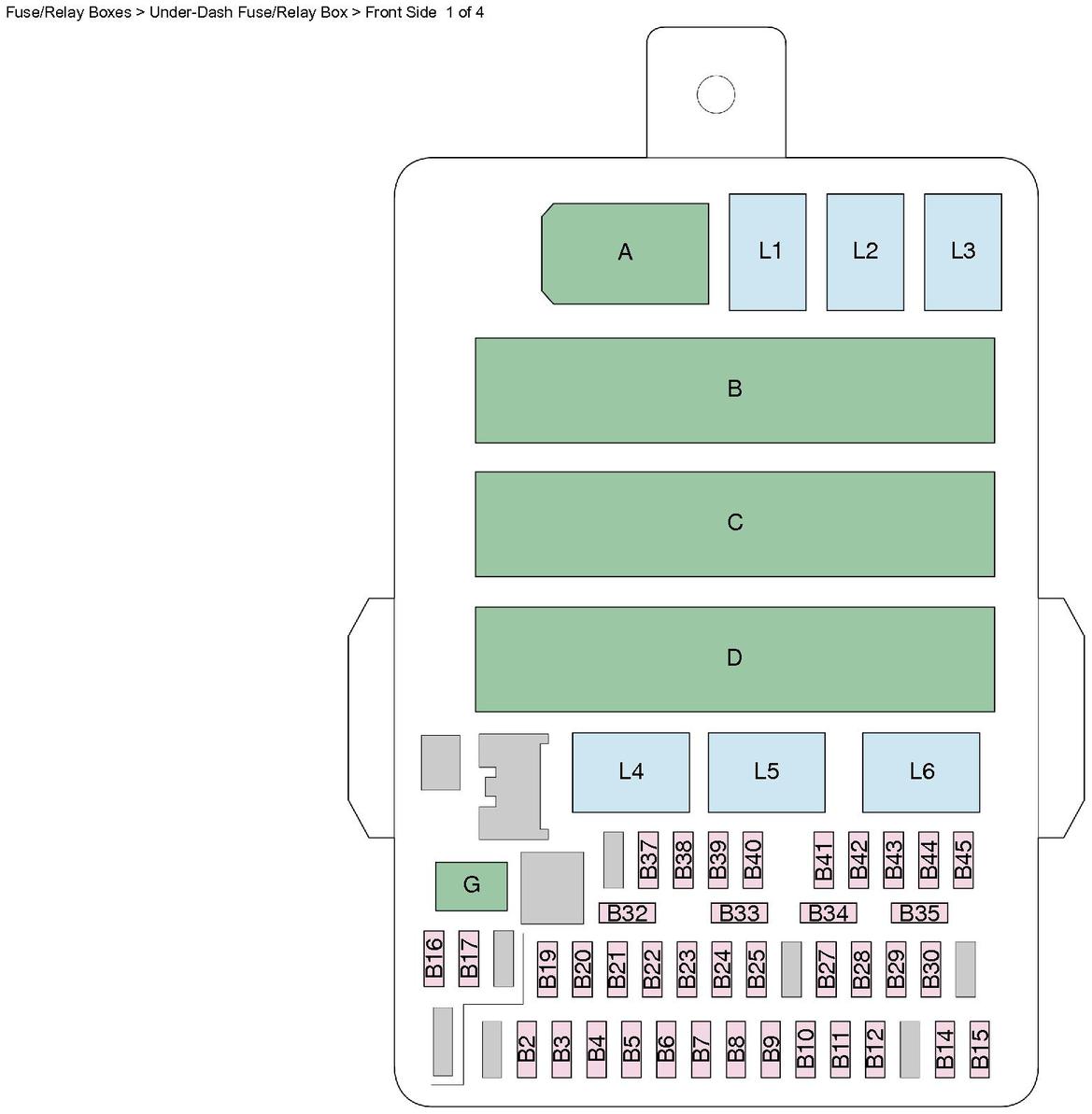

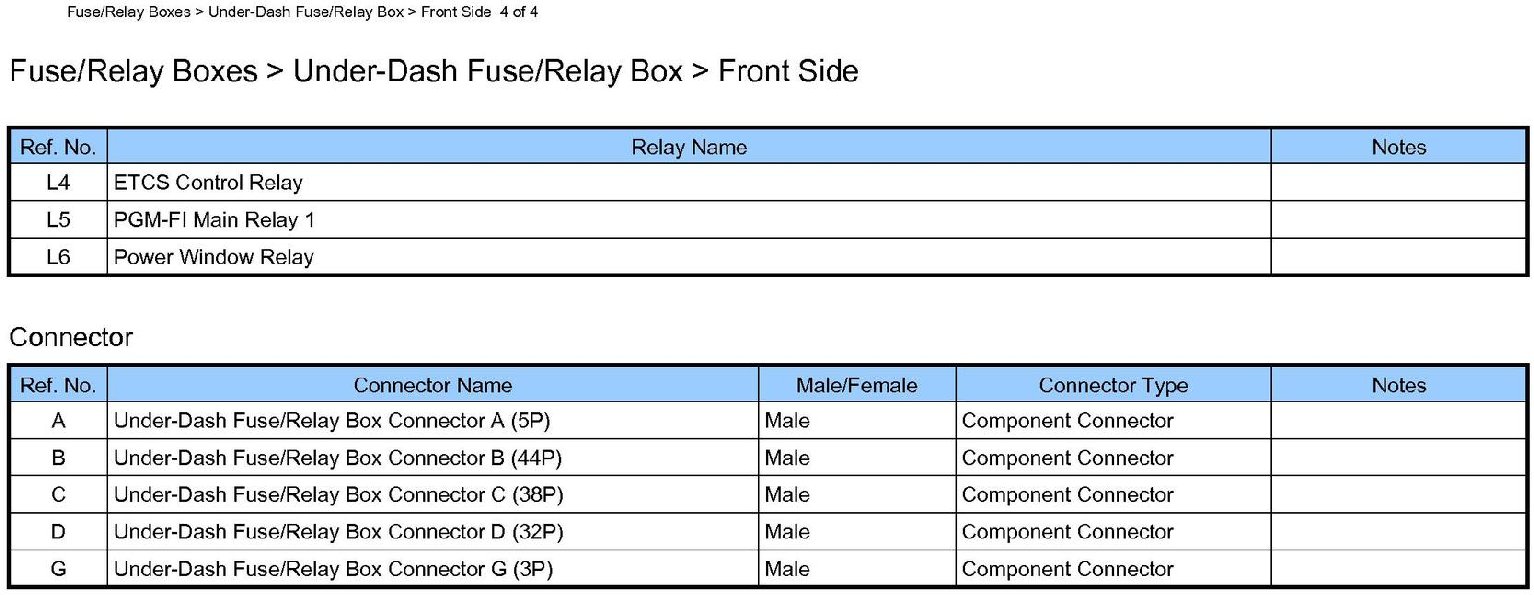

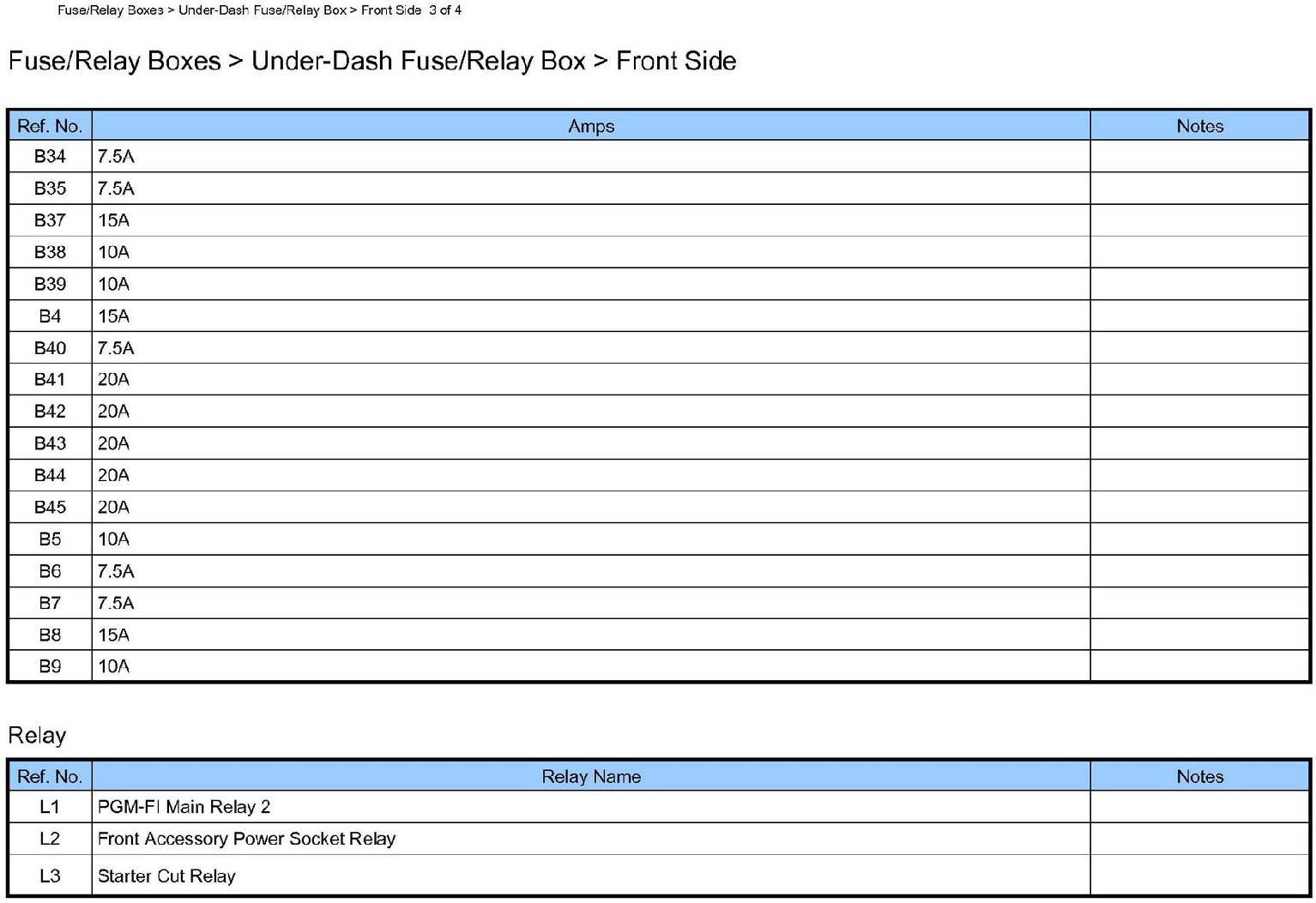

Fuse/Relay Boxes Locations Under-Dash Fuse/Relay Box - Back Side
