Tire Pressure Module: Testing and Inspection




Suspension

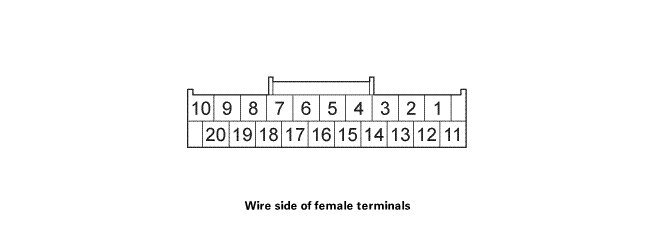

TPMS Control Unit Connector for Inputs and Outputs

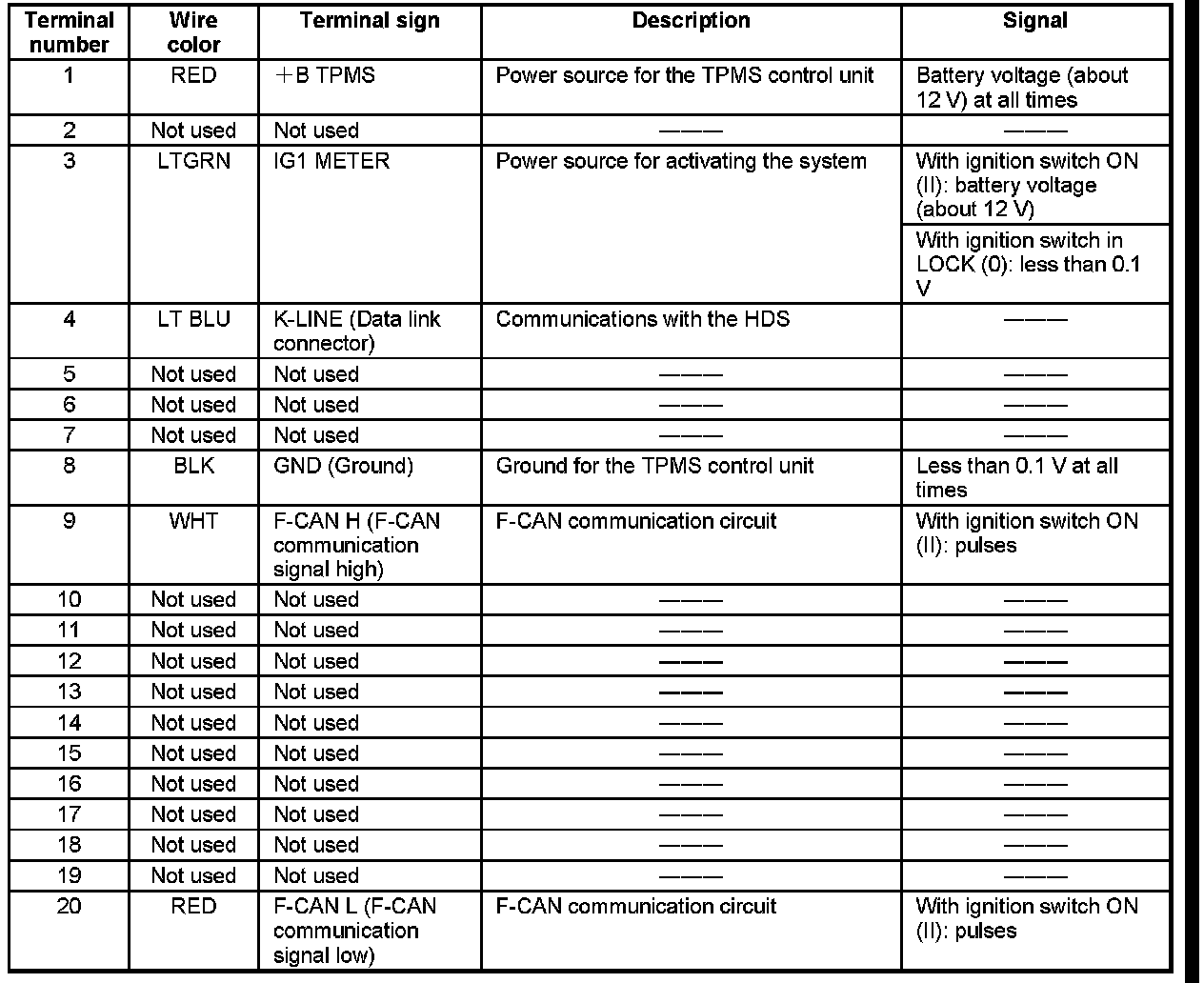

TPMS Control Unit Inputs and Outputs for 20P Connector
