Sound Proofing / Insulation: Service and Repair

Floor Insulators

Insulator Locations

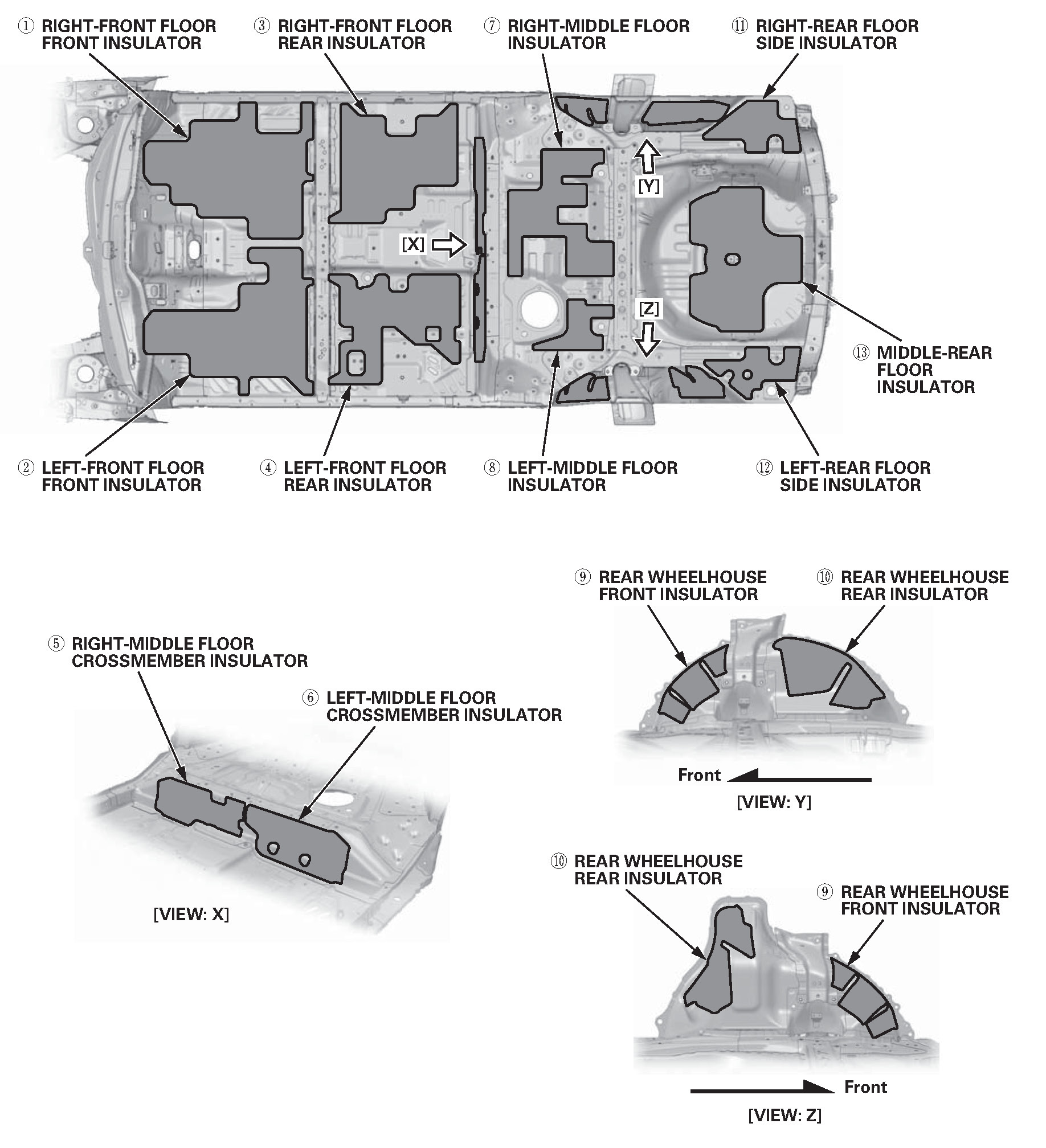

Except USA produced model

Cut new insulators, and apply them in areas indicated in this illustration.

NOTE: Before applying, clean and degrease the floor.

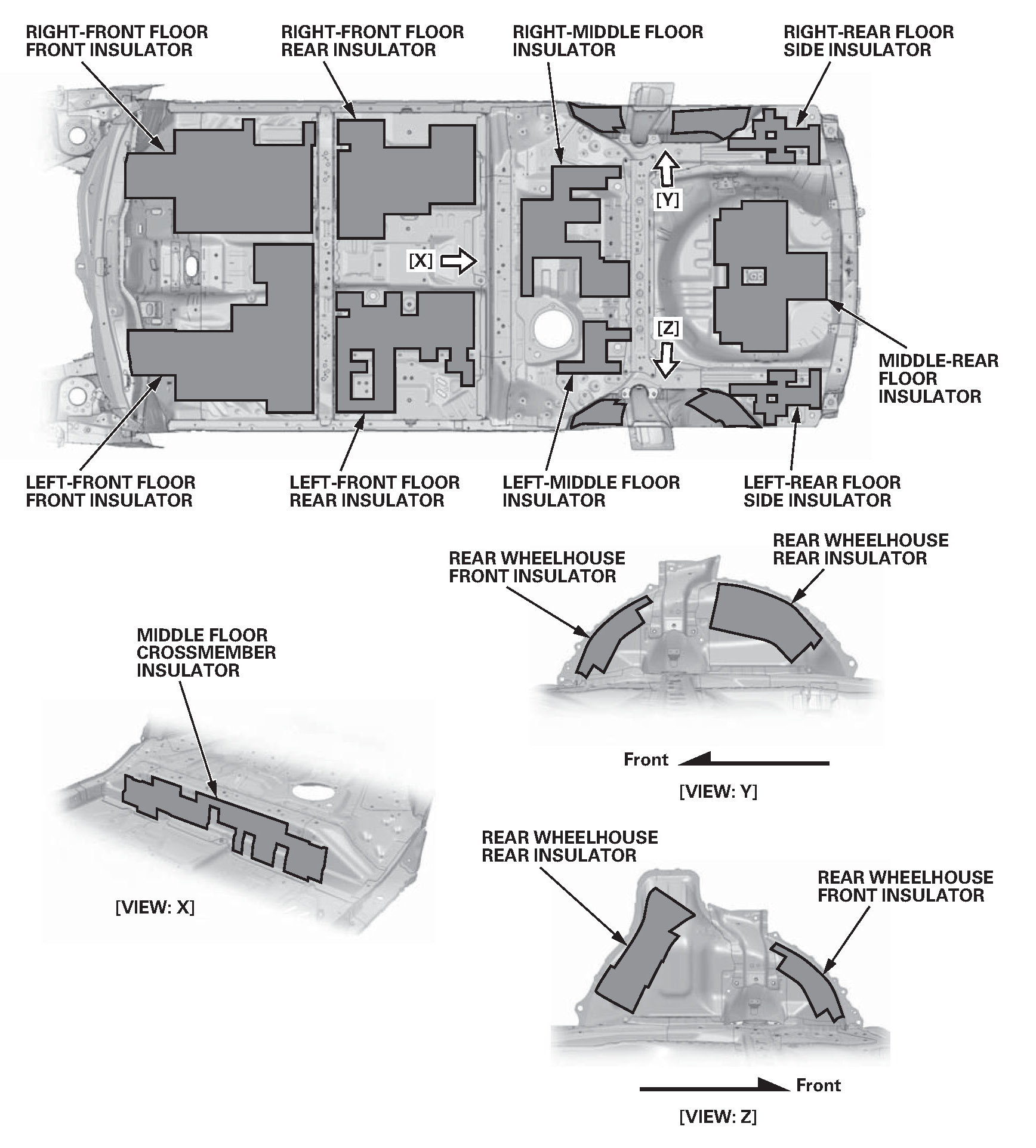

USA produced model

Apply sealer which has soundproof and vibration-proof properties in areas indicated in this illustration.

NOTE: Before applying, clean and degrease the floor.

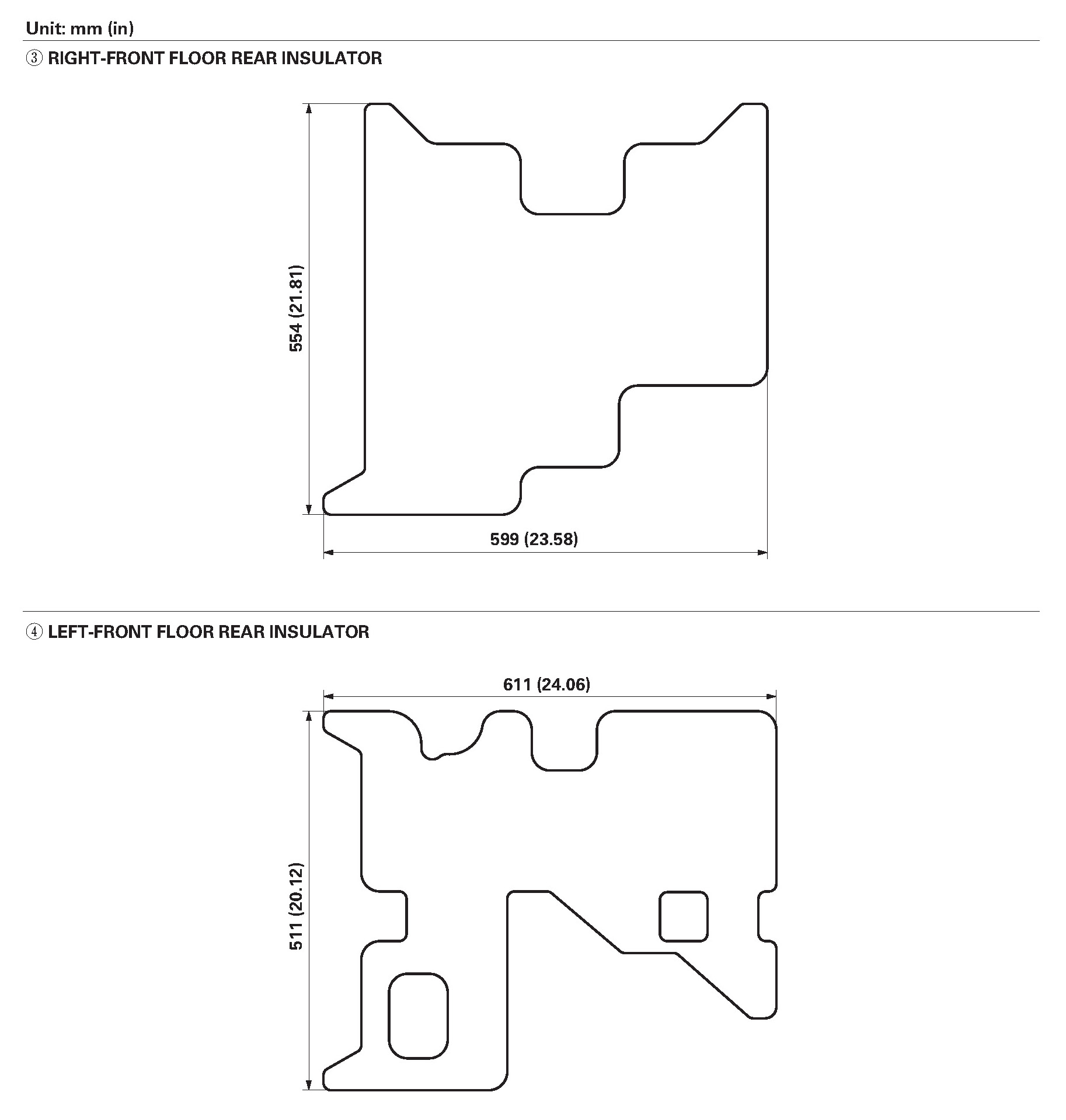

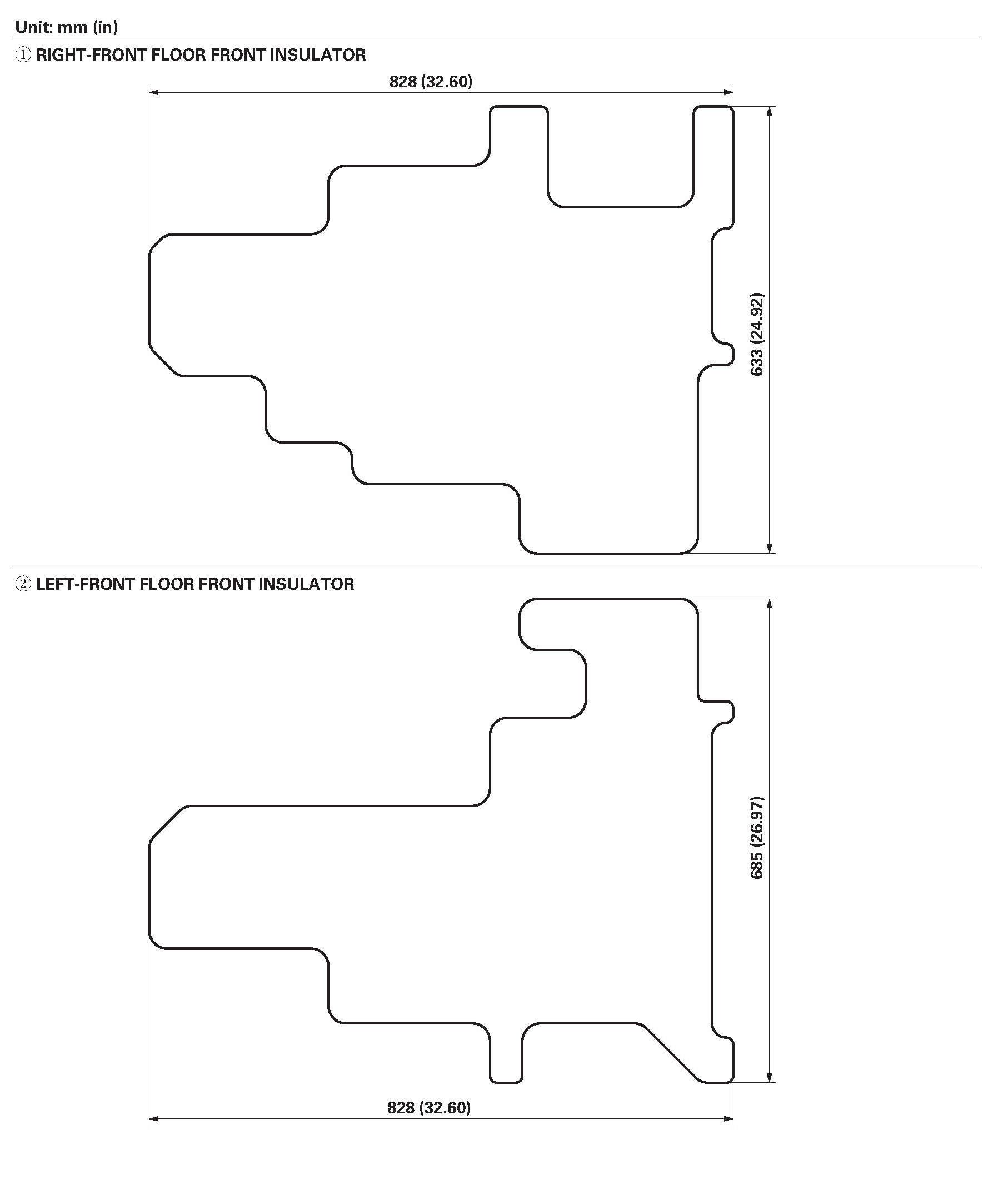

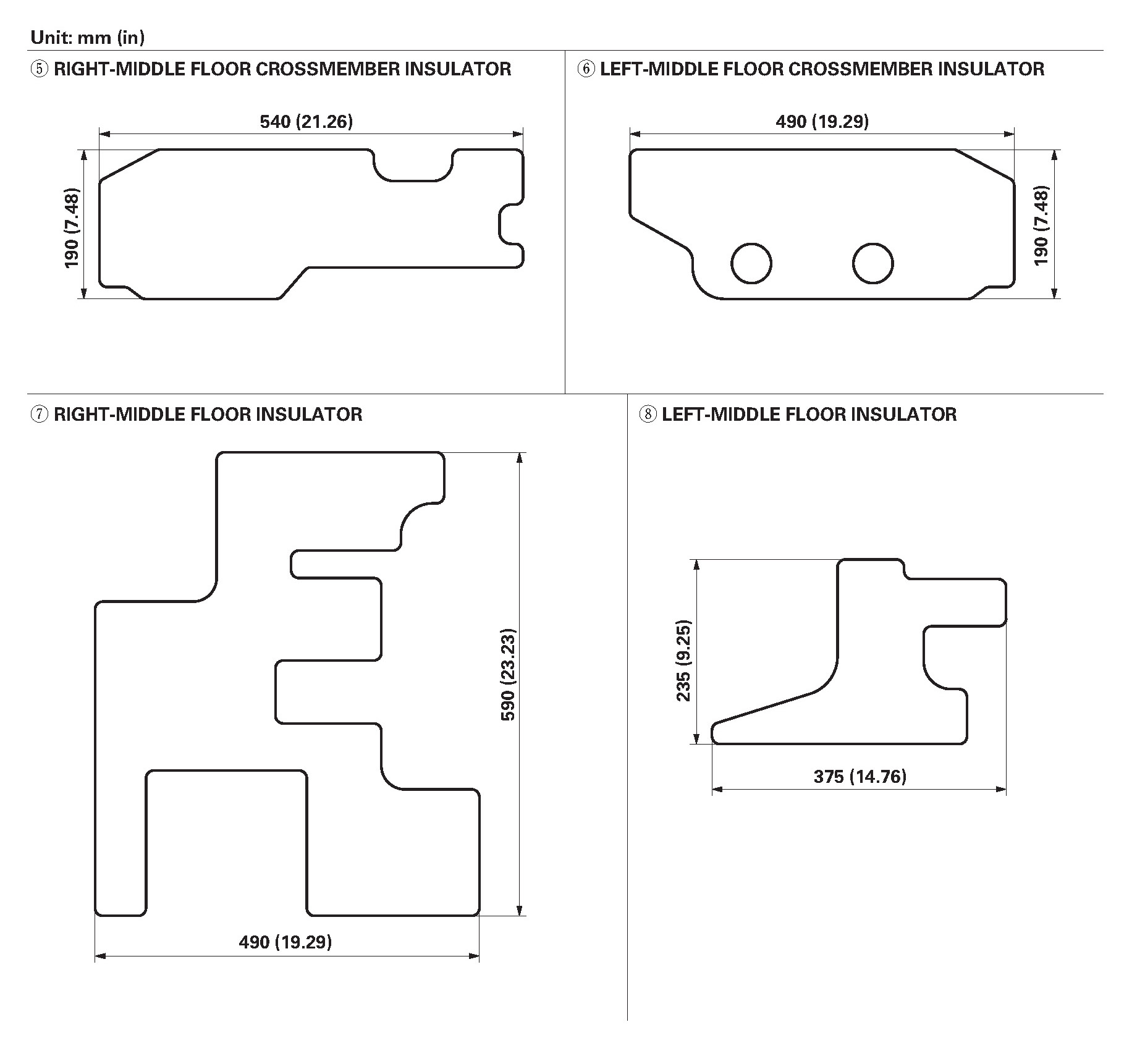

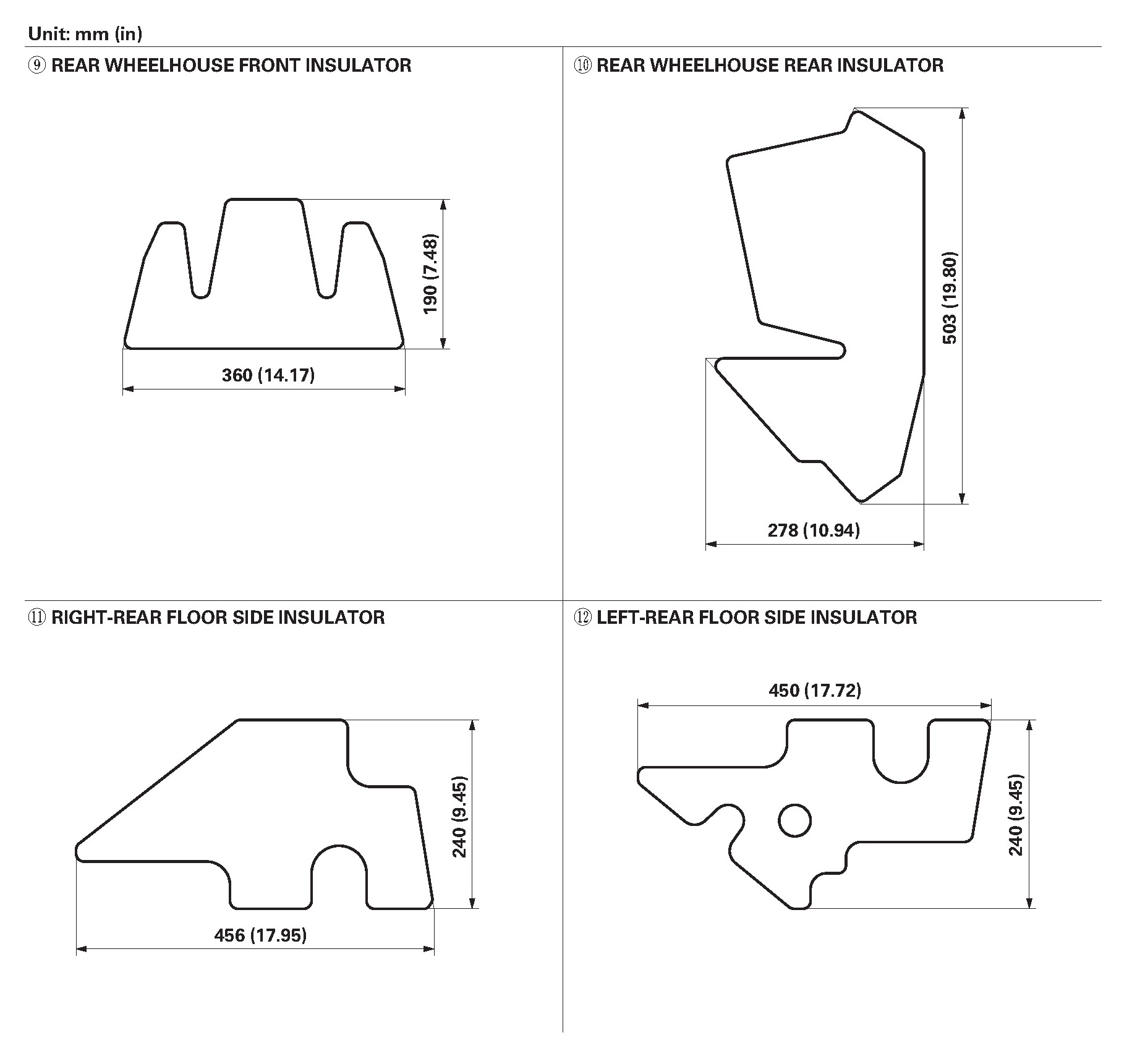

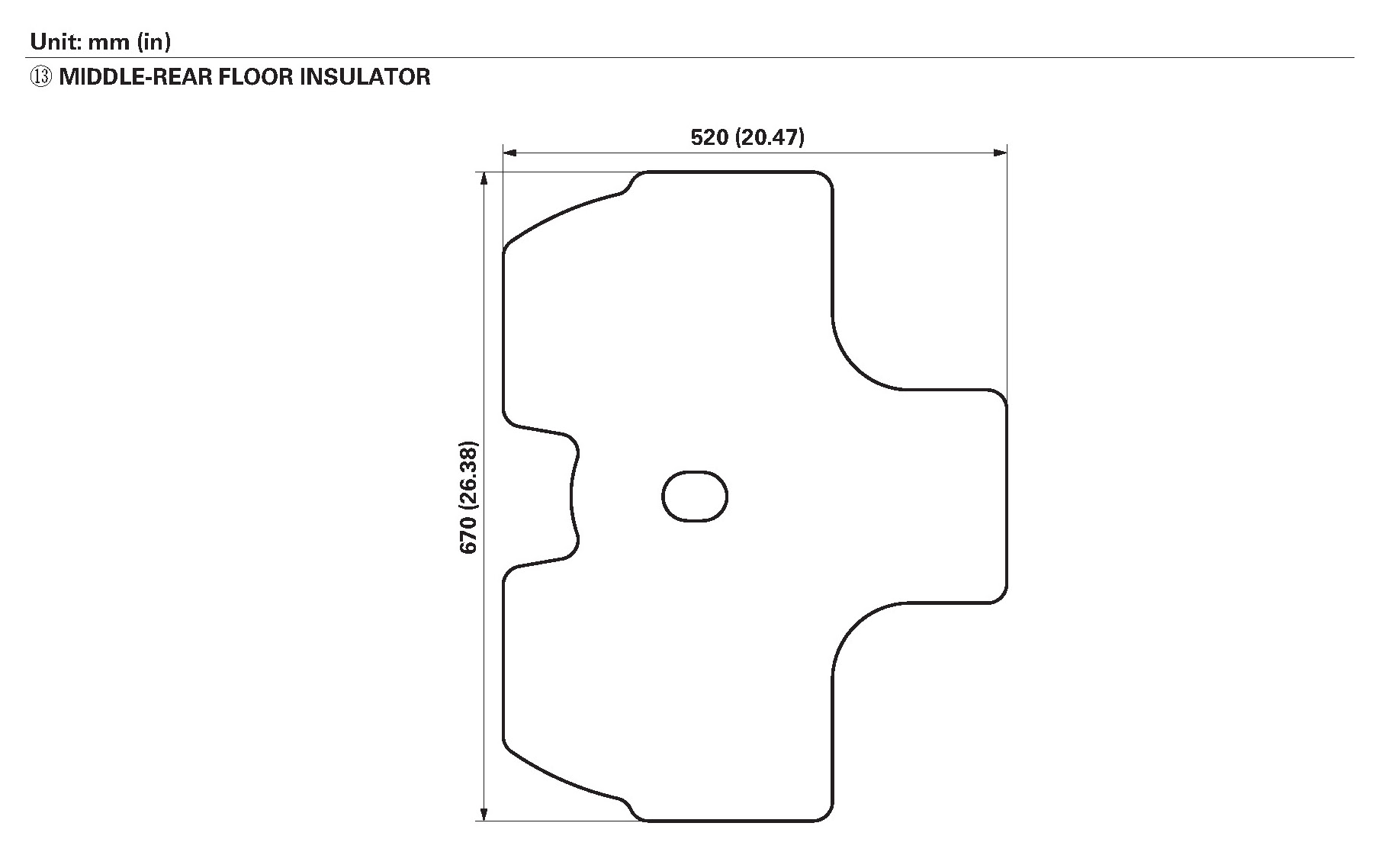

Insulator Sizes
