Entertainment System Control Panel: Service and Repair

Rear Controller and Screen Removal and Installation

Removal

1. Rear Display Cover

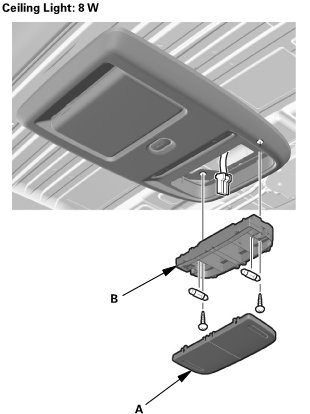

1. Turn the ceiling light switch OFF.

2. Carefully pry off the lenses (A) with a flat-tip screwdriver.

3. Remove the ceiling light (B).

4. Disconnect the connector.

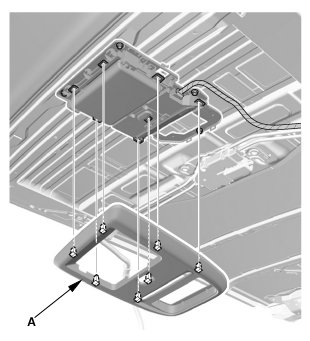

5. Remove the rear display cover (A).

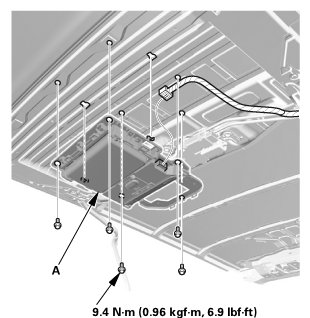

2. Rear Controller and Screen





1. Disconnect the connector.

2. Remove the rear controller and screen (A).

Installation

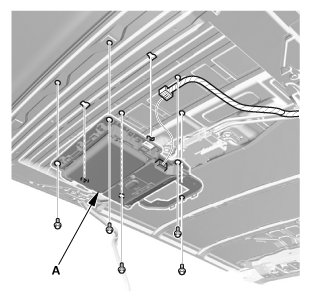

1. Rear Controller and Screen





1. Install the rear controller and screen (A).

2. Connect the connector.

2. Rear Display Cover





1. Install the rear display cover (A).





2. Connect the connector.

3. Install the ceiling light (B).

4. Carefully install the lenses (C).
