Exterior Parts Removal/Installation

Exterior Parts Removal/Installation

NOTE:

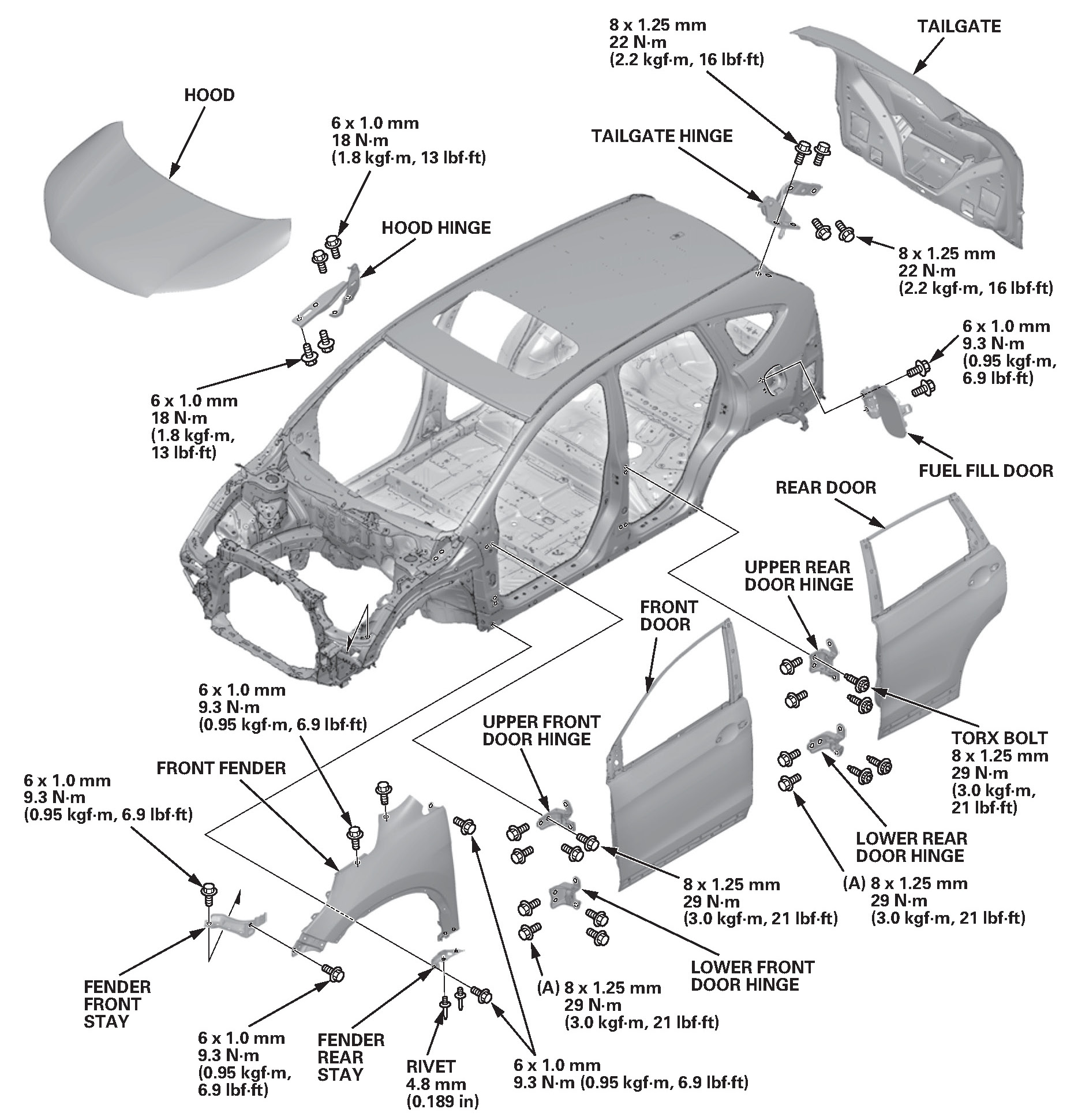

- When adjusting the door in or out, replace the mounting bolts (A); refer to the appropriate Parts Catalog for the necessary adjusting bolts.
- Apply spot sealer to the mating surfaces, then install the front fenders, the hood, the doors, the tailgate, and the hinges.
- Check the hood, the doors, and the tailgate positions; refer to the external parts fitting positions.
- Apply sealant around the tailgate hinges.
