Instrument Panel Control Module: Locations

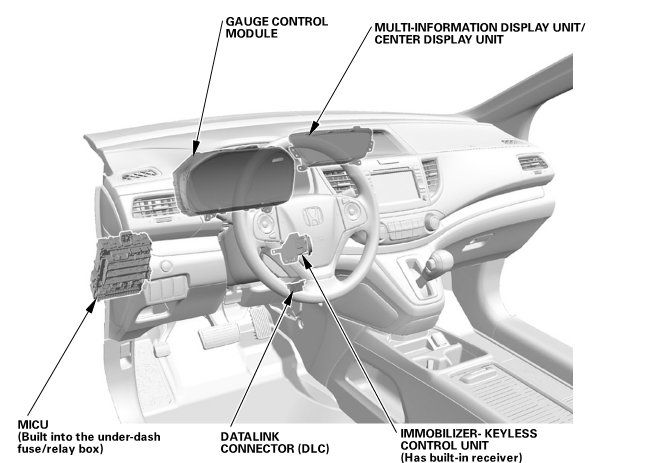

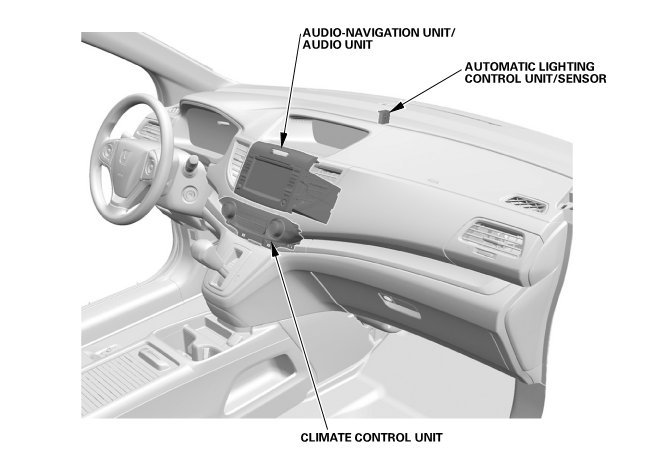

Multiplex Integrated Control System Component Location Index
